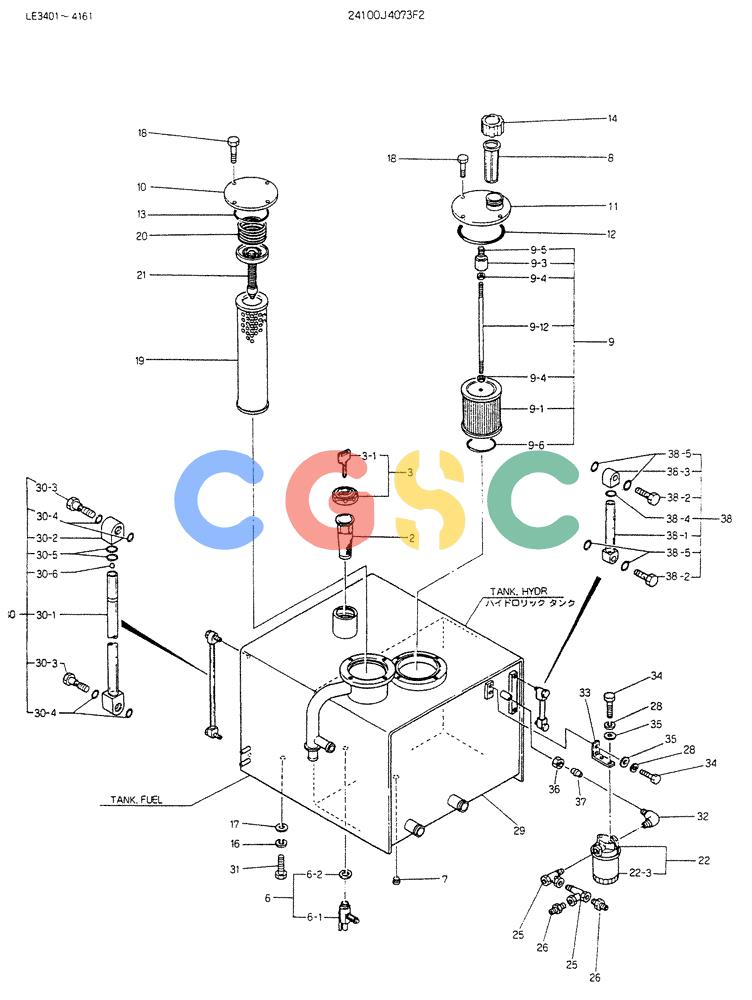

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (01-008) - TANK ASSY, P/N 24100J4073F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
326 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4073F2 | [1] | TANK ASSY | |
| 2. | R36T0006 | [1] | STRAINER ELEMENT | KOB |
| 3. | 2414Z197D3 | [1] | FILLER CAP | KOB |
| 3-1. | 2420Z754 | [1] | KEY | KOB |
| 6. | 2436R241F1 | [1] | COCK | KOB Superseded by part number: LC20P01028P1 |
| 6-1. | B14N0094E13 | [1] | COCK | KOB Superseded by part number: LC20P01028P1M |
| 6-2. | B14N0094E14 | [1] | PACKING | KOB |
| 7. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 8. | 2446R133 | [1] | STRAINER ELEMENT | KOB |
| 9. | 2446R116F9 | [1] | STRAINER | |
| 9-1. | 2446R116E1 | [1] | STRAINER ELEMENT | KOB Superseded by part number: 2446R116F3, 77259136 |
| 9-3. | 2446R110S2 | [1] | HOLDER | KOB |
| 9-4. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 9-5. | 2446R110S6 | [1] | SPRING | KOB |
| 9-6. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 9-12. | 2446R116S12 | [1] | BOLT | |
| 10. | 2418T4572D1 | [1] | FLANGE | KOB |
| 11. | 2418P6988C2 | [1] | FLANGE | KOB |
| 12. | ZD11G16500 | [1] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 13. | ZD11P13000 | [1] | O-RING | KOBID 129.6 ± 1.05 x OD 140mm |
| 14. | 2446R162F1 | [1] | BREATHER | KOB |
| 16. | ZW26X16000 | [4] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 17. | R16T0152D2 | [4] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 18. | ZM11C12025 | [8] | SCREW | KOBM12x1.75x25mm (Incls. Lockwasher) Superseded by part number: ZM12C12025 |
| 19. | 2446R147 | [1] | ELEMENT | KOB Superseded by part number: 24046Z15P |
| 20. | 2446U119S2 | [1] | SPRING | KOB |
| 21. | 2446U119S3 | [1] | VALVE | KOB |
| 22. | 2446U175F1 | [1] | FILTER | KOB |
| 22-3. | 2446U175S3 | [1] | SPARE PART | HITCARTRIDGE Superseded by part number: 2446U215S5P |
| 25. | R44T0224D1 | [2] | TEE | KOB, Serial Range: LE3401-LE3814 |
| 26. | ZH22Z08000 | [2] | HYD CONNECTOR | KOB1/2"PTx1/2"PFx48mm Long, Start Serial: LE3815 |
| 2R. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 29. | 2427J1252 | [1] | TANK ASSY | |
| 30. | 2489R221F1 | [1] | PORTABLE LAMP | KOB |
| 30-1. | 2489R222 | [1] | PORTABLE LAMP | KOB Superseded by part number: 2489R221F1 |
| 30-2. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 30-3. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 30-4. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 30-5. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 30-6. | 2489R174S7 | [1] | FLOAT | KOB |
| 31. | ZS13C16030 | [4] | SCREW | KOBM16x2.0x30mm |
| 3?. | ZF33E22008 | [1] | ELBOW, 90 | ELBOW, 90 |
| 33. | 2427T826 | [1] | PLATE | KOB |
| 34. | ZS16C08018 | [4] | SCREW | KOBM08x1.25x18mm Superseded by part number: ZS18C08020 |
| 35. | ZW11X08000 | [4] | WASHER | KOBID 09 x OD 17 x Th 1.6mm Superseded by part number: ZW16X08000 |
| 36. | ZF93N22000 | [1] | NUT | KOB |
| 37. | ZF93S22000 | [1] | FERRULE | KOB |
| 38. | 2489R173F1 | [1] | PORTABLE LAMP | KOB |
| 38-1. | 2489R173S1 | [1] | GAUGE | KOB |
| 38-2. | 2489R173S2 | [2] | BOLT | BOLT |
| 38-3. | 2489R173S3 | [2] | SHORT ENGINE | KOBSHORT ENGINE |
| 38-4. | ZD11P01800 | [2] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 38-5. | ZD11P01400 | [4] | O-RING | KOBID 13.8 ± 0.19 x OD 18.6mm |
| . . | 24046Z15 | [1] | ELEMENT | KOBKIT CONSISTS OF REF KIT 13&19 Superseded by part number: 24046Z15P |
