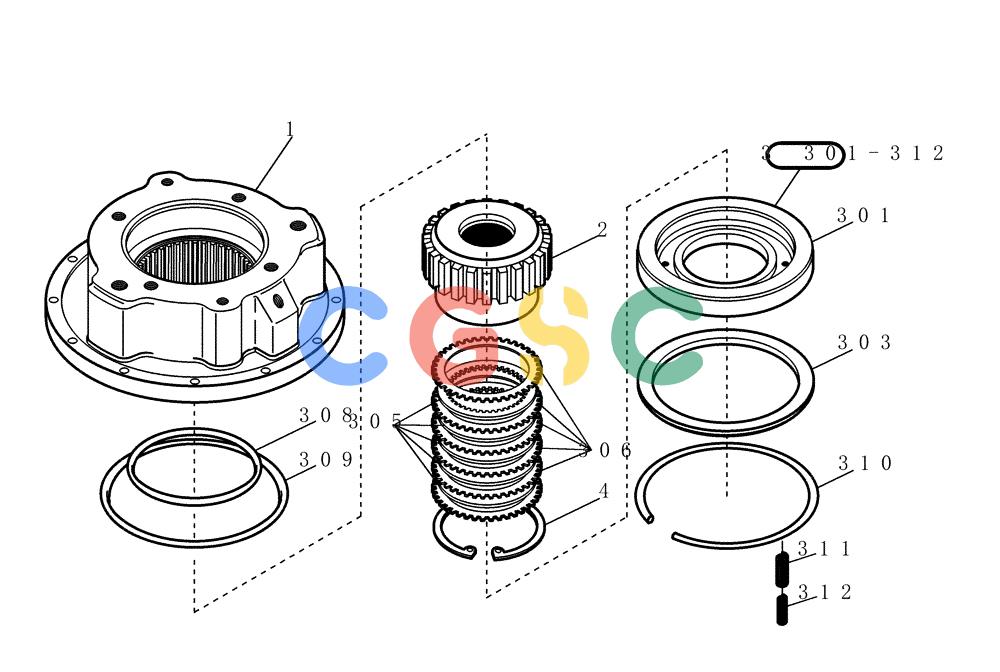

纽荷兰零件查询(EC215) - CRAWLER EXCAVATOR (11/99-) (19.400[001]) - SWING BRAKE INSTALL.MATERIAL (S/N 721501-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73170572 | [1] | HOUSING | BERHOUSING Superseded by part number: 2494184 |
| 2. | 73170573 | [1] | | BERINTERNAL CASING Superseded by part number: 2494186, 2494186, BHB73170573 |
| 3. | 73170574 | [1] | BRAKE | BERBRAKE Superseded by part number: 2494166 |
| 4. | 73188297 | [1] | SNAP RING | BERCIRCLIP Superseded by part number: 11062676 |
| 301. | 73175298 | [1] | PISTON | BERPISTON Superseded by part number: 1476418 |
| 303. | 73175299 | [1] | CYLINDER | BERCYLINDER/COVER Superseded by part number: 1476419 |
| 305. | 73172246 | [5] | DISC | BERINTERNAL DISK Superseded by part number: 1444871 |
| 306. | 73172245 | [6] | DISC | BEREXTERNAL DISK Superseded by part number: 1444870 |
| 308. | 73175300 | [1] | GASKET | BERGASKET Superseded by part number: 1475955 |
| 309. | 73175301 | [1] | GASKET | BERGASKET Superseded by part number: 1475956 |
| 310. | 73175302 | [1] | SNAP RING | BERSNAP RING Superseded by part number: 1475957 |
| 311. | 73175303 | [30] | SPRING | BERSPRING Superseded by part number: 1475958 |
| 312. | 73175304 | [30] | SPRING | BERSPRING Superseded by part number: 2894119 |
