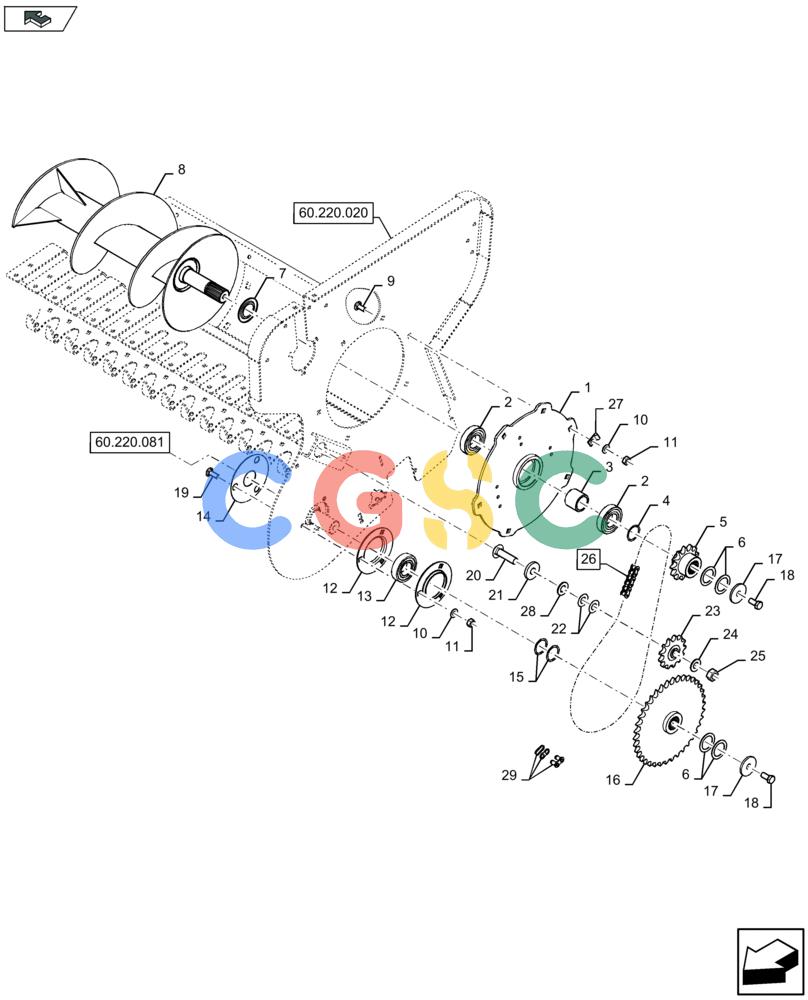

| 1. |
84216315
|
[1] |
CONE
|
ZED
|
| 2. |
84438926
|
[2] |
BALL BEARING,35mm ID x 72mm OD x 17mm W
|
NH
|
| 3. |
84216322
|
[1] |
SLEEVE
|
ZED
|
| 4. |
84429871
|
[1] |
WASHER
|
PLO
|
| 5. |
84566098
|
[1] |
SPROCKET
|
ZED
|
| 6. |
442293
|
[4] |
WASHER,36mm ID x 50mm OD x 1.5mm Thk
|
ZED
|
| 7. |
417723
|
[1] |
SEAL
|
ZED
Superseded by part number: 80417723
|
| 8. |
84567021
|
[1] |
AUGER
|
ZED
|
| 8. |
47579172
|
[1] |
AUGER
|
ZED
|
| 9. |
86633356
|
[6] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 10. |
140045
|
[9] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 11. |
100016
|
[9] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
36403
|
[2] |
BEARING HOUSING
|
GI
Superseded by part number: 578189
|
| 13. |
84210631
|
[1] |
BEARING
|
ZED
|
| 14. |
84301460
|
[1] |
DISC
|
ZED
|
| 15. |
140119
|
[2] |
WASHER,35.2mm ID x 42.5mm OD x 1.22mm Thk
|
ZED
|
| 16. |
84566983
|
[1] |
SPROCKET
|
ZED
|
| 17. |
9801096
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk
|
NH
|
| 18. |
300388
|
[2] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 19. |
86512446
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 20. |
120046
|
[1] |
CARRIAGE BOLT,M16 x 60mm, Cl 8.8
|
ZED
Superseded by part number: 87552612
|
| 21. |
86592702
|
[1] |
WASHER,17mm ID x 45mm OD x 6mm Thk
|
ZED
|
| 22. |
47407
|
[2] |
WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk
|
NH
|
| 23. |
84024221
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 24. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 25. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 26. |
84220227
|
[1] |
CHAIN
|
ZED
Incl 29, Serial Range: -C098 Superseded by part number: 47663300
|
| 26. |
47663300
|
[1] |
CHAIN
|
ZED
Incl 29, Start Serial: D099
|
| 27. |
675162
|
[2] |
WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 28. |
86639311
|
[1] |
WASHER,17.5mm ID x 34mm OD x 3mm Thk
|
FAR
|
| 29. |
165590
|
[1] |
CONNECTING LINK
|
PA
Superseded by part number: 241-1316
|
