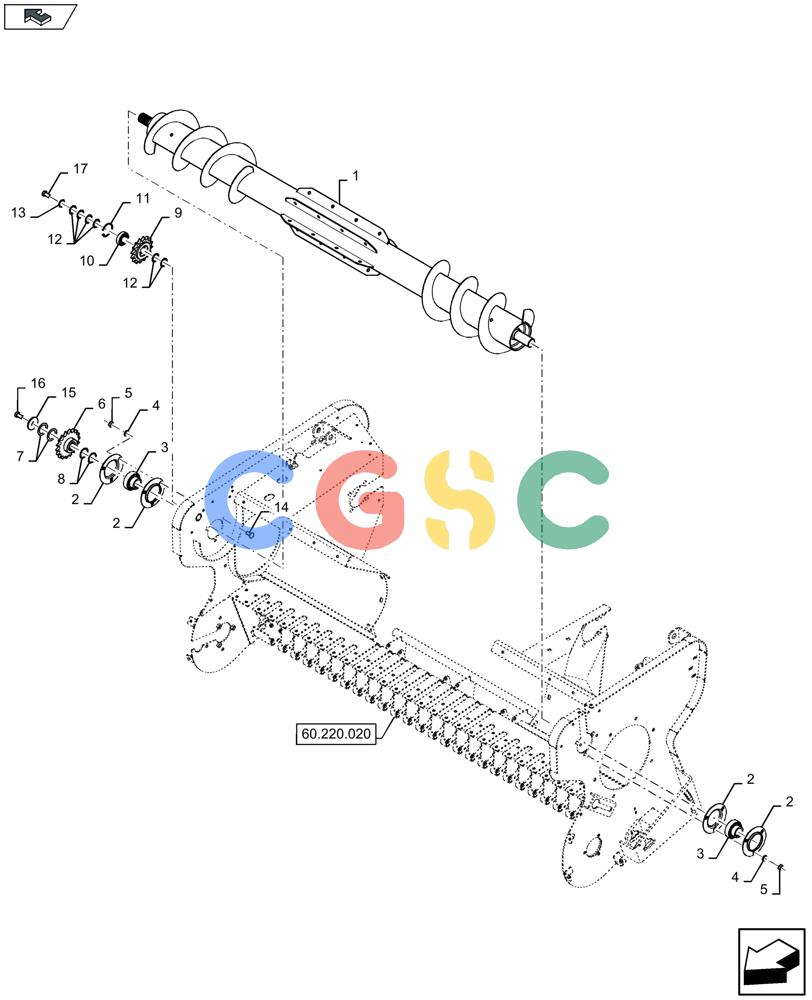

凯斯零件查询(LB424R) - BALER (9/12-) (60.220.101) - FEED ROLLER - D085 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47501832
|
[1] |
FEED ROLLER
|
ZED
, Serial Range: -C144
|
| 1. |
47905201
|
[1] |
FEED ROLLER
|
ZED
, Start Serial: D145
|
| 1. |
47581248
|
[1] |
FEED ROLLER
|
ZED
, Serial Range: -C144
|
| 1. |
47906539
|
[1] |
FEED ROLLER
|
ZED
, Start Serial: D145
|
| 1. |
84568888
|
[1] |
FEED ROLLER
|
ZED
, Serial Range: -C144
|
| 1. |
47905517
|
[1] |
FEED ROLLER
|
ZED
, Start Serial: D145
|
| 1. |
47600353
|
[1] |
FEED ROLLER
|
ZED
|
| 2. |
36403
|
[4] |
BEARING HOUSING
|
GI
Superseded by part number: 578189
|
| 3. |
9837842
|
[2] |
BEARING,35mm ID x 72mm OD x 19mm W
|
ZED
|
| 4. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 5. |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 6. |
84568884
|
[1] |
SPROCKET
|
ZED
|
| 7. |
442293
|
[2] |
WASHER,36mm ID x 50mm OD x 1.5mm Thk
|
ZED
|
| 8. |
84429871
|
[2] |
WASHER
|
PLO
|
| 9. |
84568878
|
[1] |
SPROCKET
|
ZED
, Serial Range: -C136 Superseded by part number: 47635044
|
| 9. |
47635046
|
[1] |
SPROCKET
|
ZED
, Start Serial: D137
|
| 10. |
443898
|
[1] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
, Serial Range: -C136 Superseded by part number: 84188095
|
| 10. |
47462369
|
[1] |
BALL BEARING
|
COE
, Start Serial: D137
|
| 11. |
370011
|
[1] |
CIRCLIP,M52 x 2mm Thk, Internal
|
ZED
Superseded by part number: 33915
|
| 12. |
419854
|
[6] |
WASHER,26mm ID x 35mm OD x 1mm Thk
|
ZED
|
| 13. |
370002
|
[1] |
CIRCLIP,M25, External
|
NH
, Serial Range: -C136
|
| 13. |
86592701
|
[1] |
WASHER,13mm ID x 35mm OD x 5mm Thk
|
ZED
, Start Serial: D137
|
| 14. |
86633356
|
[3] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 15. |
9801096
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk
|
NH
|
| 16. |
300388
|
[1] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
