神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (02-016) - SEAT ASSY, OPERATOR (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
796 次

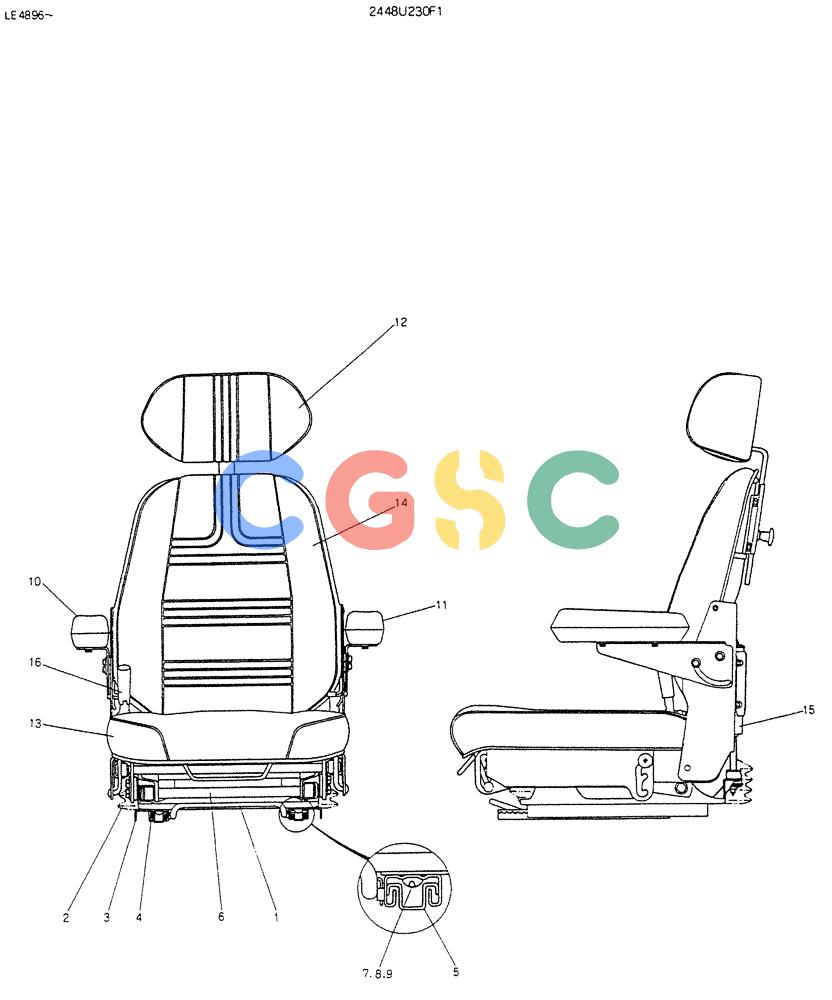

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2448U230F1 | [1] | SEAT SEAT ASSY, OPERATOR | SEAT SEAT ASSY, OPERATOR |
| 1. | 2448U230S1 | [1] | SEAT ASSY | |
| 2. | 2448U230S2 | [1] | KIT, COVER | |
| 3. | 2448U230S3 | [2] | BRACKET | |
| 4. | 2448U230S4 | [1] | CENTRAL RAIL | KOB |
| 5. | 2448U230S5 | [1] | CENTRAL RAIL | KOBGUIDE |
| 6. | 2448U230S6 | [1] | LEVER | KOB |
| 7. | 2448U230S7 | [4] | CAPSCREW | |
| 8. | 2448U230S8 | [4] | LOCK WASHER | |
| 9. | 2448U230S9 | [1] | NUT | |
| 10. | 2448U230S10 | [1] | ANTENNA | KOB |
| 11. | 2448U230S11 | [1] | ANTENNA | KOB |
| 12. | 2448U230S12 | [1] | HEAD ASSY | HEAD ASSY |
| 13. | 2448U230S13 | [1] | CUSHION | KOBSEAT |
| 14. | 2448U230S14 | [1] | CUSHION | KOBBACK |
| 15. | 2448U230S15 | [1] | SHOCK ABSORBER | KOBDAMPER |
| 16. | 2448U230S16 | [1] | HANDLE, RATCHET | |
