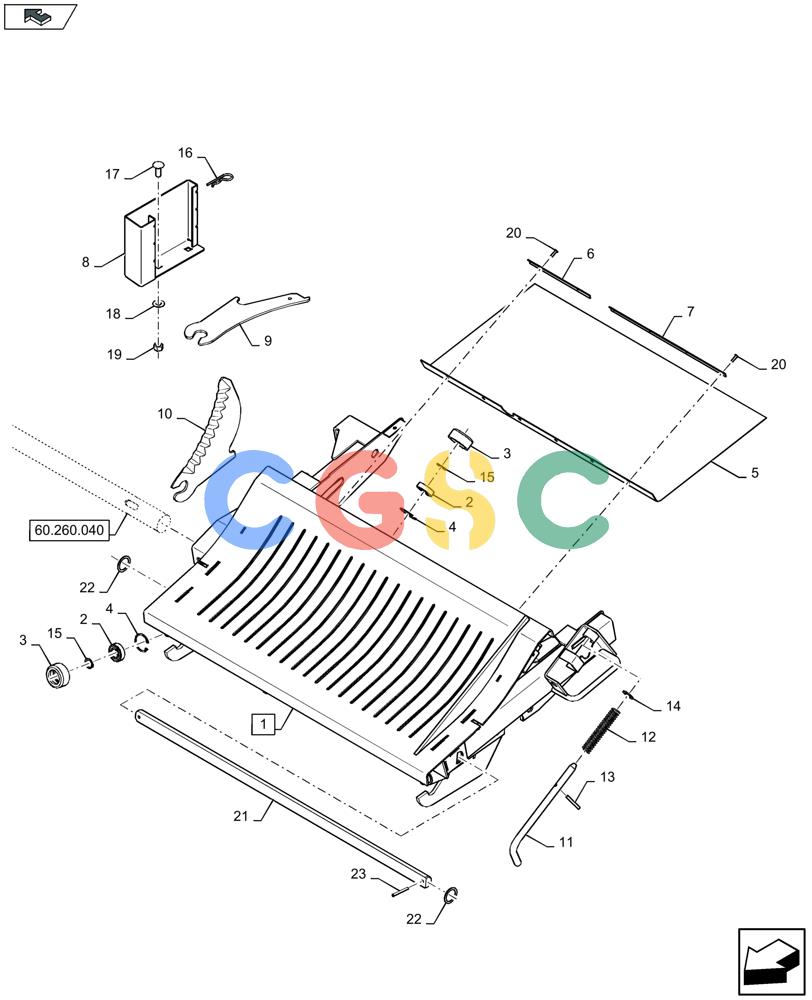

凯斯零件查询(LB424R) - BALER (9/12-) (60.260.030) - KNIFE DRAWER MEDIUM CUT, KNIVES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84284773
|
[1] |
KNIFE HOLDER
|
ZED
Incl 21 - 23
|
| 1. |
84284777
|
[1] |
KNIFE HOLDER
|
ZED
Incl 21 - 23
|
| 2. |
86629499
|
[6] |
BALL BEARING,20mm ID x 42mm OD x 12mm W
|
ZED
|
| 3. |
84041706
|
[6] |
ROLLER
|
ZED
|
| 4. |
300645
|
[6] |
SNAP RING,M42, Int
|
NH
|
| 5. |
84217479
|
[1] |
CANVAS
|
ZED
|
| 5. |
84260903
|
[1] |
CANVAS
|
ZED
|
| 6. |
84267878
|
[1] |
MOUNTING PLATE
|
ZED
|
| 6. |
84260905
|
[2] |
PLATE
|
ZED
|
| 7. |
84260904
|
[1] |
PLATE
|
ZED
|
| 8. |
84529072
|
[1] |
RACK
|
ZED
|
| 9. |
84056868
|
[9] |
COVER PLATE
|
ZED
|
| 10. |
84056505
|
[9] |
KNIFE
|
ZED
|
| 10. |
84058219
|
[9] |
KNIFE
|
ZED
|
| 11. |
84039459
|
[1] |
PIN,16mm OD
|
ZED
|
| 12. |
84043589
|
[1] |
SPRING
|
ZED
|
| 13. |
333960
|
[1] |
LOCK PIN,6mm OD x 50mm L, Slotted
|
NH
|
| 14. |
140090
|
[1] |
WASHER
|
PA
|
| 15. |
370024
|
[6] |
CIRCLIP,M20, Ext
|
NH
|
| 16. |
437424
|
[2] |
COTTER PIN
|
GI
|
| 17. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 18. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 19. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 20. |
445395
|
[6] |
RIVET,Pop, 4.8mm OD x 18.1mm L
|
IH
|
| 21. |
84217477
|
[1] |
ROD
|
ZED
|
| 21. |
84210648
|
[1] |
ROD
|
ZED
|
| 22. |
140109
|
[2] |
WASHER,31mm ID x 40mm OD x 2mm Thk
|
NH
|
