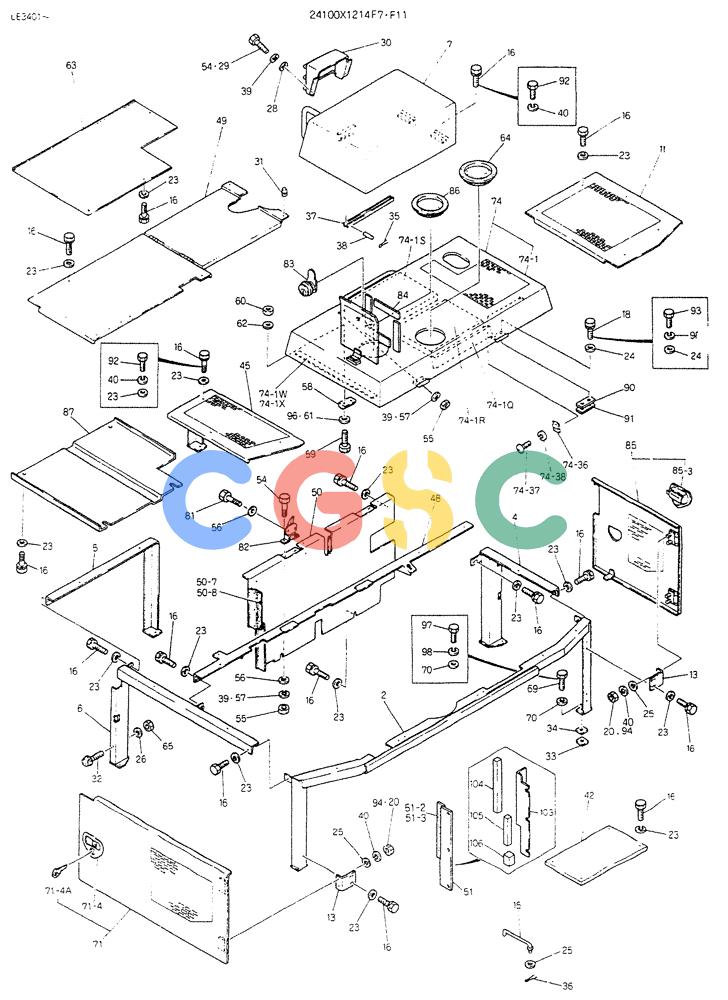

| . . | 24100X1214F7 | [1] | GUARD ASSY, Serial Range: LE3401-LE4161 | |
| . . | 24100X1214F11 | [1] | GUARD ASSY, Start Serial: LE4162 | |
| 2. | 2416J653 | [1] | BRACKET | |
| 4. | 2416N2378 | [1] | BRACKET | |
| 5. | 2416N2377 | [1] | BRACKET | |
| 6. | 2416N2376 | [1] | BRACKET | |
| 7. | 2414N1675 | [1] | BOX,TOOL | |
| 11. | 2414P2642 | [1] | COVER | |
| 13. | 2416T8231 | [4] | BRACKET | KOB |
| 15. | 2416T6289D2 | [2] | STAY | KOBSTAY |
| 16. | ZM11C10025 | [47] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher), Serial Range: LE3401-LE4390 Superseded by part number: ZM12C10025 |
| 18. | ZM11C12035 | [4] | SEWS-BOLT, Serial Range: LE3401-LE4390 | |
| 20. | ZN16C10008 | [8] | NUT | KOBM10x1.50mm, Serial Range: LE3401-LE4390 Superseded by part number: ZN18C10008 |
| 23. | 2418T5373C2 | [40] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 24. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 25. | ZW16X10000 | [13] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 26. | ZW16K05000 | [4] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 2?. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 29. | ZS16C08016 | [4] | SCREW | KOBM08x1.25x16mm, Serial Range: LE3401-LE4390 Superseded by part number: ZS18C08016 |
| 30. | 2414P2094 | [1] | COVER | COVER |
| 31. | 2416T8283 | [2] | RUBBER SLEEVE | KOB |
| 32. | 2416T6682 | [4] | RUBBER BAND | KOBCUSHION |
| 33. | B16T0186D1 | [4] | SHIM 1.2 | |
| 34. | B16T0186D2 | [4] | SHIM 2.3 | |
| 35. | 2419R9D2 | [2] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 36. | 2419R9D3 | [2] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 37. | 2416T7379 | [1] | STAY | STAY |
| 38. | ZW45X08027 | [2] | LOCK WASHER | |
| 39. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Serial Range: LE3401-LE4390 Superseded by part number: 83990583 |
| 40. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, Serial Range: LE3401-LE4390 |
| 42. | 2414P2643 | [1] | COVER | |
| 45. | 2414P2698 | [1] | COVER | |
| 48. | 2416N2713 | [1] | BRACKET | |
| 49. | 2414N1804 | [1] | COVER | |
| 50. | 2414N1805 | [1] | COVER | |
| 50-7. | 2416Z307 | [1] | SHEET,RUBBER | |
| 50-8. | 4020Z64 | [3] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 51. | 2414T1916 | [1] | COVER, Serial Range: LE3401-LE4636 | |
| 51-2. | 2416Z3C6 | [1] | SHEET,RUBBER | |
| 51-3. | 4020Z64 | [4] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 54. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm, Serial Range: LE3401-LE4390 |
| 55. | ZN17C08007 | [8] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 56. | ZW16P08000 | [8] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 57. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Serial Range: LE3401-LE4390 Superseded by part number: 83990583 |
| 58. | 2416T9172 | [2] | CUSHION | KOB |
| 59. | ZS18C06025 | [4] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 60. | ZN17C06005 | [4] | NUT | KOB Superseded by part number: ZN18C06005 |
| 61. | ZW16X06000 | [4] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm, Serial Range: LE3401-LE4390 Superseded by part number: 86588450 |
| 62. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 63. | 2414T1918 | [1] | COVER | |
| 64. | 2420Z750 | [1] | GROMMET | GROMMET |
| 65. | ZN31C05005 | [4] | NUT | KOB |
| 69. | ZM11C12030 | [5] | SCREW | KOBM12x1.75x30mm (Incls. Lockwasher), Serial Range: LE3401-LE4390 Superseded by part number: ZM12C12030 |
| 70. | 2418T10357 | [5] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 71. | 2414N1847 | [1] | COVER | COVER |
| 71-4. | 2427R233 | [1] | LOCK | KOB |
| 71-4A. | 2420Z780 | [1] | KEY | KOBLOCK |
| 74. | 2414J1024F1 | [1] | COVER | COVER |
| 74-1. | 2414J1024 | [1] | COVER | |
| 74-10. | 2479T565 | [1] | INSULATION SOUND | |
| 74-18. | 2479T564 | [1] | INSULATION SOUND | |
| 74-1S. | 2479T566 | [1] | INSULATION SOUND | |
| 74-1W. | 4020Z64 | [6] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 74-1X. | 241AT9190 | [1] | SEAT RUBBER | |
| 74-36. | B16T0530 | [1] | CLIP | CLIP |
| 74-37. | ZS31C06008 | [2] | MACHINE SCREW M06x1.0x08mm | MACHINE SCREW M06x1.0x08mm |
| 74-38. | ZW26K06000 | [2] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 81. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 82. | 2427R3D2 | [2] | CATCH | |
| 83. | 2402Z969 | [1] | KEY | |
| 84. | 2416T9292 | [4] | RUBBER,CUSHION | |
| 85. | 2414N1882 | [1] | COVER | KOB |
| 85-3. | 2427R282 | [1] | LOCK | KOB |
| 86. | 2420Z988 | [1] | GROMMET | GROMMET |
| 87. | 2414T1946 | [1] | COVER, Start Serial: LE4162 | |
| 90. | 2418T1309 | [2] | PLATE | |
| 91. | 2418T1310 | [2] | PLATE | |
| 92. | ZS18C10025 | [47] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm, Start Serial: LE4391 |
| 93. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm, Start Serial: LE4391 |
| 94. | ZN17C10008 | [8] | NUT | KOBM10x1.50mm, Start Serial: LE4391 Superseded by part number: ZN18C10008 |
| 96. | 2418T8844D4 | [4] | SPACER, Start Serial: LE4391 | |
| 97. | ZS18C12030 | [5] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm, Start Serial: LE4391 |
| 98. | ZW26X12000 | [9] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Start Serial: LE4391 |
| 103. | 2414T2072 | [1] | COVER, Start Serial: LE4637 | |
| 104. | 2416Z328D2 | [1] | INSULATOR, Start Serial: LE4637 | |
| 105. | 2416Z328D3 | [1] | INSULATOR, Start Serial: LE4637 | |
| 106. | 2416Z362D1 | [1] | COVER, Start Serial: LE4637 | |
