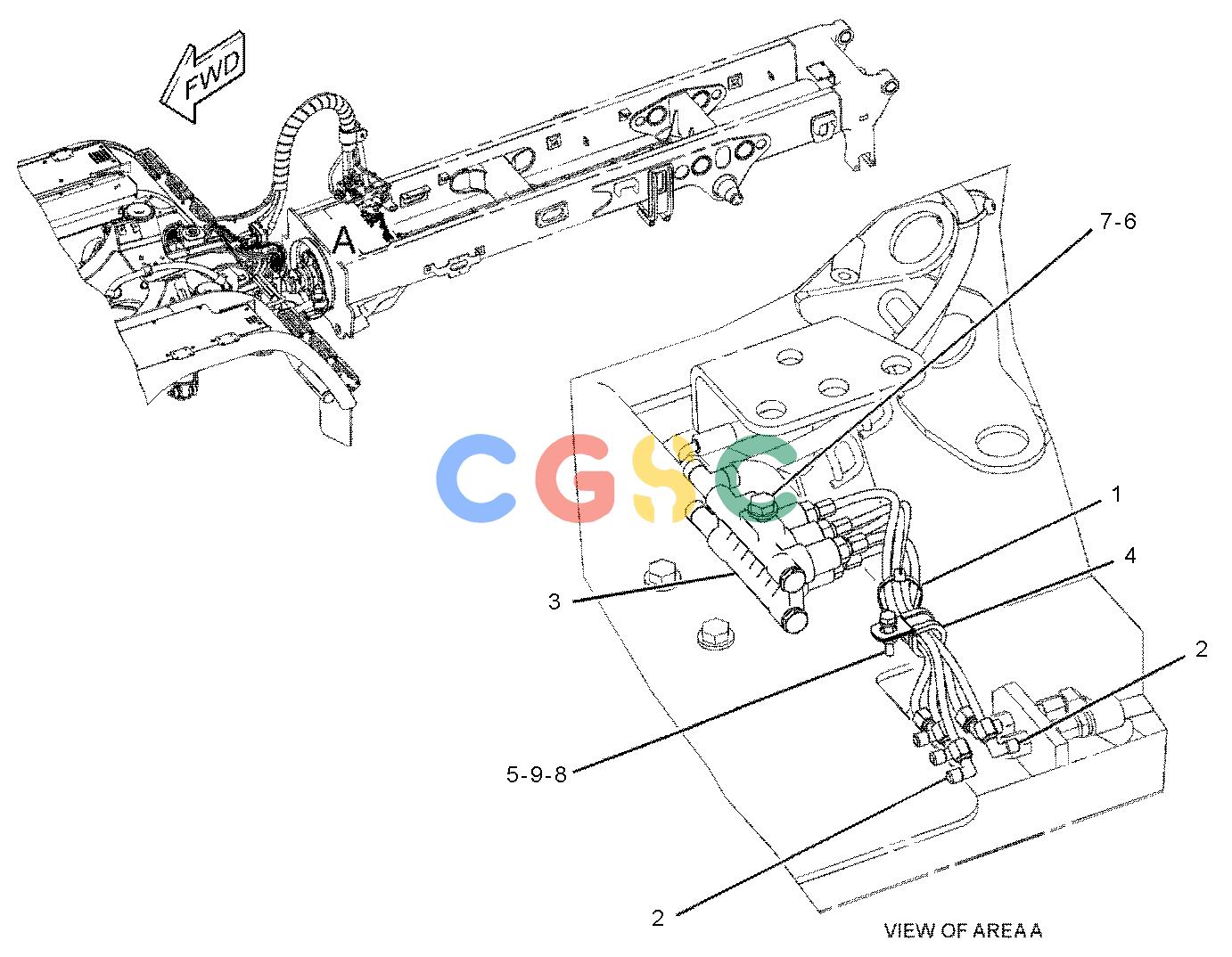

卡特零件查询（730） 267-3320: LINES GP-LUBRICATION
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [1] | STRAP-CABLE | |
| 2. | 177-3464 | [5] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 267-3321Y | [1] | VALVE GP-LUBE DISTRIBUTION(7-INJECTOR) | |
| 4. | 3U-2754 | [1] | CLIP | |
| 5. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 6. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 8. | 8T-4971M | [1] | BOLT(M6X1X30-MM) | |
| 9. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
