神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (12-003) - LABEL, NAME-PLATE P/N 24100J4830F3,F6 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
833 次

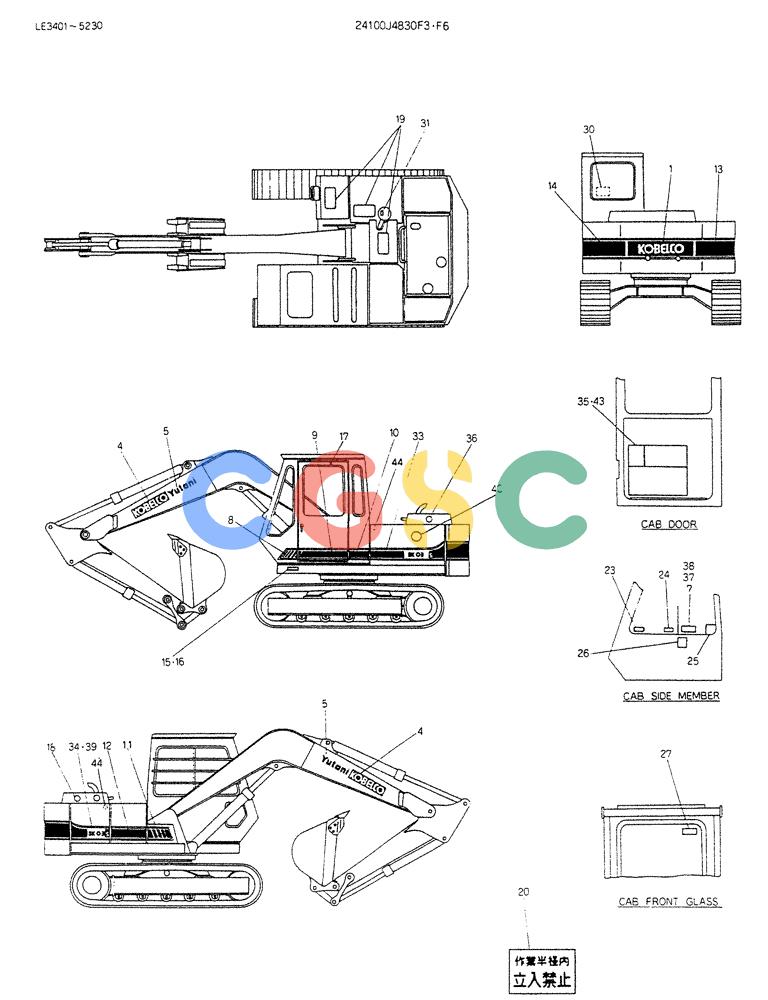

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4830F3 | [1] | LABEL NAME-PLATE LE3401 to LE4326 | |
| . . | 24100J4830F6 | [1] | LABEL NAME-PLATE LE4327, Serial Range: -LE4330 | |
| 1. | 2432X339 | [1] | TYPE PLATE | KOB |
| 4. | 2432J669 | [2] | LABEL | KOBNAME-PLATE |
| 5. | 2432J954 | [2] | NAME-PLATE | NAME-PLATE |
| 7. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 8. | 2432T1728 | [1] | LABEL | KOB |
| 9. | 2432T1729 | [1] | LABEL | KOB |
| 10. | 2432T1730 | [1] | LABEL | LABEL |
| 11. | 2432T1732 | [1] | LABEL | KOB |
| 12. | 2432T1731 | [1] | LABEL | KOB |
| 17. | 2432T1733D2 | [1] | LABEL | KOB |
| 14. | 2432T1733D1 | [1] | LABEL | KOB |
| 15. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 16. | 2432T1530 | [1] | IDENTITY PLATE | KOB |
| 17. | 2432T1142 | [2] | LABEL | KOB |
| 18. | 2432T1176 | [2] | LABEL | LABEL |
| 19. | 2427Z329 | [3] | SHEET | KOBAnti-Slip (300x150mm) |
| 20. | 2432N563 | [1] | LABEL | |
| 23. | 2432T1753 | [1] | LABEL | KOBDecal, Kobelco Operation Superseded by part number: YN20T01407P1 |
| 24. | 2432Z287 | [1] | LABEL | KOB Superseded by part number: YN20T01408P1 |
| 25. | 2432T1754 | [1] | LABEL | LABEL |
| 26. | 2432T1759 | [1] | PLATE | KOB |
| 27. | 2432T888 | [1] | PLATE, CAUTION | PLATE, CAUTION |
| 30. | 2432Z387 | [1] | LABEL | LABEL |
| 31. | 2432T884 | [1] | LABEL | KOB |
| 33. | 2432J1030 | [1] | LABEL | |
| 34. | 2432J1029 | [1] | LABEL LE3401, Serial Range: -LE3898 | |
| 35. | 2432J1028 | [1] | LABEL LE3401, Serial Range: -LE4326 | |
| 36. | 2418T10311 | [1] | PLATE | KOBØ30mm round Superseded by part number: 2418T27058 |
| 37. | 2432N496 | [1] | PLATE,INSTRUCTION | |
| 38. | 2432N1044 | [1] | PLATE,INSTRUCTION | |
| 39. | 2432J1044 | [1] | LABEL, Start Serial: LE3899 | |
| 40. | 2432N1367D3 | [1] | LABEL | |
| 43. | 2432J1080 | [1] | LABEL LE4327, Serial Range: -LE4330 | |
| 44. | 2432T2250 | [6] | LABEL | KOB |
