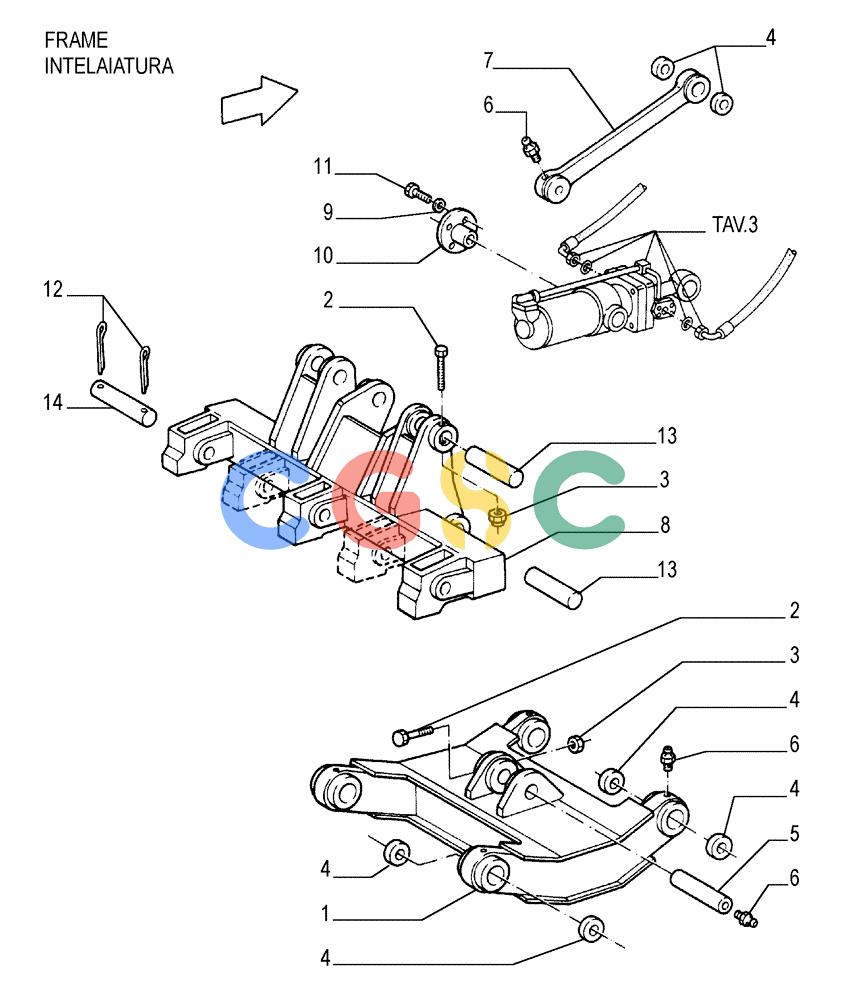

纽荷兰零件查询(FL145) - CRAWLER LOADER (N.A. VERSION) (11/98-) (9.523[02]) - RIPPER (RP) - 'RECO' New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76031582 | [1] | FRAME | LEC- LOWER |
| 2. | 11114631 | [5] | BOLT,Hex, M12 x 120, 10.9 | BHB Superseded by part number: 86639151 |
| 3. | 12577521 | [1] | NUT,M12 x 1.75 | LEC |
| 4. | 76031579 | [16] | BUSHING | LEC |
| 5. | 76031583 | [1] | LOCK PIN | LEC |
| 6. | 13407211 | [11] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 7. | 76031578 | [2] | ARM | LEC |
| 8. | 76031572 | [1] | BAR | LEC |
| 9. | 70900703 | [8] | WASHER | LEC |
| 10. | 76031526 | [2] | LOCK PIN | LEC |
| 11. | 70921411 | [8] | SCREW | LEC Superseded by part number: 88685 |
| 12. | 76031528 | [6] | COTTER PIN | LEC |
| 13. | 76031571 | [4] | LOCK PIN | LEC |
| 14. | 76031573 | [3] | LOCK PIN | LEC |
