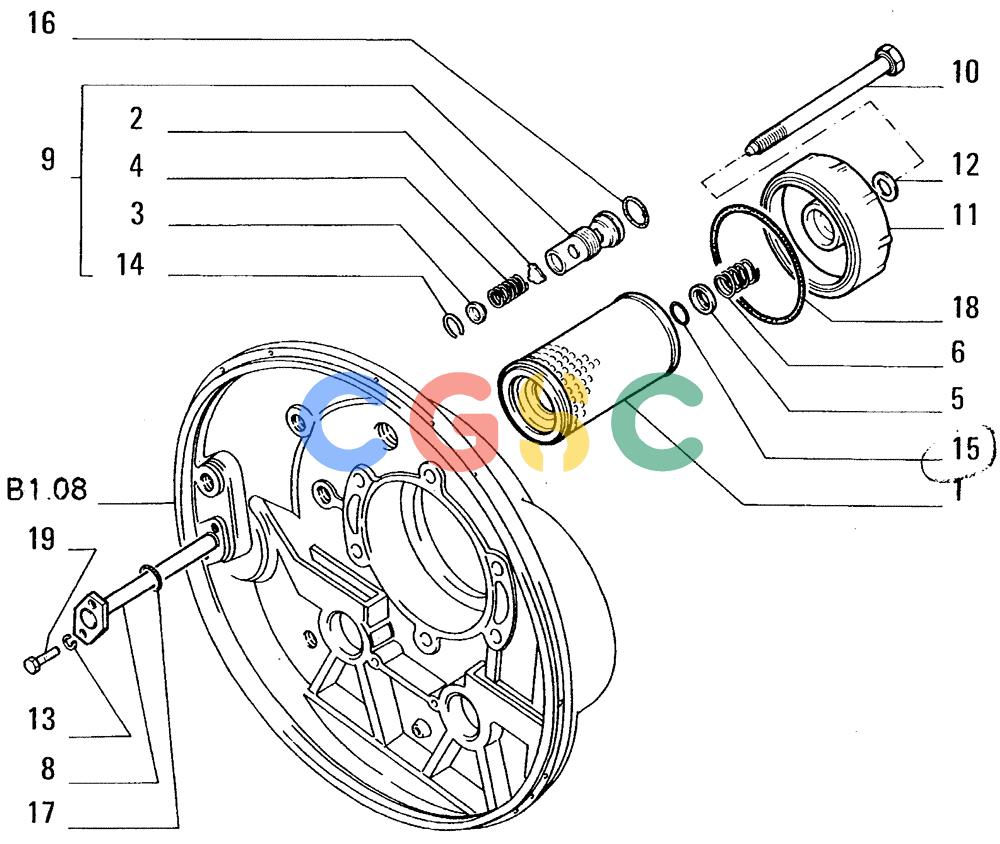

纽荷兰零件查询(FL14E) - CRAWLER LOADER (B1.09[001]) - "CONVERTER, PUMPS AND VALVES" New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
206 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79034233 | [1] | HYDRAULIC OIL FILTER | LECFILTER Superseded by part number: 1930722 |
| 2. | 581598 | [1] | CARRIER | LEC Superseded by part number: LEC590496 |
| 3. | 581599 | [1] | CUP | LEC |
| 4. | 581600 | [1] | SPRING | LEC |
| 5. | 581604 | [1] | CUP,14.2mm ID x 20.6mm OD x 0.8mm Thk | LEC |
| 6. | 581605 | [1] | CONE PINION | LEC Superseded by part number: BER581605, BER581605, LEC581605 |
| 8. | 590456 | [1] | PROP | LECSTUD Superseded by part number: 76032866 |
| 9. | 590496 | [1] | | LECVALVE - ASSEMBLY Superseded by part number: BER590496, BER590496, LEC590496 |
| 10. | 4954874 | [1] | SCREW | LEC |
| 11. | 4960068 | [1] | COVER | LEC |
| 12. | 10280060 | [1] | SEAL,M14.2 x 20 x 1.5 | TTFGASKET 14,2x20 Superseded by part number: 4858608 |
| 13. | 10516671 | [2] | LOCK WASHER | BHBWASHER 8,1x2,2 Superseded by part number: 83990583 |
| 14. | 11057876 | [1] | SNAP RING,M20, Int | LECRING, LOCKING, M20, Int |
| 15. | 14457180 | [1] | O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro | TTF0-RING -113, 70 Duro, .549" ID x .103" Thk Superseded by part number: 5146468 |
| 16. | 14457881 | [1] | O-RING,25.07mm ID x 2.62" Width | LEC0-RING 2,62x25,07 |
| 17. | 14463681 | [1] | O-RING,31.34mm ID x 3.53" Width | TTF1.234" ID x .139" Thk |
| 18. | 14466281 | [1] | O-RING,107.54mm ID x 4.512" OD x 3.53mm | LEC0-RING 3,53x107,54 |
| 19. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHBBOLT, Hex, M8 x 25, 10.9 Superseded by part number: 43234 |
