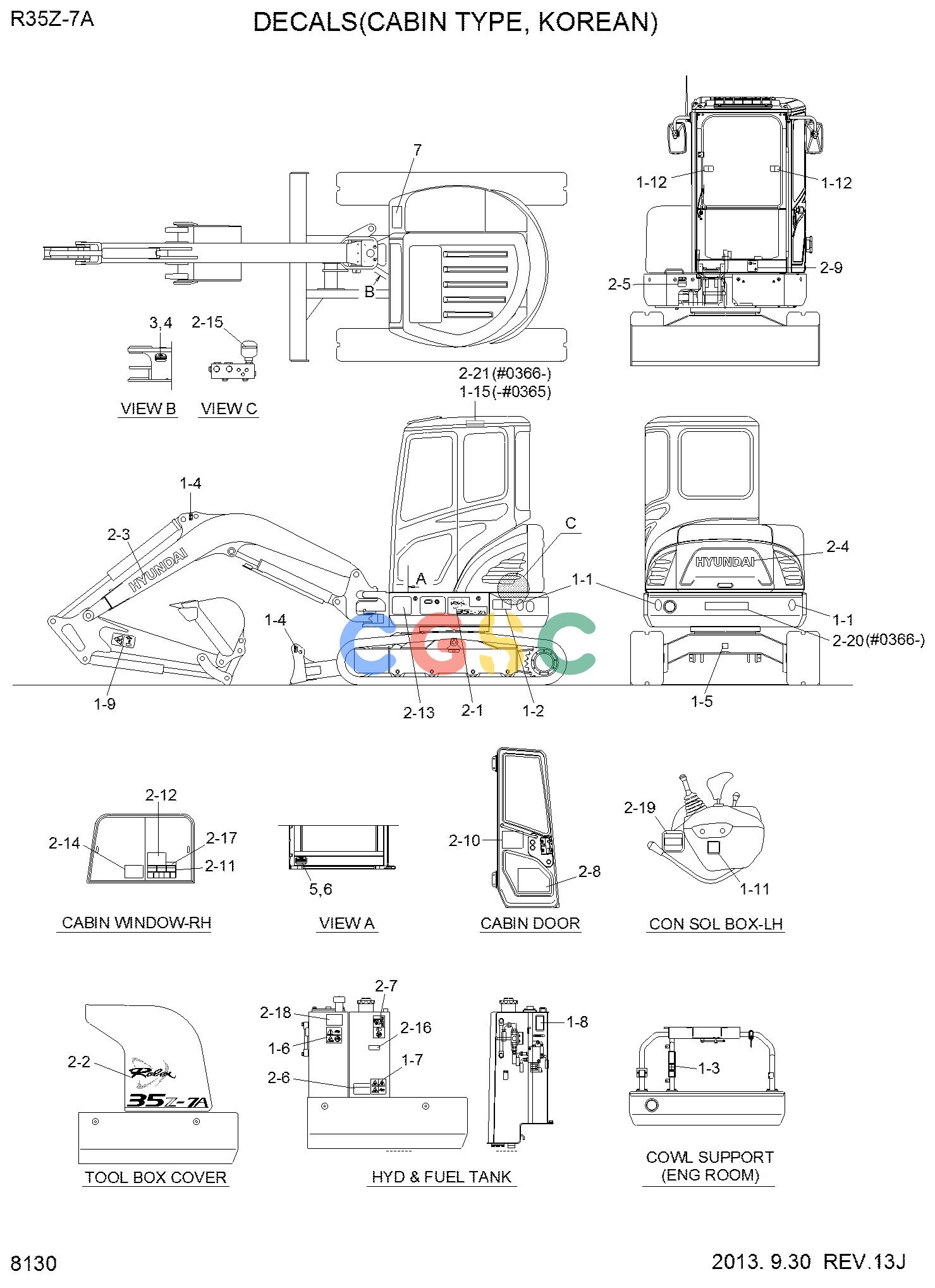

现代零件查询R35Z-7A DECALS(CABIN TYPE, KOREAN)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
559 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
91MH-00013
|
[1] |
DECAL KIT(A)
|
|
| 1. |
91MH-00014
|
[1] |
DECAL KIT(A)
|
|
| 1. |
91MH-00015
|
[1] |
DECAL KIT(A)
|
|
| 1-1. |
91M8-04020
|
[2] |
REFLECTING
|
|
| 1-2. |
91M8-07010
|
[2] |
DECAL-KEEP CLEAR,REAR
|
|
| 1-3. |
91M8-07110
|
[1] |
DECAL-CAUTION,ENG
|
|
| 1-4. |
91M8-05110
|
[4] |
DECAL-LIFTING POINT
|
|
| 1-5. |
91N6-05120
|
[1] |
DECAL-TIE
|
|
| 1-6. |
91N6-03111
|
[1] |
DECAL-HYD OIL LUB
|
|
| 1-7. |
91M8-02120
|
[1] |
DECAL-BATTERY ACCIDENT
|
|
| 1-8. |
91MH-03110
|
[1] |
DECAL-CHANGE WAY
|
|
| 1-9. |
91M8-06110
|
[2] |
DECAL-KEEP CLEAR,ATT
|
|
| 1-11. |
91M8-07300
|
[1] |
DECAL-CONSOLE TILTING
|
|
| 1-12. |
91M8-07250
|
[2] |
DECAL-SAFETY FR WINDOW
|
|
| 1-12. |
97MH-07350
|
[2] |
DECAL-SAFETY/FR WIND
|
|
| 1-15. |
91MK-07280
|
[1] |
DECAL-HAMMER
|
|
| 2. |
91MH-02302
|
[1] |
DECAL KIT(B)-LOCAL
|
|
| 2. |
91MH-02303
|
[1] |
DECAL KIT(B)-LOCAL
|
|
| 2. |
91MH-02500
|
[1] |
DECAL KIT(B)-LOCAL
|
|
| 2. |
91MH-02501
|
[1] |
DECAL KIT(B)-LOCAL
|
|
| 2. |
91MH-02502
|
[1] |
DECAL KIT(B)-LOCAL
|
|
| 2-1. |
92MH-10010
|
[1] |
MODEL NAME-LH
|
|
| 2-2. |
92MH-10020
|
[1] |
MODEL NAME-RH
|
|
| 2-3. |
91N6-23040
|
[2] |
DECAL-HYUNDAI LOGO
|
|
| 2-4. |
91N6-23030
|
[1] |
HYUNDAI LOGO
|
|
| 2-5. |
92MH-04110
|
[1] |
DECAL-GREASE
|
|
| 2-6. |
91S8-06350
|
[1] |
DECAL-ECM CONNECTOR
|
|
| 2-7. |
91M8-01130
|
[1] |
DECAL-FUELING
|
|
| 2-7. |
91Q4-01130
|
[1] |
DECAL-FUELING
|
|
| 2-8. |
92MH-10712
|
[1] |
DECAL-S/INSTRUCTION
|
|
| 2-8. |
92MH-10713
|
[1] |
DECAL-S/INSTRUCTION
|
|
| 2-8. |
92MH-10714
|
[1] |
DECAL-SERVICE INSTRUCTION
|
|
| 2-8. |
92MH-10730
|
[1] |
DECAL-SERVICE INSTRUCTION
|
|
| 2-9. |
92N6-22040
|
[1] |
NOISE LWA/94DB
|
|
| 2-11. |
92MH-07240
|
[1] |
WINDOW-CABIN RH
|
|
| 2-12. |
91MH-07220
|
[1] |
DECAL-CONTROL SWIVEL
|
|
| 2-14. |
92MH-10810
|
[1] |
SPECIFICATONS
|
|
| 2-15. |
91N6-03200
|
[1] |
DECAL-ACCUMULATOR
|
|
| 2-17. |
91Q6-03230
|
[1] |
DECAL-FUEL SHUT OFF
|
|
| 2-18. |
91Q4-07170
|
[1] |
DECAL-WATER SEPARATOR
|
|
| 2-19. |
91N8-09110
|
[1] |
DECAL-DO NOT OPERATE
|
|
| 2-20. |
92MH-07370
|
[1] |
DECAL-KEEP CLEAR-REAR
|
|
| 2-21. |
92MK-07280
|
[1] |
DECAL-HAMMER
|
|
| 3. |
91LM-14110
|
[1] |
PIN PLATE
|
|
| 4. |
S151-030106
|
[4] |
SCREW-TAPPING
|
|
| 5. |
91M8-01280
|
[1] |
ROPS PLATE
|
|
| 6. |
91EK-12010
|
[4] |
RIVET
|
|
| 7. |
91FY-00210
|
[1] |
DECAL-NON SLIP SHEET
|
|
