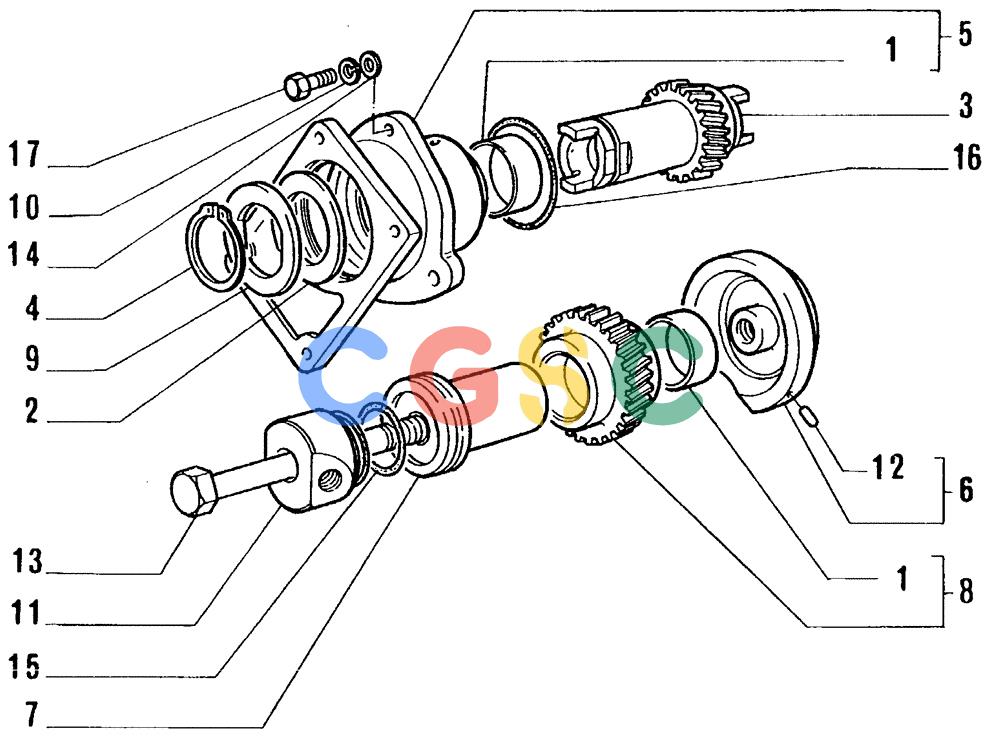

纽荷兰零件查询(FL14E) - CRAWLER LOADER (E2.15[001]) - PTO CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4788087 | [4] | BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L | TOR- IN ALTERNATIVE |
| 1. | 4670938 | [4] | BUSHING | LEC- IN ALTERNATIVE |
| 2. | 4712007 | [1] | LOCK WASHER | MODWASHER Superseded by part number: 412123 |
| 3. | 4724168 | [1] | SHAFT | MOD |
| 4. | 4725414 | [1] | LOCKING RING | MODSNAP RING |
| 5. | 4767038 | [1] | HUB | MOD- Shaft |
| 6. | 4766827 | [1] | SUPPORT | MOD- Pump |
| 7. | 4766736 | [1] | PIN | MODCOUPLING |
| 8. | 4766826 | [1] | GEAR | MOD- ASSEMBLY |
| 9. | 4755621 | [1] | THRUST WASHER,37.1mm ID x 64mm OD x 3mm Thk | MODWASHER |
| 10. | 4667452 | [3] | WASHER,37.1mm ID x 55mm OD x 1.5mm Thk | TOR |
| 11. | 4766738 | [1] | SPACER | MOD |
| 12. | 10837510 | [1] | DOWEL | MKT6x18 |
| 13. | 11114121 | [1] | SCREW,Hex, M12 x 95mm, Cl 8.8 | MKTSCREW 12x1,5x95 |
| 14. | 11193879 | [1] | BELLEVILLE WASHER,Belleville, M8.4 | TTFWASHER, SPRING, Belleville, M8.4 Superseded by part number: 11193874 |
| 15. | 14458281 | [1] | O-RING,1.237" ID x 1.443" OD x 0.103" | LEC-124, Cl 7, 1.237" ID x .103" Thk (M31.42 ID x 2.62 Thk) |
| 16. | 14460181 | [1] | O-RING,61.6mm ID x 2.62" Width | ZED-143, Cl 7, 2.425" ID x .103" Thk Superseded by part number: 17284681 |
| 17. | 16043824 | [1] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 30, 8.8, Full Thd |
