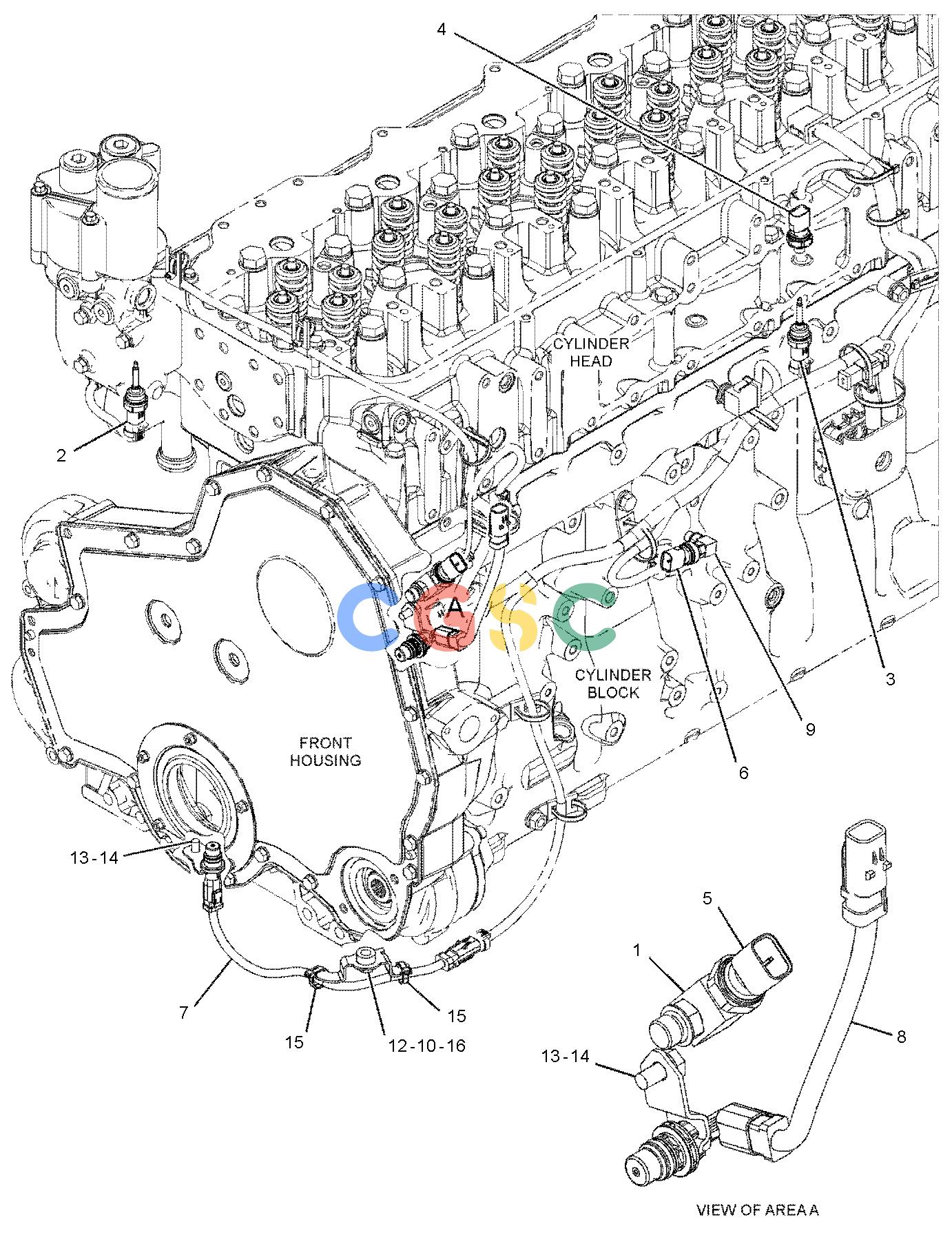

卡特零件查询（730） 354-0042: SENSOR GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 389-3713C | [1] | ELBOW AS | |
| | 234-4355 | [1] | ADAPTER-O-RING | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 2. | 234-5012Y | [1] | SENSOR GP-TEMPERATURE(COOLANT) | |
| 3. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(INTAKE AIR MANIFOLD) | |
| 4. | 249-0096Y | [1] | SENSOR GP-PRESSURE(INLET AIR) | |
| 5. | 276-8548Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 6. | 274-6719C | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 7. | 384-1836Y | [1] | SENSOR GP-SPEED(ENGINE SPEED) | |
| 8. | 300-9806Y | [1] | SENSOR GP-SPEED(SECONDARY, TIMING) | |
| 9. | 364-8174C | [1] | ELBOW AS | |
| | 117-0067 | [1] | ELBOW | |
| | 214-7566 | [2] | SEAL-O-RING | |
| 10. | 7W-9094C | [1] | SPACER(10.5X20X9-MM THK) | |
| 12. | 443-4151C | [1] | BRACKET | |
| 13. | 6V-5215M | [2] | BOLT(M8X1.25X16-MM) | |
| 14. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 3S-2093 | [2] | STRAP-CABLE | |
| 16. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
