纽荷兰零件查询(FL14E) - CRAWLER LOADER (E3.33/B[001]) - MANIPOLATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
798 次

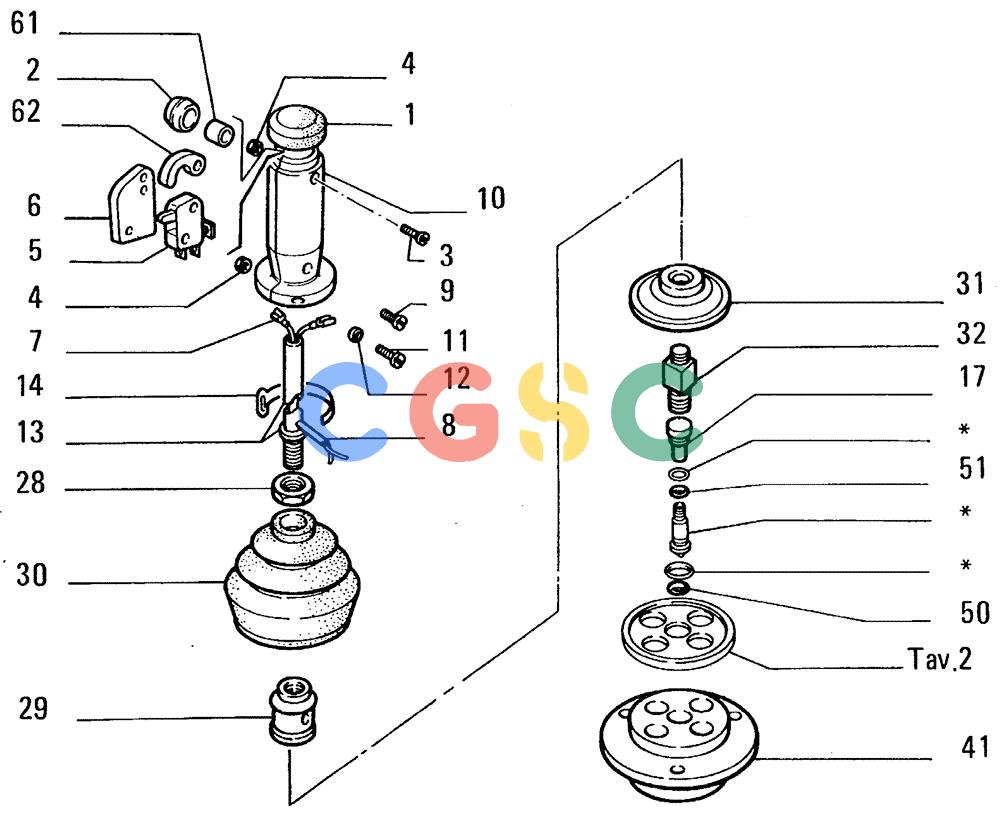

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79081154 | [1] | CAP | TORBOOT Superseded by part number: 71479733 |
| 2. | 79101455 | [1] | PUSH BUTTON | LEC |
| 3. | 79081146 | [1] | SCREW | LEC |
| 4. | 10794011 | [3] | NUT,M4, Cl 8 | TTF Superseded by part number: |
| 5. | 79081000 | [1] | SWITCH | TOR |
| 6. | 79101456 | [1] | SUPPORT | LEC |
| 7. | 79101457 | [2] | TERMINAL | LECWIRE TERMINAL |
| 8. | 79101458 | [1] | ELECTRIC CABLE | LECCABLE |
| 9. | 79081149 | [2] | SCREW | LEC |
| 10. | 79081156 | [2] | HANDLE GRIP | LECHANDGRIP |
| 11. | 10374811 | [2] | SCREW | MKT4x0,7x10 Superseded by part number: 10374801 |
| 12. | 14488309 | [2] | WASHER | LEC Superseded by part number: 89824840 |
| 13. | 79078716 | [1] | LEVER | MODROD Superseded by part number: 79078732 |
| 14. | 79013422 | [1] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 17. | 45483635 | [1] | SCREW | TOR Superseded by part number: 79065504 |
| 28. | 10717411 | [1] | THIN NUT,Thin, M14 x 2, Cl 04 | MKT14x2x8 Superseded by part number: 10717421 |
| 29. | 79078715 | [1] | BUSHING | LEC Superseded by part number: 79089922 |
| 30. | 45482730 | [1] | PROTECTION CAP | TORBOOT |
| 31. | 79081150 | [1] | CAP WASHER | LECPLATE |
| 32. | 79077324 | [1] | FLEXIBLE JOINT | TORUNIVERSAL JOINT |
| 41. | 79090068 | [1] | BODY | LEC |
| 50. | 79078693 | [1] | O-RING,6mm ID x 1.5mm Width | LEC0-RING |
| 51. | 79078691 | [1] | O-RING,5mm ID x 1.5mm Width | LEC0-RING Superseded by part number: S2230487 |
| 61. | 79101459 | [1] | BUSHING | LEC |
| 62. | 79101460 | [1] | HOSE,12.7mm ID x 1200mm L, SAE 100R16 | LEC |
