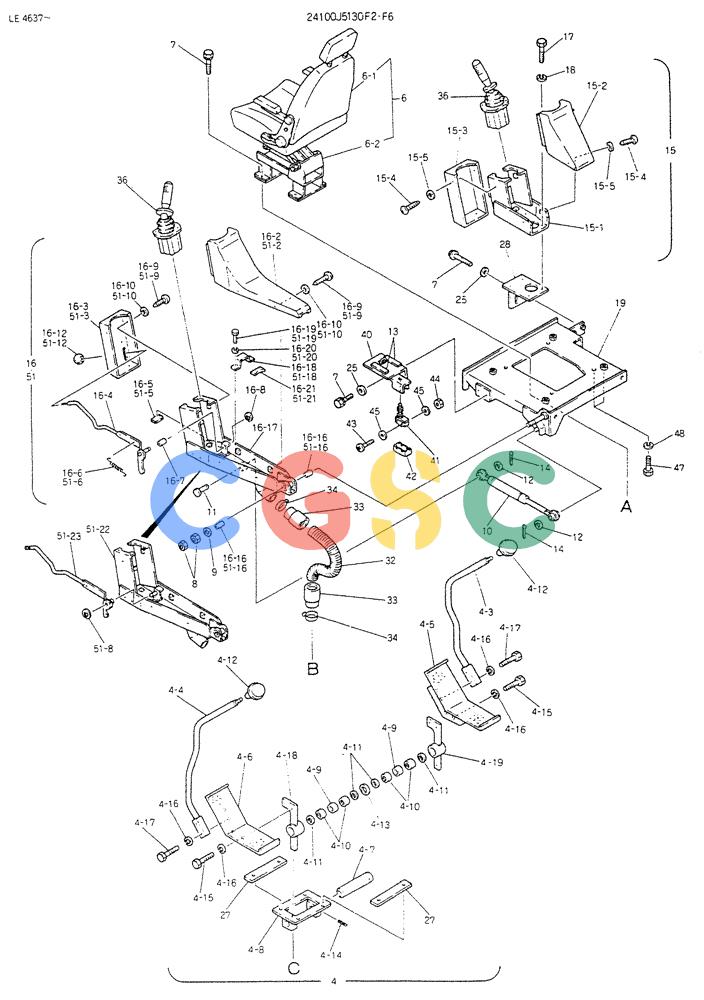

| . . | 24100J5130F2 | [1] | CONTROL ASSY, Serial Range: LE4637-LE4972 | |
| . . | 24100J5130F6 | [1] | CONTROL ASSY, Start Serial: LE4973 | |
| 2. | 2422N793 | [1] | PLATE, FLOOR | |
| 3. | 2416T10933 | [1] | SUPPORT | |
| 4. | 24100N2814F2 | [1] | LEVER ASSY, CONTROL | LEVER ASSY, CONTROL |
| 4-3. | 2406P2495D1 | [1] | LEVER, CONTROL | LEVER, CONTROL |
| 4-4. | 2406P2495D2 | [1] | LEVER, CONTROL | LEVER, CONTROL |
| 4-5. | 2406P2496D1 | [1] | PEDAL | KOB |
| 4-6. | 2406P2496D2 | [1] | PEDAL | KOB |
| 4-7. | 4019T12 | [1] | PIN | KOB |
| 4-8. | 4016P16 | [1] | BRACKET | KOB |
| 4-9. | 401PT20 | [2] | SPACER | |
| 4-10. | 4025Z8 | [4] | NEEDLE BEARING | KOBHEARING, ROLLER |
| 4-11. | 4045Z8 | [4] | OIL SEAL | KOB |
| 4-12. | 6Z1 | [2] | LEVER | KOB |
| 4-13. | 3611V012 | [1] | WASHER | KOB |
| 4-14. | ZP15D05065 | [1] | COTTER PIN | KOB |
| 4-15. | ZS16C10025 | [4] | SCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 4-16. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 4-17. | ZS16C10038 | [4] | CAPSCREW | |
| 4-18. | 2406T1678D1 | [1] | LINK | KOB |
| 4-19. | 2406T1678D2 | [1] | LINK | KOB |
| 5. | 2406R203D3 | [2] | CABLE | KOB Superseded by part number: 2406R203D6 |
| 6. | 24100N2863F1 | [1] | SEAT ASSY | SEAT ASSY |
| 6-1. | 24100N2863S1 | [1] | SEAT | SEAT |
| 6-2. | 24100U81S2 | [1] | SUSPENSION | KOBSUSPENSION |
| 7. | ZM11C10025 | [10] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025 |
| 8. | ZN16C16010 | [2] | NUT | KOB |
| 9. | ZW16X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 10. | 2417R63 | [1] | SPRING | KOB |
| 11. | 2419T3603 | [1] | PIN SHAFT | PIN SHAFT |
| 1?. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 13. | 2416Z312D17 | [2] | SHEET, RUBBER | SHEET, RUBBER |
| 14. | ZP15X02020 | [2] | SPLIT PIN | |
| 15. | 24100N2792F1 | [1] | SUPPORT ASSY | SUPPORT ASSY |
| 15-1. | 2416P7220 | [1] | SUPPORT | SUPPORT |
| 15-2. | 2414P2906 | [1] | COVER | KOB |
| 15-3. | 2414T1973 | [1] | COVER | COVER |
| 15-4. | ZS31C035014 | [6] | MACHINESCREW | |
| 15-5. | ZW11P05000 | [6] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 16. | 24100N2790F2 | [1] | SUPPORT ASSY, Serial Range: LE4637-LE4972 | SUPPORT ASSY, Serial Range: LE4637-LE4972 |
| 16-2. | 2414P2905 | [1] | COVER | KOB |
| 16-3. | 2414T1974 | [1] | COVER | |
| 16-4. | 2406P2491 | [1] | LEVER | KOB |
| 16-5. | 2416Z332 | [1] | SHEET | KOB |
| 16-6. | 2417Z252 | [1] | SPRING | KOB |
| 16-7. | 2415T10552D4 | [1] | SPACER | |
| 16-8. | ZR36X00600 | [1] | SNAP RING | KOBE-Ring -- Shaft 06mm x OD 12mm |
| 16-9. | ZS31C05014 | [8] | SCREW,Phillips Drive, Pan HD, M5 x 14mm | KOBM05x0.8x14mm |
| 16-10. | ZW11P05000 | [8] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 16-12. | 2406Z294D3 | [1] | GRIP | KOB |
| 16-16. | 2405U101D1612 | [2] | BUSHING | KOB |
| 16-17. | 2416N2801 | [1] | SUPPORT | |
| 16-18. | 2432T1818 | [1] | CLAMP | CLAMP |
| 16-19. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 16-20. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 16-21. | 2416T11070 | [1] | SEAT, RUBBER | SEAT, RUBBER |
| 17. | ZS18C08014 | [4] | SCREW,Hex, M8 x 14mm | KOBM08x1.25x14mm |
| 18. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 19. | 2416J785 | [1] | SUPPORT | SUPPORT |
| 24. | 2420Z699 | [3] | GROMMET | KOB |
| 25. | 2418T5373C2 | [4] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 26. | 2427P1801 | [1] | TANK | |
| 26-1. | 2444T7002 | [1] | COUPLING, PIPE | |
| 26-2. | 2418T10389 | [1] | TUBE | |
| 27. | 2418T10657 | [2] | PLATE | |
| 28. | 2416P7247 | [1] | SUPPORT | SUPPORT |
| 29. | ZS13C16100 | [4] | SCREW | KOBM16x2.0x100mm |
| 30. | 2422J1384 | [1] | FRAME, UPP | |
| 30-1. | 2422J1383 | [1] | DECK , SIDE | |
| 30-2. | 2416T1083002 | [1] | BRACKET | |
| 30-3. | 2422T435 | [1] | PLATE | |
| 30-4. | 2416P7197 | [1] | BRACKET | |
| 32. | 2444Z2256 | [1] | HOSE | HOSE |
| 33. | 2444Z2255 | [2] | CONNECTOR | CONNECTOR |
| 34. | ZC15X05000 | [2] | CLIP | KOB |
| 36. | 24100K1342F4 | [1] | CONTROL ASSY P.771-32 | |
| 37. | 241901422 | [1] | PIN | |
| 38. | 2427R469 | [1] | MAT, FLOOR | |
| 39. | 2427R468 | [1] | MAT, FLOOR | |
| 40. | 2416P8514 | [1] | SUPPORT | KOB |
| 41. | 2479Z932 | [1] | SWITCH | KOB |
| 42. | 2414Z265 | [1] | COVER | KOB |
| 43. | ZS31C04030 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOBM04x0.7x30mm |
| 44. | ZN16C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 45. | ZW16K04000 | [4] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
| 47. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 48. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 51. | 24100N2790F3 | [1] | SUPPORT ASSY, Start Serial: LE4973 | |
| 51-2. | 2414P2905 | [1] | COVER | KOB |
| 51-3. | 2414T1974 | [1] | COVER | |
| 51-5. | 2416Z332 | [1] | SHEET | KOB |
| 51-6. | 2417Z252 | [1] | SPRING | KOB |
| 51-8. | ZR36X00600 | [1] | SNAP RING | KOBE-Ring -- Shaft 06mm x OD 12mm |
| 51-9. | ZS3U05014 | [8] | MACHINESCREW | |
| 51-10. | ZW11P05000 | [8] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 51-12. | 2406Z294D3 | [1] | GRIP | KOB |
| 51-16. | 2405U101D1612 | [2] | BUSHING | KOB |
| 51-18. | 2432T1818 | [1] | CLAMP | CLAMP |
| 51-19. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 51-20. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 51-21. | 2416T11070 | [1] | SEAT, RUBBER | SEAT, RUBBER |
| 51-22. | 2416N3193 | [1] | SUPPORT | |
| 51-23. | 2406P2544 | [1] | LEVER | KOB |
