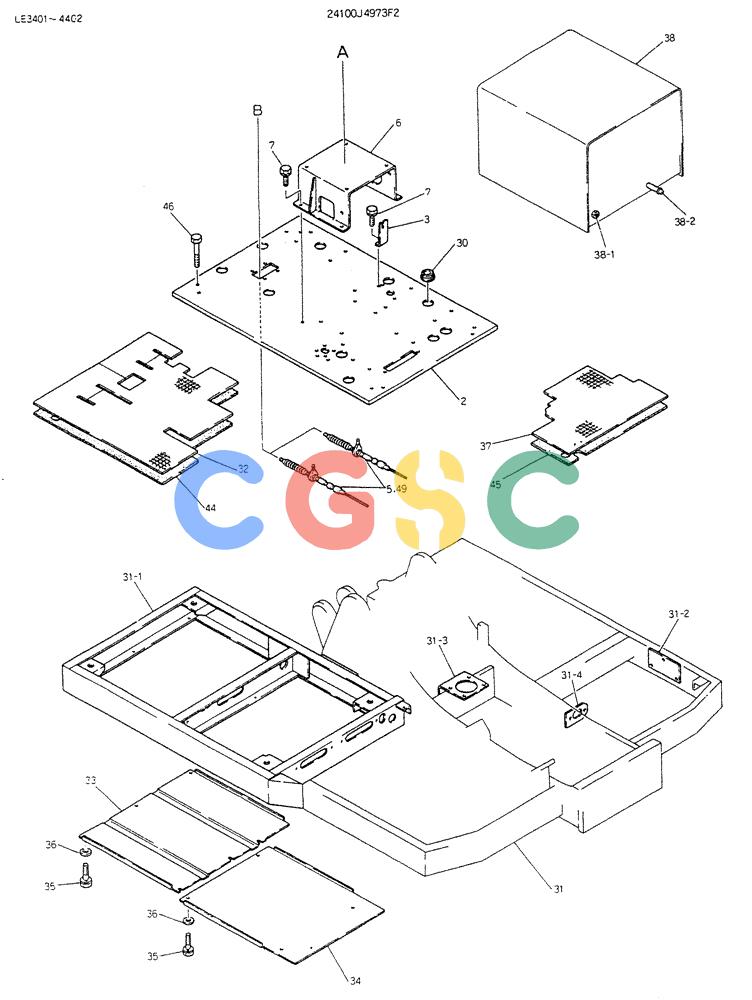

| . . | 24100J4973F2 | [1] | CONTROL ASSY | |
| 2. | 2422N678 | [1] | PLATE, FLOOR | |
| 3. | 2416T10933 | [1] | SUPPORT | |
| 4. | 24100N2814F1 | [1] | LEVER ASSY, CONTROL, Serial Range: LE3401-LE4161 | LEVER ASSY, CONTROL, Serial Range: LE3401-LE4161 |
| 4-1. | 2406T1666D1 | [1] | LINK | KOB |
| 4-2. | 2406T1666D2 | [1] | LINK | KOB |
| 4-3. | 2406P2495D1 | [1] | LEVER, CONTROL | LEVER, CONTROL |
| 4-4. | 2406P2495D2 | [1] | LEVER, CONTROL | LEVER, CONTROL |
| 4-5. | 2406P2496D1 | [1] | PEDAL | KOB |
| 4-6. | 2406P2496D2 | [1] | PEDAL | KOB |
| 4-7. | 4019T12 | [1] | PIN | KOB |
| 4-8. | 4016P16 | [1] | BRACKET | KOB |
| 4-9. | 4018T20 | [2] | SPACER | KOB |
| 4-10. | 4025Z8 | [4] | NEEDLE BEARING | KOB |
| 4-1 1. | 4045Z8 | [4] | OIL SEAL | KOB |
| 4-12. | 6Z1 | [2] | LEVER | KOB |
| 4-13. | 3611V012 | [1] | WASHER | KOB |
| 4-1 4. | ZP15D05065 | [1] | COTTER PIN | KOB |
| 4-15. | ZS16C10025 | [4] | SCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 4-16. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 4-17. | ZS16C10038 | [4] | CAPSCREW | |
| 5. | 2406R219D3 | [2] | FLEXIBLE CONTROL | KOBCABLE, CONTROL, Serial Range: LE3401-LE4161 |
| 6. | 2416P7201 | [1] | STAND, SEAT | STAND, SEAT |
| 7. | ZM11C10025 | [6] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025 |
| 10. | 24100N2790F1 | [1] | SUPPORT ASSY | SUPPORT ASSY |
| 10-1. | 2414N1861 | [1] | SUPPORT | |
| 10-2. | 2414P2905 | [1] | COVER | KOB |
| 10-3. | 2414T1974 | [1] | COVER | |
| 10-4. | 2406P2491 | [1] | LEVER | KOB |
| 10-5. | 2416Z332 | [1] | SHEET | KOB |
| 10-6. | 2417Z252 | [1] | SPRING | KOB |
| 10-7. | 2418T10552D4 | [1] | SPACER | KOB |
| 10-8. | ZR36X00800 | [1] | SNAP RING | KOBSNAP |
| 10-9. | ZS31C05014 | [1] | SCREW,Phillips Drive, Pan HD, M5 x 14mm | KOBM05x0.8x14mm |
| 10-10. | ZW11P05000 | [1] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 10-11. | 2406T1663 | [1] | LEVER, Serial Range: LE3401-LE4161 | |
| 10-12. | 2406Z294D2 | [1] | GRIP, Serial Range: LE3401-LE4161 | |
| 10-12. | 2406Z294D3 | [1] | GRIP | KOB, Start Serial: LE4162 |
| 10-13. | ZS16C08020 | [1] | SCREW | KOBCAPSCREW M08x1.25x20mm, Serial Range: LE3401-LE4161 Superseded by part number: ZS18C08020 |
| 10-14. | ZN16C08007 | [1] | NUT | KOBM08x1.25mm, Serial Range: LE3401-LE4161 Superseded by part number: ZN18C08007 |
| 10-15. | ZW22X08000 | [1] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm, Serial Range: LE3401-LE4161 Superseded by part number: 83990583 |
| 10-16. | 2405U101D1612 | [2] | BUSHING | KOB |
| 11. | ZN16C16010 | [2] | NUT | KOB |
| 12. | ZW16X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 13. | 2417R63 | [1] | SPRING | KOB |
| 14. | 2419T3603 | [1] | PIN | PIN |
| 15. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 19. | 2416Z312D17 | [2] | SHEET, RUBBER | SHEET, RUBBER |
| 20. | ZP15K02020 | [2] | SPLIT PIN | KOB |
| 21. | 24100N27922F1 | [1] | SUPPORT ASSY | |
| 21-1. | 2416P7220 | [1] | SUPPORT | SUPPORT |
| 31-2. | 2414P2906 | [1] | COVER | KOB |
| 21-3. | 2414T1973 | [1] | COVER | COVER |
| 21-4. | ZS31C05014 | [6] | SCREW,Phillips Drive, Pan HD, M5 x 14mm | KOBM05x0.8x14mm |
| 21-5. | ZW11P05000 | [6] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 22. | ZS11C08014 | [4] | CAPSCREW M08x1.25x14mm | CAPSCREW M08x1.25x14mm |
| 23. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 24. | 2416N2771 | [1] | SUPPORT | SUPPORT |
| 25. | 2479Z892 | [1] | SWITCH | KOB |
| 27. | ZS31C03014 | [4] | SCREW,Phillips Drive, Pan HD, M3 x 14mm | KOBM03x0.5x14mm |
| 28. | ZN11C03003 | [2] | NUT | KOBM03x0.5mm |
| 29. | ZW22X03000 | [4] | WASHER | KOB |
| 30. | 2420Z699 | [3] | GROMMET | KOB |
| 31. | 2422J1347 | [1] | FRAME | |
| 31-1. | 2422J1346 | [1] | DECK, SIDE | |
| 31-2. | 2416P7197 | [1] | BRACKET | |
| 31-3. | 2416T10833D2 | [1] | BRACKET | |
| 31-4. | 2422T435 | [1] | PLATE | |
| 32. | NSS | [1] | NOT SOLD SEPARAT | CONMAT, FLOOR |
| 33. | 2414P2916 | [1] | COVER | |
| 34. | 2414T19S6 | [1] | COVER | |
| 35. | ZM11C10030 | [10] | SCREW | KOBM10x1.50x30mm (Incls. Lockwasher) |
| 36. | 2418T5373C2 | [14] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 37. | NSS | [1] | NOT SOLD SEPARAT | CONMAT, FLOOR |
| 38. | 2427P1801 | [1] | TANK | |
| 38-1. | 2444T70D2 | [1] | COUPLING, PIPE | |
| 38-2. | 2418T10382 | [1] | TUBE | |
| 39. | 2448U229F1 | [1] | SEAT | KOBOPERATORS |
| 40. | 2418T10657 | [2] | PLATE | |
| 41. | 24100X1345F1 | [1] | REMOTE-CONTROL ASSY P.722-35 | |
| 42. | 2416P7246 | [1] | SUPPORT | SUPPORT |
| 43. | 2416P7247 | [1] | SUPPORT | SUPPORT |
| 44. | 2427R437 | [1] | MAT, FLOOR | |
| 45. | 2427R438 | [1] | MAT, FLOOR | |
| 46. | ZS13C16130 | [4] | SCREW | KOB |
| 48. | 24100N2814F2 | [1] | LEVER ASSY, CONTROL, Start Serial: LE4162 | LEVER ASSY, CONTROL, Start Serial: LE4162 |
| 48-3. | 2406P2495D1 | [1] | LEVER, CONTROL | LEVER, CONTROL |
| 48-4. | 2406P2495D2 | [1] | LEVER, CONTROL | LEVER, CONTROL |
| 48-5. | 2406?3496D1 | [1] | PEDAL | |
| 48-6. | NSS | [1] | NOT SOLD SEPARAT | CONPEDAL |
| 48-7. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 48-8. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET |
| 48-9. | NSS | [2] | NOT SOLD SEPARAT | CONSPACER |
| 48-10. | NSS | [4] | NOT SOLD SEPARAT | CONBEARING, ROLLER |
| 48-11. | NSS | [4] | NOT SOLD SEPARAT | CONSEAL, OIL |
| 48-12. | 6Z1 | [2] | LEVER | KOB |
| 48-13. | 3611Z012 | [1] | WASHER | |
| 48-14. | NSS | [1] | NOT SOLD SEPARAT | CONCOTTER-PIN |
| 48-15. | ZS16C10025 | [4] | SCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 48-16. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 48-17. | ZS16C10038 | [4] | CAPSCREW | |
| 48-18. | 2406T1678D1 | [1] | LINK | KOB |
| 48-19. | 2406T1678D2 | [1] | LINK | KOB |
| 49. | 2406R203D3 | [2] | CABLE | KOB, Start Serial: LE4162 Superseded by part number: 2406R203D6 |
