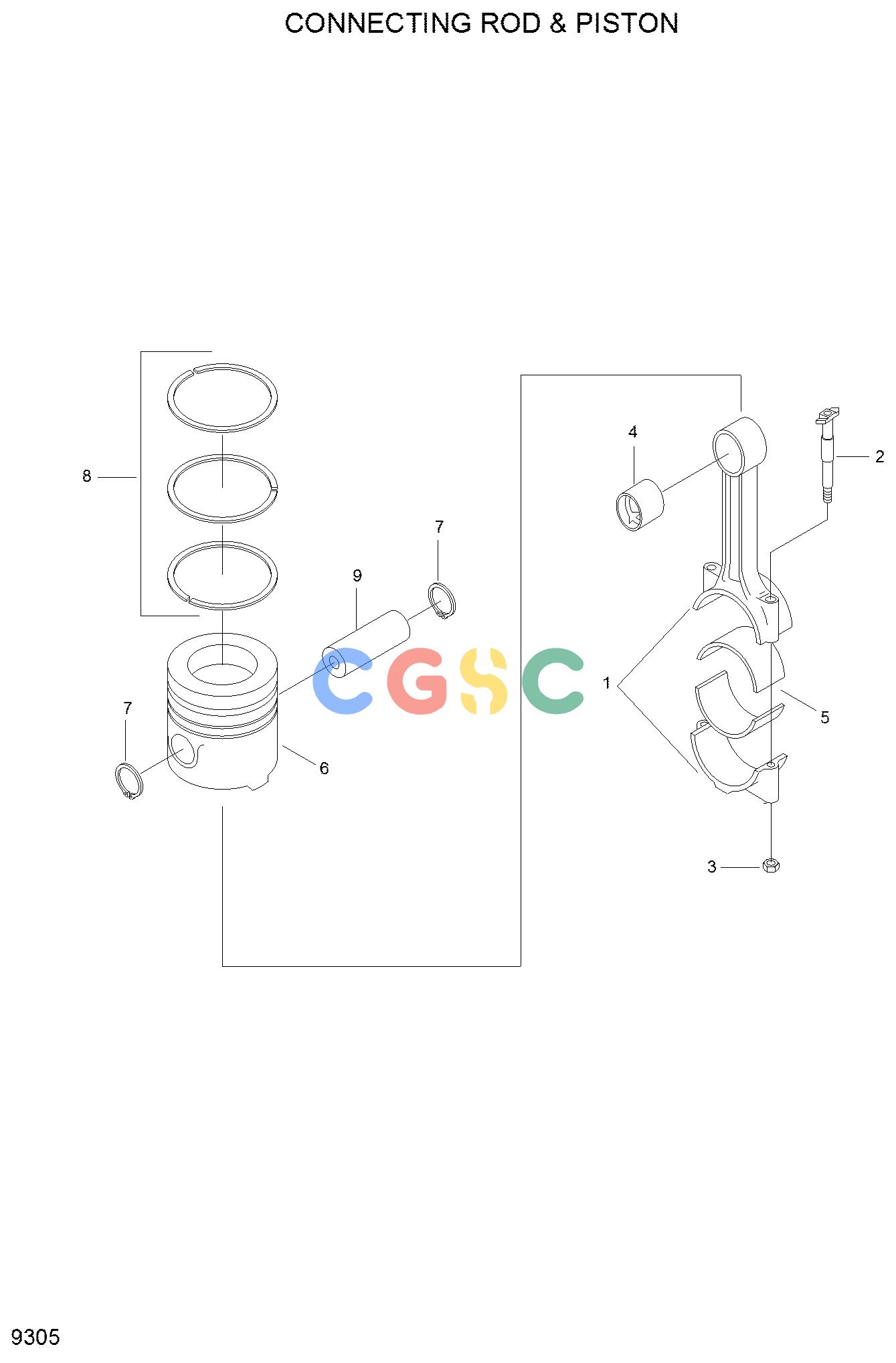

现代零件查询R360LC-7 CONNECTING ROD & PISTONEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
3901383
|
[6] |
ROD-ENGINE CONN
|
|
| N1. |
3924350
|
[1] |
ROD-ENGINE CONN
|
|
| 2. |
3928870
|
[2] |
BOLT-CONN ROD
|
|
| 3. |
3934864
|
[2] |
NUT-CONN ROD
|
|
| 4. |
3913990
|
[1] |
BUSHING
|
|
| 5. |
3901430
|
[12] |
BEARING-CONN ROD
|
|
| 5. |
3901431
|
[AR] |
BEARING-C/ROD(0.01 OS)
|
|
| 5. |
3901432
|
[AR] |
BEARING-C/ROD(0.02 OS)
|
|
| 5. |
3901433
|
[AR] |
BEARING-C/ROD(0.03 OS)
|
|
| 5. |
3901434
|
[AR] |
BEARING-C/ROD(0.04 OS)
|
|
| . |
3800316
|
[6] |
KIT-ENGINE PISTON
|
|
| 6. |
3943446
|
[1] |
PISTON-ENGINE
|
|
| 7. |
3920692
|
[2] |
RING-RETAINER
|
|
| 8. |
3802429
|
[1] |
SET-PISTON RING
|
|
| 9. |
3934046
|
[6] |
PIN-PISTON
|
|
| N. |
@
|
[AR] |
NOT INDIVIDUALLY SUPPLIED
|
|
