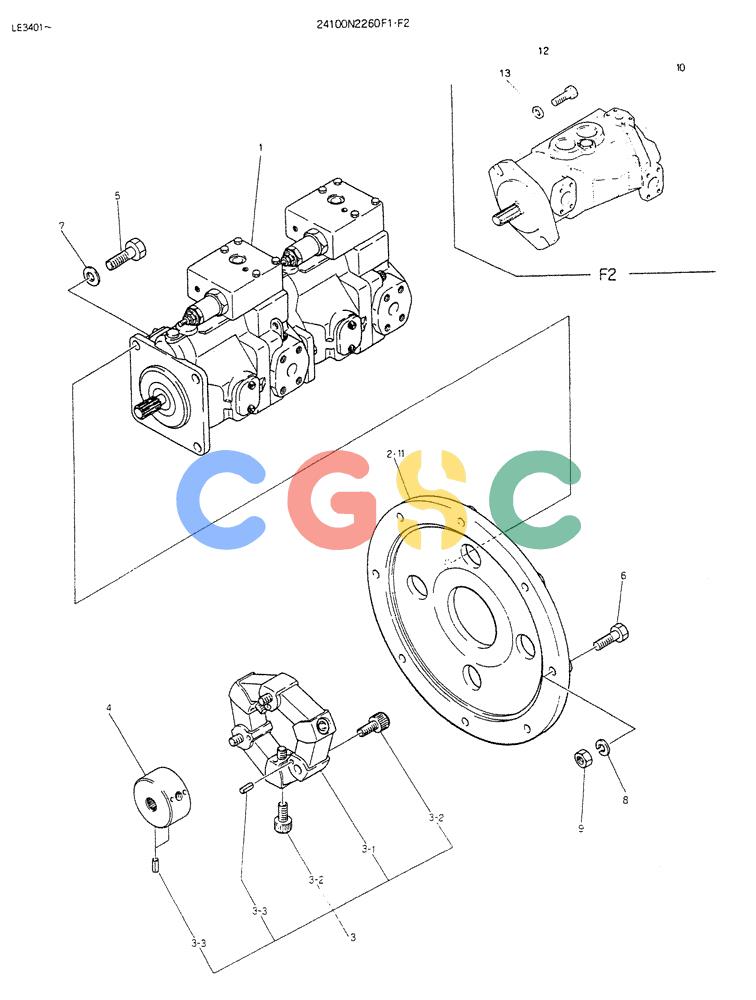

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-004) - PUMP ASSY, CONNECT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
138 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY, CONNECT, Serial Range: LE3401-LE4636 |
| . . | 24100N2260F2 | [1] | PUMP ASSY, Start Serial: LE4637 | PUMP ASSY, Start Serial: LE4637 |
| 1. | 2441U369F1 | [1] | PUMP | KOB, Serial Range: LE3401-LE4636 Superseded by part number: 2437U158F2M |
| 2. | 2416N2289 | [1] | BRACKET, Serial Range: LE3401-LE4636 | |
| 3. | 2418U156F1 | [1] | COUPLING | KOB |
| 3-1. | 2418U156S1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 3-2. | 2418U156S2 | [6] | CAPSCREW | CAPSCREW |
| 3-3. | ZP26D05010 | [9] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 4. | 2418P7687 | [1] | HUB, COUPLING | HUB, COUPLING |
| 5. | ZS13C12030 | [4] | CAPSCREW | KOBSCREW M12x1.75x30mm, Serial Range: LE3401-LE4636 Superseded by part number: ZS18C12030 |
| 6. | ZS13C10045 | [8] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 7. | R16T0152D1 | [4] | WASHER | KOBFlat -- ID 13 x OD 24 x Th 3.2mm, Serial Range: LE3401-LE4636 |
| 8. | ZW22X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 9. | ZN12C10008 | [8] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 10. | 2437U158F2 | [1] | HYDRAULIC PUMP | KOB, Start Serial: LE4637- |
| 11. | 2416N2806 | [1] | BRACKET, Start Serial: LE4637- | |
| 12. | ZS13C16040 | [2] | SCREW | KOBM16x2.0x40mm, Start Serial: LE4637 |
| 13. | R16T0152D2 | [2] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm, Start Serial: LE4637- |
