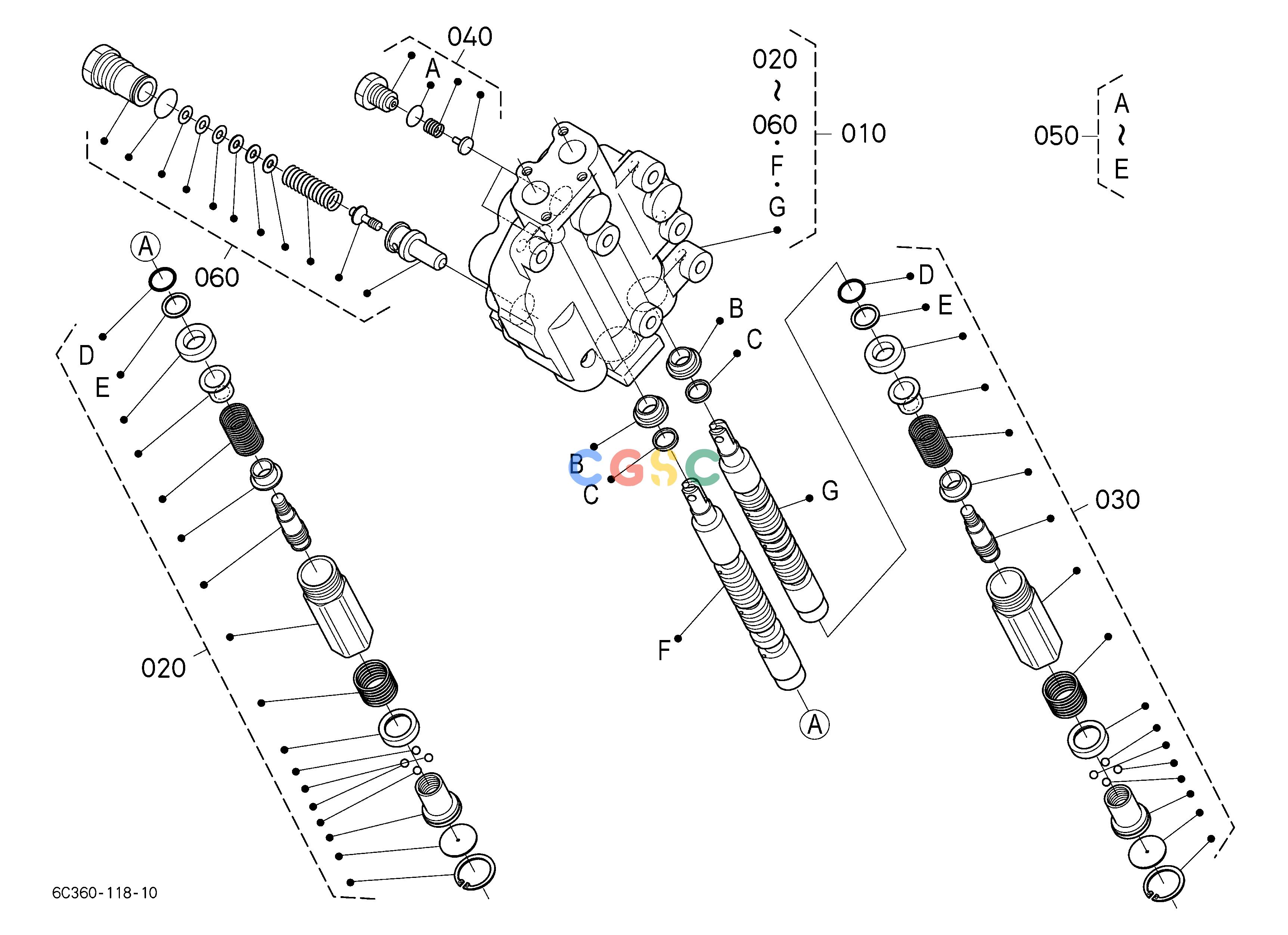

久保田零件查询U75102 LOADER VALVE [COMPONENT PARTS] [OPTION] ## S.No.>=53673 S.No.;>=53673 OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
349 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW54500100
|
[1] |
ASSY VALVE,CONTROL
|
10.7800(lbs); 4.900
|
| 010. |
YW54500102
|
[1] |
ASSY VALVE,CONTROL
|
10.7800(lbs); 4.900
|
| 020. |
YW36891100
|
[1] |
KIT PLUG,DETENT
|
0.7040(lbs); 0.320
|
| 030. |
YW36892100
|
[1] |
KIT PLUG,DETENT
|
0.7040(lbs); 0.320
|
| 040. |
YW23293100
|
[2] |
VALVE,KIT(LOAD CHECK)
|
0.0880(lbs); 0.040
|
| 040. |
YW36893100
|
[2] |
KIT VALVE,LOAD CHECK
|
0.0946(lbs); 0.043
|
| 050. |
YW36894100
|
[1] |
KIT SEAL
|
0.2200(lbs); 0.100
|
| 060. |
YW23995100
|
[1] |
KIT VALVE,RELIEF
|
0.2200(lbs); 0.100
|
