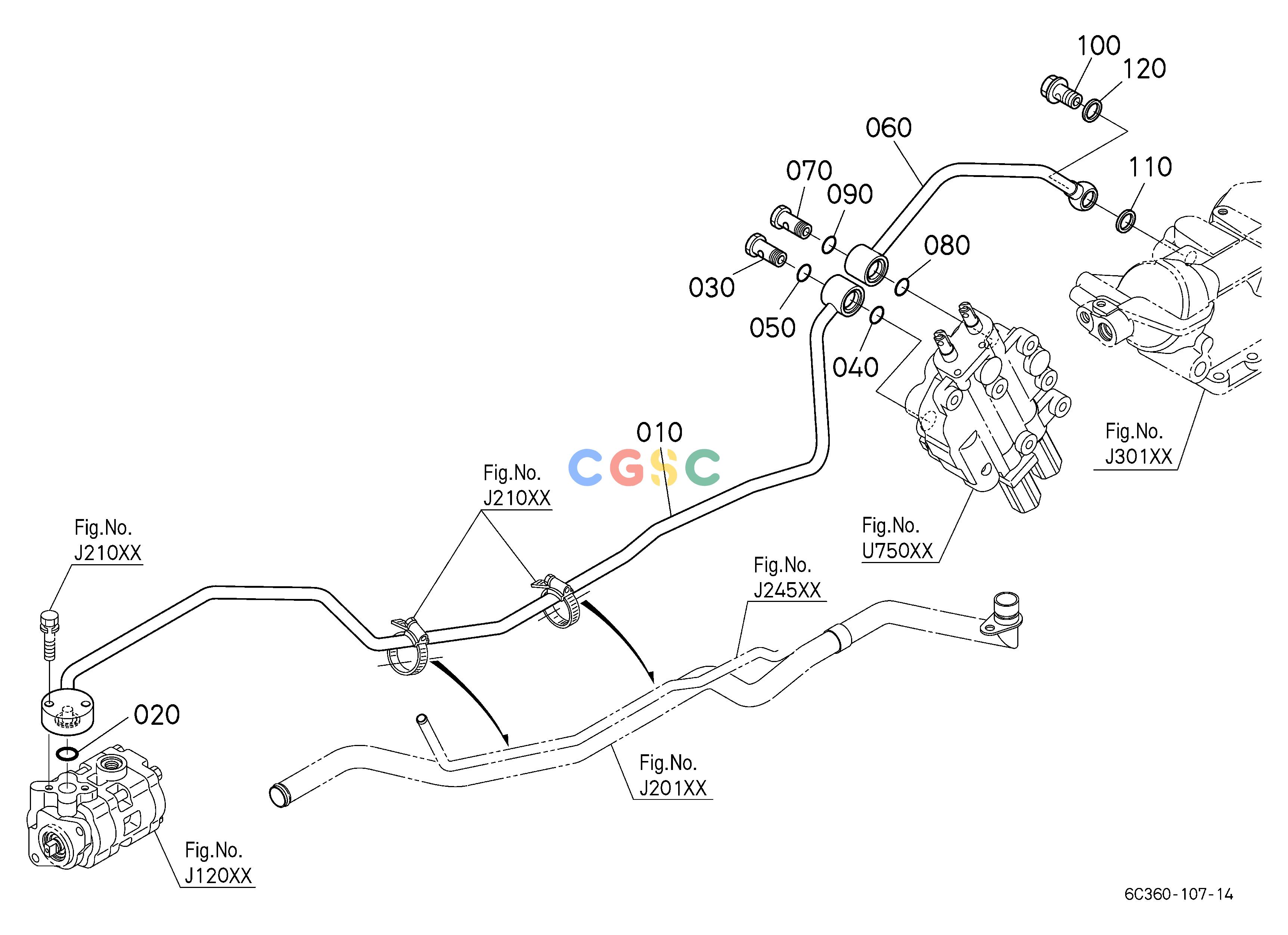

久保田零件查询U75500 LOADER VALVE KIT 4 (HYDRAULIC DELIVERY PIPE) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C36039213
|
[1] |
PIPE,DELIVERY
|
1.6500(lbs); 0.750
|
| 010. |
6C36039214
|
[1] |
PIPE,DELIVERY
|
1.6500(lbs); 0.750
|
| 020. |
0481700200
|
[1] |
O RING
|
0.0242(lbs); 0.011
|
| 030. |
7553861320
|
[1] |
BOLT,JOINT
|
0.2090(lbs); 0.095
|
| 040. |
0481700210
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 060. |
6C36099510
|
[1] |
PIPE,DELIVERY
|
0.4840(lbs); 0.220
|
| 060. |
6C36039233
|
[1] |
PIPE,DELIVERY
|
0.4840(lbs); 0.220
|
| 070. |
7553861320
|
[1] |
BOLT,JOINT
|
0.2090(lbs); 0.095
|
| 080. |
0481700210
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 100. |
6C07039290
|
[1] |
BOLT,JOINT
|
0.1100(lbs); 0.050
|
| 110. |
1410253620
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 120. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
