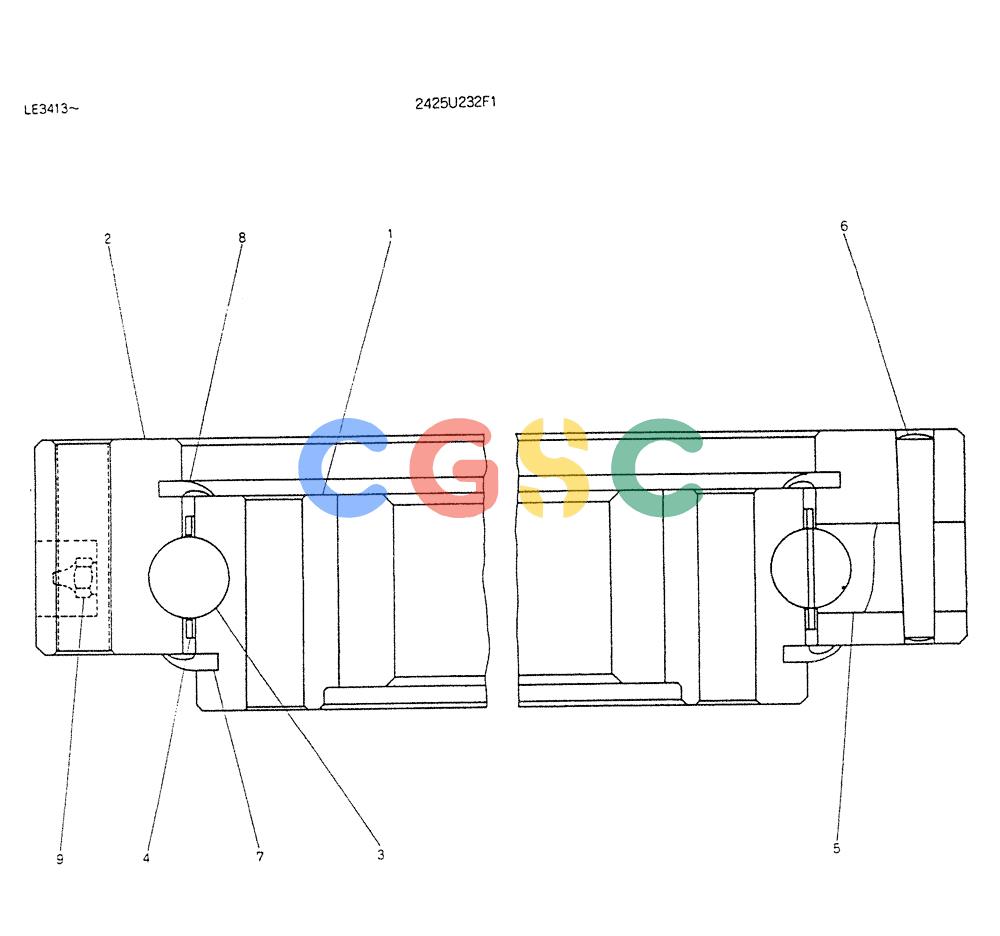

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (05-010) - BEARING ASSY P/N 2425U232F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
787 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2425U232F1 | [1] | RING | KOBBEARNG Superseded by part number: 2425U261F1 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONRACE, INNER |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRACE, OUTER |
| 3. | NSS | [72] | NOT SOLD SEPARAT | CONBALL |
| 4. | NSS | [72] | NOT SOLD SEPARAT | CONSPACER |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPIN, TAPER |
| 7. | 2425U139S7 | [1] | SEAL | KOB |
| 8. | 2425U139S8 | [1] | SEAL | KOBUPP |
| 9. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
