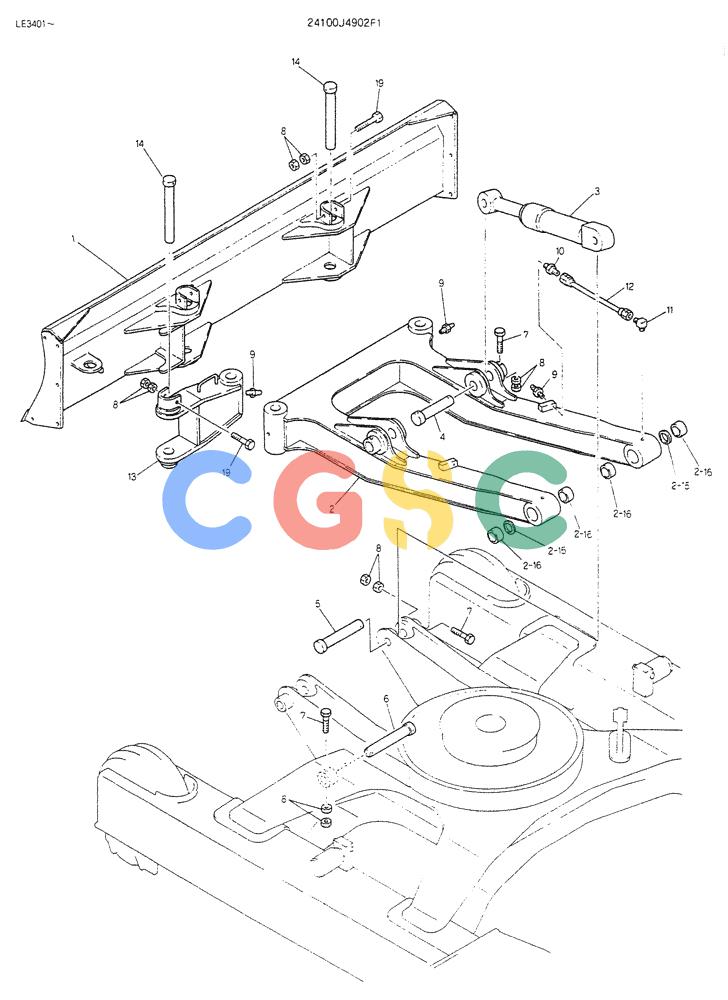

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (05-012) - BLADE ASSY P/N 24100J4902F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
407 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4902F1 | [1] | BLADE ASSY | BLADE ASSY |
| 1. | 2412J552 | [1] | BLADE | |
| 2. | 2412J553F1 | [1] | ARM | |
| 2-15. | 2418T10003 | [2] | COLLAR CLAMP | KOB |
| 2-16. | 2405T947 | [4] | BUSHING | KOB |
| 3. | 2438U693F1 | [2] | CYLINDFR | |
| 4. | 2419T3337D2 | [2] | PIN | KOB |
| 5. | 2419T3395 | [2] | PIN | KOB |
| 6. | 2419T3337D1 | [2] | PIN | KOB |
| 7. | ZS13C10085 | [6] | SCREW | KOBM10x1.50x85mm Superseded by part number: ZS18C10085 |
| 8. | ZN12C10008 | [18] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 9. | ZG91V02000 | [5] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| 10. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 11. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 12. | 2420R349D6 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D050 |
| 13. | 2406N759 | [1] | LINK | KOB |
| 14. | 2419T3570 | [3] | PIN | KOB |
| 19. | ZS13C10103 | [3] | CAPSCREW | |
