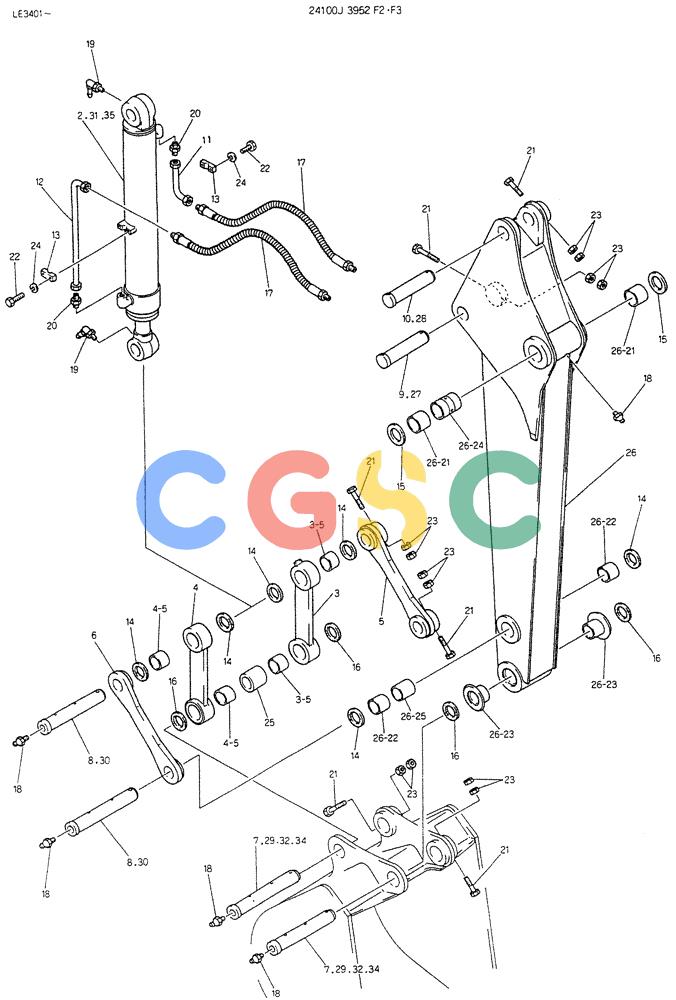

| . . | 24100J3952F2 | [1] | ARM ASSY, 1.7M, Serial Range: LE3401-LE4018 | |
| . . | 24100J3952F3 | [1] | ARM ASSY, Start Serial: LE4019 | |
| 2. | 2438U257F5 | [1] | CYLINDER CYLINDER, BUCKET (31), Serial Range: LE3401-LE4018 | CYLINDER CYLINDER, BUCKET (31), Serial Range: LE3401-LE4018 |
| 3. | 2406P2299D1F1 | [1] | LINK | KOB |
| 3-5. | 2405T596C2 | [2] | BUSHING | KOB |
| 4. | 2406P2299D1F1 | [1] | LINK | KOB |
| 4-5. | 2405T596C2 | [2] | BUSHING | KOB |
| 5. | 2406P2300D1 | [1] | LINK, IDLER | LINK, IDLER |
| 6. | 2406P2300D2 | [1] | LINK | KOB |
| 7. | 2419P1396 | [2] | PIN (29) LE3401, Serial Range: -LE3496 | PIN (29) LE3401, Serial Range: -LE3496 |
| 8. | 2419P1395 | [2] | PIN (30), Serial Range: LE3401-LE3496 | PIN (30), Serial Range: LE3401-LE3496 |
| 9. | 2419P1398 | [1] | PIN (27), Serial Range: LE3401-LE3496 | |
| 10. | 2419P1399 | [1] | PIN (28), Serial Range: LE3401-LE3496 | |
| 11. | 2418P4168 | [1] | TUBE | TUBE |
| 12. | 2418P4169 | [1] | TUBE | KOB |
| 13. | 2416T3204 | [2] | CLAMP | KOB |
| 14. | 2445R138D1 | [6] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 15. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 16. | 2445R220D5 | [4] | SEAL,50mm ID x 65mm OD x 5mm Thk | KOBDust -- ID 50 x OD 65 x Th 5mm Superseded by part number: 71436184 |
| 17. | ZX57N08080 | [2] | HOSE | KOB |
| 18. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 19. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 20. | ZK23E18008 | [2] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 21. | ZS13C12110 | [6] | SCREW | KOB Superseded by part number: ZS18C12110 |
| 22. | ZS16C08030 | [4] | CAPSCREW M08x1.25x30mm | CAPSCREW M08x1.25x30mm |
| 23. | ZN17C12010 | [12] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 24. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 25. | 2416T8738 | [1] | SPACER | KOB |
| 26. | 2411J1682F1 | [1] | ARM | |
| 26-21. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 26-22. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 26-23. | 2405P258 | [2] | BUSHING | KOB |
| 26-24. | 2418T10048 | [1] | BUSHING | KOBSPACER, Serial Range: LE3401-LE4159 Superseded by part number: 2418T10843 |
| . . | 2418T10843 | [1] | SPACER | KOB, Start Serial: LE4160 |
| 26-25. | 2418T10049 | [1] | SPACER, Serial Range: LE3401-LE4159 | SPACER, Serial Range: LE3401-LE4159 |
| . . | 2418T10842 | [1] | SPACER | KOB, Start Serial: LE4160 |
| 27. | 2419P1555D1 | [1] | PIN, Start Serial: LE3497 | PIN, Start Serial: LE3497 |
| 28. | 2419P1554 | [1] | PIN, Start Serial: LE3497 | PIN, Start Serial: LE3497 |
| 29. | 2419P1565D2 | [2] | PIN (32), Serial Range: LE3497-LE4066 | PIN (32), Serial Range: LE3497-LE4066 |
| 30. | 2419P1565D1 | [2] | PIN | KOB, Start Serial: LE3497 |
| 31. | 2438U717F2 | [1] | CYLINDER, BUCKET (35), Serial Range: LE4019-LE4114 | |
| 32. | 2419P1584 | [2] | PIN (34), Serial Range: LE4067-LE4236 | |
| 34. | 2419P1617D1 | [2] | PIN, Start Serial: LE4237 | PIN, Start Serial: LE4237 |
| 35. | 2438U717F3 | [1] | CYLINDER | KOB, Start Serial: LE4115 |
