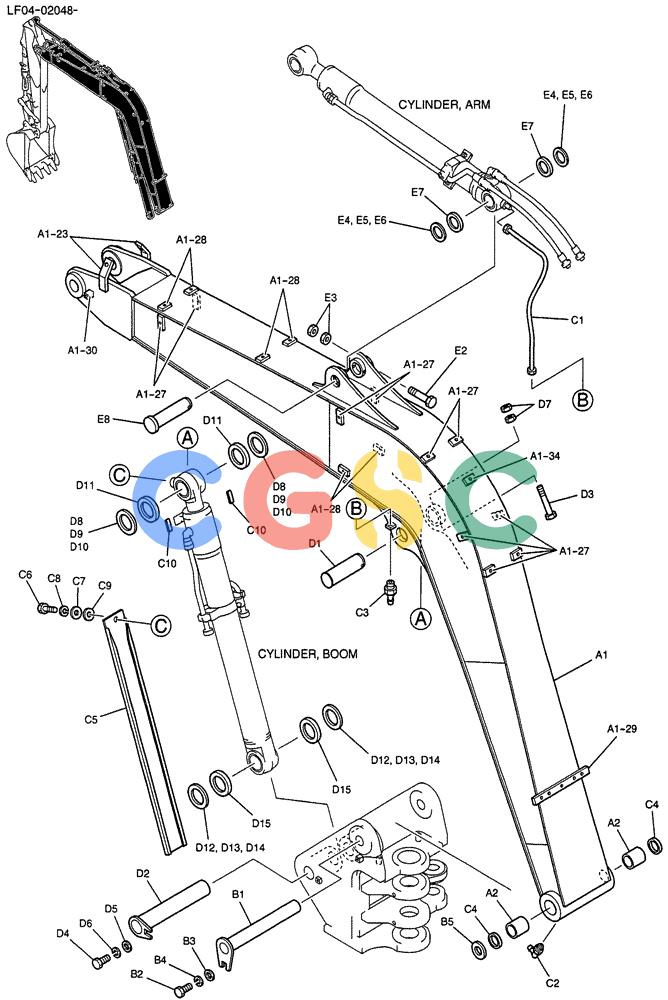

纽荷兰零件查询(E80) - MIDI CRAWLER EXCAVATOR ASN LF04-02001 (03-001) - BOOM ASSY, STANDARD 3.72M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF02B00001F1 | [1] | BOOM | KOBASSY |
| A1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBOOM, HOE |
| A1-23. | LF02B01028P1 | [2] | BRACKET | KOB |
| A1-27. | HY35B10032G1 | [10] | BLOCK | KOBTAPPED |
| A1-28. | 2416T9878 | [6] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTAPPED |
| A1-29. | LF02B01002P1 | [1] | BLOCK | KOBTAPPED |
| A1-30. | YT02B01015P1 | [1] | BLOCK | KOBTAPPED |
| A1-34. | 2416T10838D3 | [1] | BLOCK | KOBTAPPED |
| A2. | LE02B01008P1 | [2] | BUSHING | KOB |
| . . | LF02B00004F1 | [1] | BOOM INSTAL | |
| B1. | LF02B01006P2 | [1] | PIN | KOB |
| B2. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBCap |
| B3. | 2418T21137 | [1] | WASHER | KOB |
| B4. | ZW26X10000 | [1] | LOCK WASHER | KOB |
| B5. | YR02B01266D3 | [1] | SHIM | KOB(0.5) |
| . . | LF02B00007F1 | [1] | BOOM GROUP | |
| C1. | 2444R1117D095 | [1] | HOSE,6.4mm ID x 950mm L | KOB |
| C2. | ZG91U02000 | [1] | LUBE NIPPLE | KOB |
| C3. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| C4. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDUST |
| C5. | YR02B01035P1 | [1] | COVER | KOB |
| C6. | 2420T7541 | [1] | SCREW | KOBCAP |
| C7. | 2417T539 | [1] | SPRING | KOB |
| C8. | ZW26X12000 | [1] | WASHER | KOB |
| C9. | 2418T22593 | [1] | WASHER | KOB |
| C10. | PY02B01064P1 | [2] | TUBE | KOB |
| . . | LF02B00005F1 | [1] | CYLINDER INSTAL | |
| D1. | YT02B01026P1 | [1] | PIN | KOB |
| D2. | LF02B01008P1 | [1] | PIN | KOB |
| D3. | HS18C12125G2 | [1] | SCREW | KOBCAP |
| D7. | ZN18C12010 | [2] | NUT | KOB |
| D8. | YT02B01008D1 | [1] | SHIM | KOB(0.5) |
| D9. | B16T0442D93 | [1] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOB(0.9) |
| D10. | YT02B01008D2 | [1] | SHIM | KOB(1.2) |
| D11. | YR02B01262P1 | [2] | SHIM | KOB(2.0) |
| D12. | B16T0442D82 | [1] | SHIM,120mm OD x 77mm ID x 0.5mm Thk | KOB(0.5) |
| D13. | B16T0442D81 | [1] | SHIM,120mm OD x 77mm ID x 0.9mm Thk | KOB(0.9) |
| D14. | B16T0442D80 | [1] | SHIM,120mm OD x 77mm ID x 1.2mm Thk | KOB(1.2) |
| D15. | YR02B01261P1 | [2] | SHIM,2mm Thk | KOB(2.0) |
| . . | YT02B00006F2 | [1] | CYLINDER INSTAL (ARM) | |
| E2. | HS18C12115G2 | [1] | SCREW,M12 x 115mm, Cl 10.9 | KOBCAP |
| E4. | B16T0442D56 | [1] | SHIM,0.5mm Thk | KOB |
| E5. | B16T0442D43 | [1] | SHIM,0.9mm Thk | KOB |
| E6. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB(1.2) |
| E7. | PY02B01028P1 | [2] | SHIM,2.0mm Thk | KOB |
| E8. | YT02B01025P1 | [1] | PIN | KOB |
