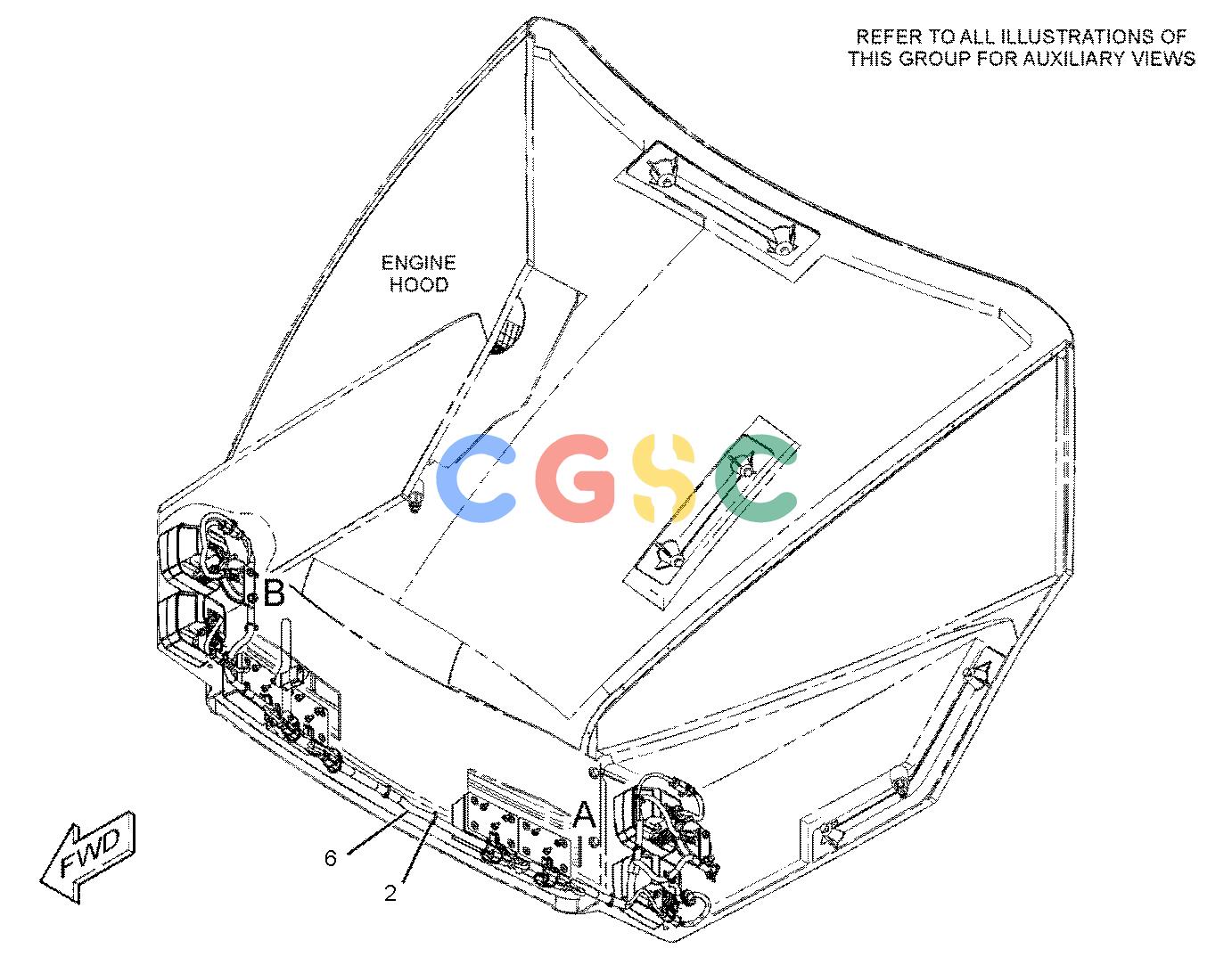

卡特零件查询（730） 274-9785: WIRING GP-LIGHTING
广数供应链运营团队, 15 02月, 2025，浏览：
859 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-6466Y | [2] | LAMP GP-SIGNAL(24-VOLT)(FRONT TURN) | |
| 2. | 3S-2093 | [22] | STRAP-CABLE | |
| 3. | 162-5402Y | [2] | LAMP GP-SIGNAL(24-VOLT)(FRONT) | |
| 4. | 171-7213Y | [2] | LAMP GP-HEAD(24-VOLT, 65-WATT)(LOW BEAM) | |
| 5. | 171-7214Y | [2] | LAMP GP-HEAD(24-VOLT, 65-WATT)(HIGH BEAM) | |
| 6. | 270-7452 | [1] | HARNESS AS-LIGHTING | |
| | 9W-0852 | [10] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [11] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 9W-0844 | [22] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(20-CM) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 7. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 8. | 174-7875 | [1] | HORN AS(24-VOLT, HIGH TONE) | |
| 9. | 4P-7581 | [1] | CLIP(LADDER) | |
| 10. | 5C-2890M | [12] | NUT(M6X1-THD) | |
| 11. | 6K-8180 | [8] | GROMMET | |
| 12. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 14. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 16. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
