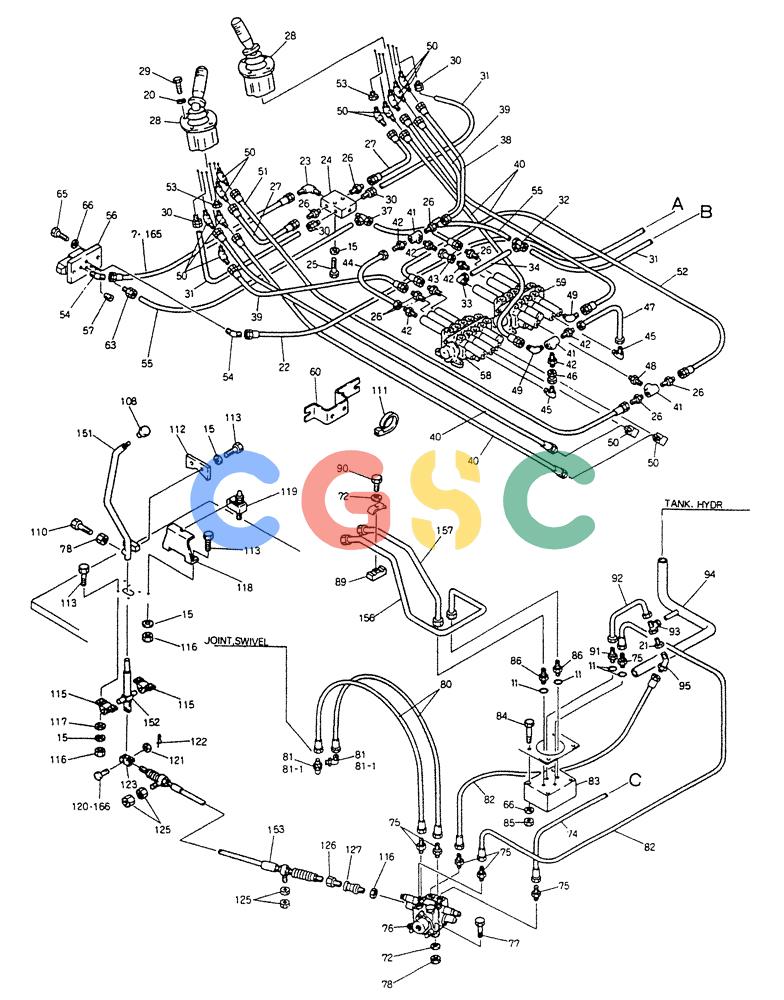

| . . | 24100X1342F2 | [1] | CONTROL ASSY, Serial Range: LE3041-LE4636 | |
| . . | 24100X1342F3 | [1] | CONTROL ASSY, Start Serial: LE4637 | |
| 1. | R18P0163D43 | [1] | HOSE, Serial Range: LE3401-LE4636 | |
| 2. | ZC15X03300 | [4] | CLIP | KOB |
| 3. | 2418P9767 | [1] | TUBE, Serial Range: LE3401-LE4636 | |
| 4. | ZK33F22012 | [1] | ELBOW | KOB |
| 5. | ZD12P02240 | [1] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 6. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) (PF3/8), Serial Range: LE3401-LE4636 |
| 7. | 2420R537D045 | [2] | HOSE,9.60mm ID x 450mm L | KOB, Serial Range: LE3401-LE4636 Superseded by part number: HX21E06045DX |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONELBOW |
| 8-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 9. | 2446R151F1 | [1] | ELEMENT | KOBFILTER, LINE Superseded by part number: 2446R183F1 |
| 9-1. | 2446R151S1 | [1] | HEAD | KOB |
| 9-2. | R36P0019 | [1] | HYDRAULIC OIL FILTER | KOB |
| 9-3. | 45Z91D84 | [1] | O-RING | KOBID 56.74 ± 0.25 OD 63.80mm |
| 9-4. | 2446R151S4 | [1] | RING | KOB |
| 9-5. | 2446R151S5 | [1] | CASE | KOB |
| 10. | 2444T1793 | [1] | HYD CONNECTOR | KOB |
| 11. | ZD12P01800 | [8] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | 2436U834F1 | [1] | VALVE RELIEF | VALVE RELIEF |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONCAPSCREW |
| 15. | ZW26X08000 | [10] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 16. | 2418T7100 | [2] | SPACER | SPACER |
| 17. | NSS | [2] | NOT SOLD SEPARAT | CONCAPSCREW |
| 18. | NSS | [2] | NOT SOLD SEPARAT | CONNUT |
| 19. | NSS | [2] | NOT SOLD SEPARAT | CONWASHER |
| 20. | ZW26X06000 | [11] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 21. | ZH22Z06000 | [2] | CONNECTION | KOBCONNECTOR |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
| 23. | NSS | [1] | NOT SOLD SEPARAT | CONELBOW |
| 24. | NSS | [1] | NOT SOLD SEPARAT | CONBLOCK |
| 25. | NSS | [2] | NOT SOLD SEPARAT | CONCAPSCREW |
| 26. | ZH22Z04000 | [8] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | NSS | [2] | NOT SOLD SEPARAT | CONHOSE |
| 28. | NSS | [2] | NOT SOLD SEPARAT | CONVALVE,PILOT |
| 29. | NSS | [8] | NOT SOLD SEPARAT | CONCAPSCREW |
| 30. | ZH21K08004 | [7] | HYD CONNECTOR | KOB |
| 31. | ZX15K08140 | [3] | TUBE, NYLON | TUBE, NYLON |
| 32. | ZH51K08000 | [2] | TEE | KOB |
| 33. | ZH31K08004 | [1] | ELBOW | KOB |
| 34. | ZX15K08022 | [1] | TUBE | |
| 35. | ZH51K08006 | [1] | TEE | KOB |
| 36. | ZX15K08025 | [1] | KIT | KOB |
| 37. | NSS | [2] | NOT SOLD SEPARAT | CONTEE |
| 38. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
| 39. | NSS | [2] | NOT SOLD SEPARAT | CONHOSE |
| 40. | NSS | [4] | NOT SOLD SEPARAT | CONHOSE |
| 41. | ZG52U04000 | [3] | TEE | KOB |
| 42. | ZK23E10004 | [7] | CONNECTOR | |
| 43. | 2413T10473 | [1] | TUBE | |
| 44. | 2418P9768 | [1] | TUBE | |
| 45. | ZK33E10004 | [2] | ELBOW | |
| 46. | 2418P9739D2 | [1] | TUBE | |
| 47. | 2418T10474 | [1] | TUBE | |
| 48. | ZG22E04000 | [1] | HYD CONNECTOR | KOB |
| 49. | ZH32Z04000 | [3] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 50. | ZH42Z04000 | [12] | ELBOW | KOB45° -- 1/4"PFx1/4"PTx40mm Long (male both ends) |
| 51. | 2420R349D250 | [1] | HOSE,2500.00 mm | KOB |
| 52. | 2420R349D140 | [1] | HOSE,6.35mm ID x 1400mm L | KOB1/4" PF |
| 53. | 2444Z2226 | [2] | CONNECTOR | CONNECTOR |
| 54. | ZH42Z06000 | [2] | ELBOW | KOB |
| 55. | ZX15K08055 | [2] | TUBE | TUBE |
| 56. | 24100U322F2 | [1] | SOLENOID VALVE | KOB |
| 57. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 58. | 2436U796F1 | [1] | HYDRAULIC VALVE | KOB |
| 59. | 2436U797F1 | [1] | HYDRAULIC VALVE | KOB |
| 60. | 2416T10899 | [1] | BRACKET | |
| 61. | ZG22E06000 | [2] | HYD CONNECTOR | KOB |
| 62. | ZG52U06000 | [2] | TEE | KOBLE3401, Serial Range: -LE5230 |
| . . | ZG52U06000 | [1] | TEE | KOB, Start Serial: LE5231 |
| 63. | ZH21K08006 | [1] | HYD CONNECTOR | KOB |
| 64. | 2416T10958 | [1] | BRACKET | |
| 65. | ZS23C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 66. | ZW22K06000 | [4] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 67. | 2444R742D2 | [2] | HOSE | KOBLE3401, Serial Range: -LE4636 |
| 68. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm LE3401, Serial Range: -LE4636 |
| 69. | ZK23H22008 | [3] | CONNECTOR | CONNECTOR |
| 70. | 2436U812F2 | [1] | VSLVE,FLOW-DIVIDED | |
| 71. | ZS13C10020 | [3] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 72. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 73. | ZX27N10100 | [2] | HOSE | |
| 74. | ZX25H06160 | [1] | HOSE | |
| 75. | ZH22X06008 | [6] | HYD CONNECTOR | KOB3/8"PFx1/2"PFx42.5mm Long (Incls. O-Ring ZD12P02400) |
| 76. | 2436U380F4 | [1] | VALVE,CONTROL | |
| 77. | ZS23C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 78. | ZN16C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 80. | ZX25M06100 | [2] | FLEXIBLE HOSE | KOB |
| 81. | ZH32X06000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 81-1. | ZD12P01403 | [1] | O-RING | |
| 82. | ZX25M06090 | [2] | FLEXIBLE HOSE | KOB |
| 83. | 24100J321F1 | [1] | VALVE ASSY, SOLENOID | |
| 84. | 2423P1502D1 | [4] | CAPSCREW | |
| 85. | ZN12C06005 | [10] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 86. | ZK23E15008 | [2] | CONNECTOR | CONNECTOR |
| 89. | 2432T1712 | [1] | CLIP | |
| 90. | ZS13C10085 | [1] | SCREW | KOBM10x1.50x85mm Superseded by part number: ZS18C10085 |
| 91. | ZK23E8008 | [1] | CONNECTOR | |
| 92. | 2418P9726 | [1] | TUBE | |
| 93. | ZK53E18006 | [1] | TEE | TEE |
| 94. | 2418P8491 | [1] | TUBE | |
| 95. | ZG42U06000 | [1] | ELBOW, 45 | |
| 96. | ZK23E10006 | [1] | CONNECTOR | CONNECTOR |
| 97. | 2418T10668 | [1] | TUBE | |
| 98. | 24100U322F1 | [1] | VALVE | KOB |
| 99. | ZX15K08030 | [1] | FLEXIBLE HOSE | KOB |
| 100. | ZE82T04000 | [1] | PLUG | KOB1/4" PT LE3401, Serial Range: -LE5230 |
| . . | ZE82T04000 | [3] | PLUG | KOB1/4" PT, Start Serial: LE5231 |
| 101. | ZX32M04150 | [1] | FLEXIBLE HOSE | KOB |
| 102. | 2444T2145 | [2] | HYD CONNECTOR | KOB |
| 103. | ZX15K08035 | [1] | TUBE | KOB |
| 104. | ZX15K08015 | [1] | KIT | KOB |
| 105. | ZX15K08070 | [1] | FLEXIBLE HOSE | KOB |
| 106. | ZK2K08008 | [1] | CONNECTOR | |
| 107. | P44T0224D1 | [1] | TEE | |
| 108. | 6Z1 | [1] | LEVER | KOB |
| 110. | ZS16C10025 | [1] | SCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 111. | 2432Z290D5 | [20] | CLIP | KOBWire Ties -- 365mm Long Superseded by part number: PY01P01043D8 |
| 112. | 2406T1677 | [1] | PLATE | |
| 113. | ZS16C08025 | [1] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025 |
| 115. | 2425R145D1 | [2] | BLOCK,BEARING | |
| 116. | ZN16C08007 | [7] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 117. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 118. | 2422T440 | [1] | PLATE | |
| 119. | 2479Z870 | [1] | SWITCH | KOB |
| 120. | 2419T3642D1 | [1] | PIN | KOBLE3401, Serial Range: -LE5080 Superseded by part number: 2419T3784D1 |
| 121. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 122. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 123. | 2406T1672 | [1] | YOKE | KOB Superseded by part number: 2406T2278 |
| 125. | ZN16C12010 | [4] | NUT | KOB Superseded by part number: ZN18C12010 |
| 126. | 2420T4065 | [1] | STUD | KOB |
| 127. | 2420Z681 | [1] | ROD | KOB |
| 128. | 2479Z873 | [1] | RELAY | |
| 130. | 2479Z674 | [1] | SOCKET | |
| 131. | 2416Z333 | [1] | SUPPORT | |
| 132. | 2416T10927 | [1] | BRACKET | |
| 133. | ZS13C06212 | [6] | CAPSCREW | |
| 134. | ZW22X06000 | [6] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 135. | 2441U507F1 | [1] | PUMP HYDR, Serial Range: LE3401-LE4636 | |
| 136. | 2441U291F2 | [1] | HYDRAULIC PUMP | KOB |
| 137. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 138. | ZW11K10000 | [2] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 146. | 2416Z301D12 | [1] | SHEET, RUBBER | SHEET, RUBBER |
| 147. | 2479Z886 | [1] | SWITCH | KOB Superseded by part number: YW50S00001P1 |
| 148. | 2444Z2249 | [1] | CONNECTOR LE3401, Serial Range: -LE5230 | CONNECTOR LE3401, Serial Range: -LE5230 |
| 149. | 2444Z2250 | [1] | CONNECTOR ASSY | |
| 150. | 2444T242D1F1 | [1] | CONNECTOR | |
| 150-1. | 2444T2421D1 | [1] | CONNECTOR | |
| 150-4. | ZE82T34000 | [1] | PLUG | |
| 151. | 2406P2521 | [1] | LEVER | |
| 152. | 2406P2522 | [1] | L INK | |
| 153. | 2406R176D16 | [1] | WIRE HARNESS | KOB |
| 154. | 2479U229 | [4] | RELAY | KOB |
| 155. | 2479R695 | [1] | HARNESS | |
| 156. | 2418P9978 | [1] | TUBE LE3401 to LE4636 | |
| 157. | 2418P9979 | [1] | TUPE LE3401 to LE4636 | |
| 158. | ZS31C03016 | [1] | SCREW,Phillips Drive, Pan HD, M3 x 16mm | KOBM03x0.5x16mm |
| 159. | ZN16C03003 | [1] | NUT | KOB |
| 160. | ZW22X13000 | [1] | LOCK WASHER | |
| 161. | 2418P9983 | [1] | TUBE, Start Serial: LE4637 | |
| 162. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, Start Serial: LE4637 |
| 162-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 163. | R18P0168D47 | [1] | HOSE | KOB, Start Serial: LE4637 |
| 164. | 2420R537D057 | [1] | HOSE, Start Serial: LE4637 | |
| 165. | 2420R537D075 | [1] | HOSE,9.60mm ID x 750mm L | KOB, Start Serial: LE4637 |
| 166. | 2419T3784D1 | [1] | PIN | KOB, Start Serial: LE5081 |
| 167. | ZG81U06000 | [1] | CROSS | KOB, Start Serial: LE5231 |
| 168. | ZG22B06004 | [1] | HYD CONNECTOR | KOB, Start Serial: LE5231 |
| 169. | 2444T2473 | [1] | ELBOW, Start Serial: LE5231 | |
