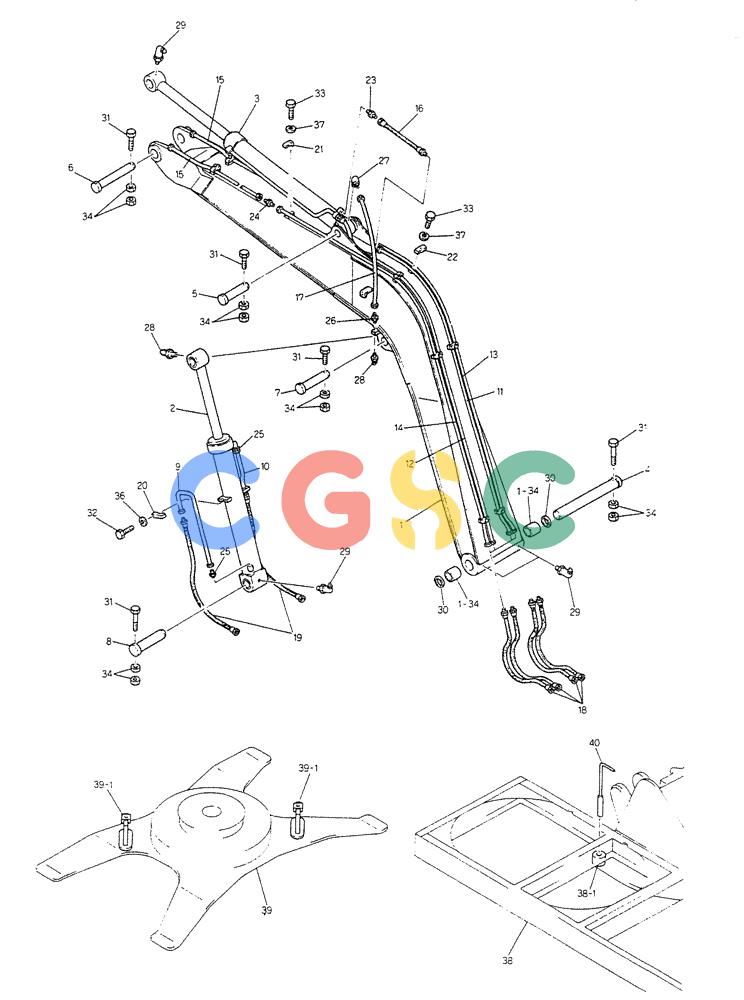

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (11-015) - BOOM ASSY, 3.65M (FOR EXPORT) P/N 24100J4950F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
851 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4950F1 | [1] | B00M ASSY | |
| 1. | 2411X794F1 | [1] | BOOM | |
| 1-34. | 2405T985 | [2] | BUSHING | KOB |
| 2. | 2438U708F2 | [1] | CYLINDER | |
| 3. | 2438U409F3 | [1] | CYLINDER | CYLINDER |
| 4. | 2419P1545 | [1] | PIN | PIN |
| 5. | 2419P1554 | [1] | PIN | PIN |
| 6. | 2419P1549 | [1] | PIN | KOB |
| 7. | 2419P1553 | [1] | PIN | PIN |
| 8. | 2419P1559D1 | [1] | PIN | KOB |
| 9. | 2418T10576 | [1] | TUBE | |
| 10. | 2418T10062 | [1] | TUBE | TUBE |
| 11. | 2418P7551D1 | [1] | TUBE | |
| 12. | 2418P7551D2 | [1] | TUBE | |
| 13. | 2418P7552D1 | [1] | TUBE | KOB |
| 14. | 2418P7552D2 | [1] | TUBE | TUBE |
| 15. | 2418T8006 | [2] | TUBE | KOB |
| 16. | ZX27N08040 | [2] | HOSE | KOB |
| 17. | 2420R349D14 | [1] | FLEXIBLE HOSE | KOB140mm Long (5-1/2 in) Superseded by part number: HX21E04100DX |
| 18. | ZX27N08060 | [4] | HOSE | KOB |
| 19. | ZX27N08080 | [2] | HOSE | KOB |
| 20. | 2416T3204 | [2] | CLAMP | KOB |
| 21. | ZC26X18011 | [4] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 22. | ZC36X18011 | [6] | CLAMP | KOB |
| 23. | ZK23G18008 | [2] | HYD CONNECTOR | KOB |
| 24. | ZK23B18000 | [2] | HYD CONNECTOR | KOB |
| 25. | ZK23E18008 | [2] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 26. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 28. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 29. | ZG91V02000 | [5] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| 30. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 31. | ZS13C12110 | [5] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 32. | ZS16C08030 | [4] | CAPSCREW M08x1.25x30mm | CAPSCREW M08x1.25x30mm |
| 33. | ZS16C10040 | [10] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 34. | NSS | [10] | NOT SOLD SEPARAT | CONNUT |
| 36. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 37. | ZW22X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 38. | 2422N676 | [1] | REWORK, UPP | |
| 38-1. | 2422T442 | [1] | BOSS | |
| 39. | 2422N677 | [1] | REWORK, SUPPORT | |
| 39-1. | 2416P7230 | [2] | BRACKET | |
| 40. | 2419T3589 | [1] | PIN | |
