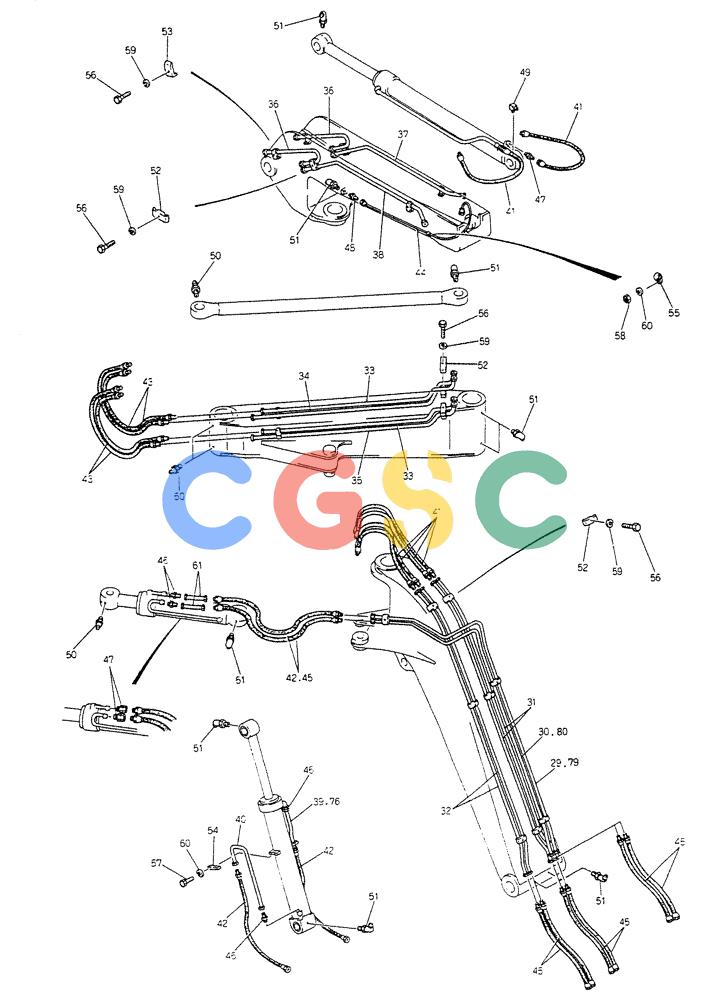

| . . | 24100J4808F1 | [1] | BOOM ASSY, Start Serial: LE4018 | |
| . . | 24100J4808F2 | [1] | BOOM ASSY, Start Serial: LE4318 | |
| . . | 24100J4808F3 | [1] | BOOM ASSY | |
| 1. | 2411J1690F1 | [1] | BOOM, Start Serial: LE4318 | |
| 1-28. | 2405T985 | [2] | BUSHING | KOB |
| 2. | 2411J1691F1 | [1] | BOOM FR | BOOM FR |
| 2-19. | 2405T973 | [4] | BUSHING | KOB |
| 3. | 2411J1692 | [1] | BOOM | |
| 4. | 2420P1498F1 | [1] | TIE-ROD | KOB |
| 4-3. | 2405T774 | [2] | BUSHING | KOB |
| 5. | 2419T3405D1 | [1] | PIN 68, Start Serial: LE3519 | |
| 6. | 2419T3405D2 | [1] | PIN 69, Start Serial: LE3519 | |
| 7. | 2419P1397 | [1] | PIN 71, Start Serial: LE3520 | |
| 8. | 2419P1399 | [3] | PIN 72, Start Serial: LE3521 | |
| 9. | 2419T3404 | [2] | PIN 70, Start Serial: LE3522 | |
| 10. | 2419P1400 | [1] | PIN 73, Start Serial: LE3523 | |
| 11. | 2419P1411D2 | [1] | PIN 74, Start Serial: LE3524 | |
| 12. | 2419P1410 | [1] | PIN 75, Start Serial: LE3525 | |
| 13. | NSS | [2] | NOT SOLD SEPARAT | CONSEAL, DUST |
| 14. | NSS | [2] | NOT SOLD SEPARAT | CONNUT |
| 15. | 2418T10186 | [2] | SPACER | KOB |
| 16. | NSS | [2] | NOT SOLD SEPARAT | CONSPLIT PIN |
| 17. | ZS13C12110 | [9] | SCREW | KOBM12x1.75x110mm, Start Serial: LE4851 Superseded by part number: ZS18C12110 |
| . . | ZS13C12110 | [8] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 18. | ZN17C12010 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 26. | 2438U698F1 | [1] | CYLINDER, BOOM 66, Start Serial: LE4018 | CYLINDER, BOOM 66, Start Serial: LE4018 |
| 27. | 2438U703F1 | [1] | CYLINDER | CYLINDER |
| 28. | 2438U409F3 | [1] | CYLINDER 67, Start Serial: LE4018 | CYLINDER 67, Start Serial: LE4018 |
| 29. | 2418P8430 | [1] | TUBE, Start Serial: LE4318 | TUBE, Start Serial: LE4318 |
| 30. | 2418P8431 | [1] | TUBE, Start Serial: LE4318 | |
| 31. | 2418P8432D1 | [2] | TUBE | |
| 32. | 2418P8432D2 | [2] | TUBE | |
| 33. | 2418T10170 | [2] | TUBE | |
| 34. | NSS | [1] | NOT SOLD SEPARAT | CONTUBE |
| 35. | 2418P8433D2 | [1] | TUBE | |
| 36. | NSS | [2] | NOT SOLD SEPARAT | CONTUBE |
| 37. | 2418P8434D1 | [1] | TUBE | |
| 38. | 2418P8434D2 | [1] | TUBE, Start Serial: LE4018 | |
| 39. | 2418T10062 | [1] | TUBE | TUBE |
| 40. | 2418T10066 | [1] | TUBE | TUBE |
| 41. | ZX27N08066 | [6] | HOSE | |
| 42. | ZX27N08080 | [4] | HOSE | KOB, Start Serial: LE4318 |
| . . | ZX27N08081 | [2] | HOSE | |
| 43. | NSS | [4] | NOT SOLD SEPARAT | CONHOSE |
| 44. | 2420R349D21 | [1] | HOSE | HOSE |
| 45. | ZX27N08060 | [6] | HOSE | KOB, Start Serial: LE4319 |
| . . | ZX27N08060 | [8] | HOSE | KOB |
| 46. | ZK23E18008 | [4] | HYD CONNECTOR | KOB, Start Serial: LE431 Superseded by part number: ZF23E18008 |
| . . | ZK23E18008 | [2] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 47. | ZK23G18008 | [2] | HYD CONNECTOR | KOB, Start Serial: LE4318 |
| . . | ZK23G18008 | [4] | HYD CONNECTOR | KOB |
| 48. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 49. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 50. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 51. | ZG91V02000 | [11] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| 52. | ZC36X18011 | [15] | CLAMP | KOB |
| 53. | ZC26X18011 | [4] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 54. | 2416T3204 | [2] | CLAMP | KOB |
| 55. | ZC45X11009 | [1] | CLIP | KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009 |
| 56. | ZS13C10040 | [19] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 57. | ZS16C08030 | [4] | CAPSCREW M08x1.25x30mm | CAPSCREW M08x1.25x30mm |
| 58. | ZN11C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 59. | ZW22X10000 | [19] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 60. | ZW22X08000 | [5] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 61. | NSS | [2] | NOT SOLD SEPARAT | CONTUBE, Start Serial: LE4318 |
| 62. | 2479Z847 | [1] | HARNESS | |
| 63. | 2432Z270 | [6] | CLAMP | KOB |
| 64. | ZN16C06005 | [6] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 65. | ZW26X06000 | [6] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 66. | 2438U721F1 | [1] | BOOM | KOB |
| 67. | 24338U716F1 | [1] | CYLINDER, ARM | |
| 68. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 69. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 70. | 2419T3641 | [2] | PIN | PIN |
| 71. | 2419P1549 | [1] | PIN | KOB |
| 72. | 2419P1554 | [3] | PIN | PIN |
| 73. | 2419P1553 | [1] | PIN | PIN |
| 74. | 2419P1559D1 | [1] | PIN | KOB |
| 75. | 2419P1545 | [1] | PIN | PIN |
| 76. | 2418T10777 | [1] | TUBE | TUBE |
| 77. | B16T0442D19 | [2] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| 78. | 2411J1731F1 | [1] | BOOM | |
| 78-29. | 2405T985 | [2] | BUSHING | KOB |
| 79. | 2418P9908 | [1] | TUBE | |
| 80. | 2418P9909 | [1] | TUBE | |
| 81. | 2420T4331D2 | [1] | SCREW,M12 x 1.75 x 160mm | KOBM12x1.75x160mm |
