| . . | 24100J4251F1 | [1] | ARM ASSY,TELESCOPIC, Serial Range: LE3401-LE4018 | |
| . . | 24100J4251F2 | [1] | ARM ASSY, Start Serial: LE4019 | |
| 1. | 2411J1685F1 | [1] | ARM | |
| 1-27. | 2405T59402 | [2] | BUSHING | |
| 1-28. | 2405P258 | [2] | BUSHING | KOB |
| 2. | 2416J764F1 | [1] | SUPPORT | |
| 2-24. | 2405T595C2 | [2] | BUSHING | KOB |
| 3. | 2438U257F5 | [1] | CYLINDER, Serial Range: LE3401-LE4018 | CYLINDER, Serial Range: LE3401-LE4018 |
| 4. | 2438U707F1 | [1] | CYLINDER | |
| 5. | 2406P2299D1F1 | [1] | LINK | KOB |
| 5-5. | 2405T596C2 | [2] | BUSHING | KOB |
| 6. | 2406P2299D2F1 | [1] | LINK | KOB |
| 6-5. | 2405T596C2 | [2] | BUSHING | KOB |
| 7. | 2406P2300D1 | [1] | LINK, IDLER | LINK, IDLER |
| 8. | 2406P2300D2 | [1] | LINK | KOB |
| 9. | 2419P1396 | [2] | PIN, Serial Range: LE3401--LE3497 | PIN, Serial Range: LE3401--LE3497 |
| 10. | 2419P1395 | [2] | PIN, Serial Range: LE3401--LE3497 | PIN, Serial Range: LE3401--LE3497 |
| 11. | 2419T3393 | [1] | PIN | |
| 12. | 2419T3394 | [1] | PIN | KOBPIN |
| 13. | 2419P1400 | [1] | PIN, Serial Range: LE3401-LE3497 | |
| 14. | 2419T3392 | [1] | PIN | |
| 15. | 2148P4168 | [1] | TUBE | |
| 16. | 2418P4169 | [1] | TUBE | KOB |
| 17. | 2416T3204 | [2] | CLAMP | KOB |
| 18. | 2445R138D1 | [6] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 19. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 20. | 2445R220D5 | [4] | SEAL,50mm ID x 65mm OD x 5mm Thk | KOBDust -- ID 50 x OD 65 x Th 5mm Superseded by part number: 71436184 |
| 21. | ZK23F18008 | [2] | HYD CONNECTOR | KOB |
| 22. | 2416P7147 | [2] | BRACKET | |
| 23. | 2411T685 | [4] | PLATE | KOB |
| 24. | 2413T271F2 | [2] | BOILER ASSY | |
| 24-1. | 2419P1526 | [1] | SHAFT | KOBSHAFT |
| 24-2. | 2420T4344 | [1] | PLUG | KOB |
| 24-3. | 2413T272 | [1] | RING | KOB |
| 24-4. | 2425Z500 | [32] | NEEDLE BEARING | KOB |
| 24-6. | 2420Z925 | [1] | NUT | KOBNUT |
| 24-7. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 24-8. | 2418T10122 | [1] | SPACER | KOBSPACER |
| 25. | 2416P7146 | [2] | BRACKET | |
| 26. | 24100T280F1 | [6] | ROLLER | KOB |
| 26-1. | 2419P1537 | [1] | SHAFT | KOBSHAFT |
| 26-2. | 2420T4357 | [1] | PLUG | |
| 26-3. | 2413T274 | [1] | TRACK ROLLER | KOBROLLER |
| 26-4. | 2425Z500 | [20] | NEEDLE BEARING | KOB |
| 26-5. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 26-6. | 2420Z925 | [1] | NUT | KOBNUT |
| 26-7. | 2418T9004 | [1] | SPACER | |
| 27. | ZS13C18190 | [1] | CAPSCREW, Start Serial: LE3498- | |
| 28. | ZS13C16060 | [16] | CAPSCREW | KOBSCREW M16x2.0x60mm |
| 29. | ZS13C18180 | [1] | CAPSCREW, Serial Range: LE3401--LE3497 | |
| 30. | ZS13C12110 | [6] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 31. | ZS13C10035 | [12] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 34. | ZS13C10080 | [1] | SCREW | KOBM10x1.50x80mm, Serial Range: LE3401--LE3497 Superseded by part number: ZS18C10080 |
| . . | ZS13C10060 | [1] | SCREW | KOBM10x1.50x60mm, Start Serial: LE3498- Superseded by part number: ZS18C10060 |
| 35. | ZN12C12010 | [12] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 36. | ZN12C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 37. | ZN12C18015 | [2] | NUT | KOB |
| 38. | ZW22X16000 | [16] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 39. | ZW22X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 40. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 41. | ZR16X03000 | [1] | SNAP RING | KOB |
| 42. | ZG91S02000 | [11] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 43. | 2419P1553 | [1] | PIN, Start Serial: LE3498- | PIN, Start Serial: LE3498- |
| 44. | 2419P1565D2 | [2] | PIN, Serial Range: LE3498--LE4236 | PIN, Serial Range: LE3498--LE4236 |
| 45. | 2419P1565D1 | [2] | PIN | KOB, Start Serial: LE3498- |
| 46. | 2438U717F2 | [1] | CYLINDER, BUCKET, Serial Range: LE4019--LE4114 | |
| 48. | 2419P1617D1 | [2] | PIN, Start Serial: LE4237- | PIN, Start Serial: LE4237- |
| 49. | 2438U717F3 | [1] | CYLINDER | KOB, Start Serial: LE4115- |

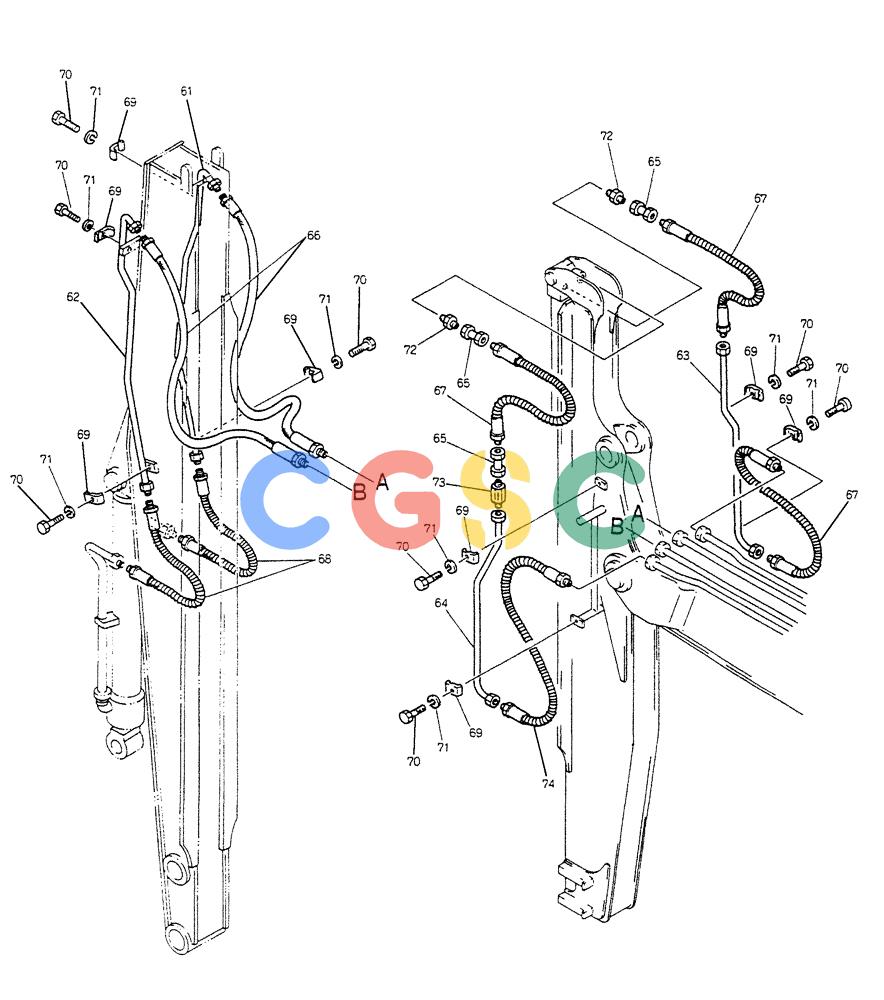

| 61. | 2418P8398D1 | [1] | TUBE | |
| 62. | 2418P8398D2 | [1] | TUBE | |
| 63. | 2418T10130 | [1] | TUBE | |
| 64. | 2418P8399 | [1] | TUBE | |
| 65. | 2418T10123 | [3] | TUBE | |
| 66. | 2444R869D1 | [2] | HOSE | |
| 67. | ZX57N08080 | [3] | HOSE | KOB |
| 68. | ZX57N08050 | [2] | HOSE | |
| 69. | ZC26X18011 | [8] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 70. | ZS18C10040 | [8] | SCREW,Hex, M10 x 40mm | KOBM10x1.50x40mm |
| 71. | ZW22X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 72. | ZK23E18008 | [2] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 73. | 2436Z383 | [1] | VALVE | |
| 74. | ZX57N10080 | [1] | HOSE | KOB |
