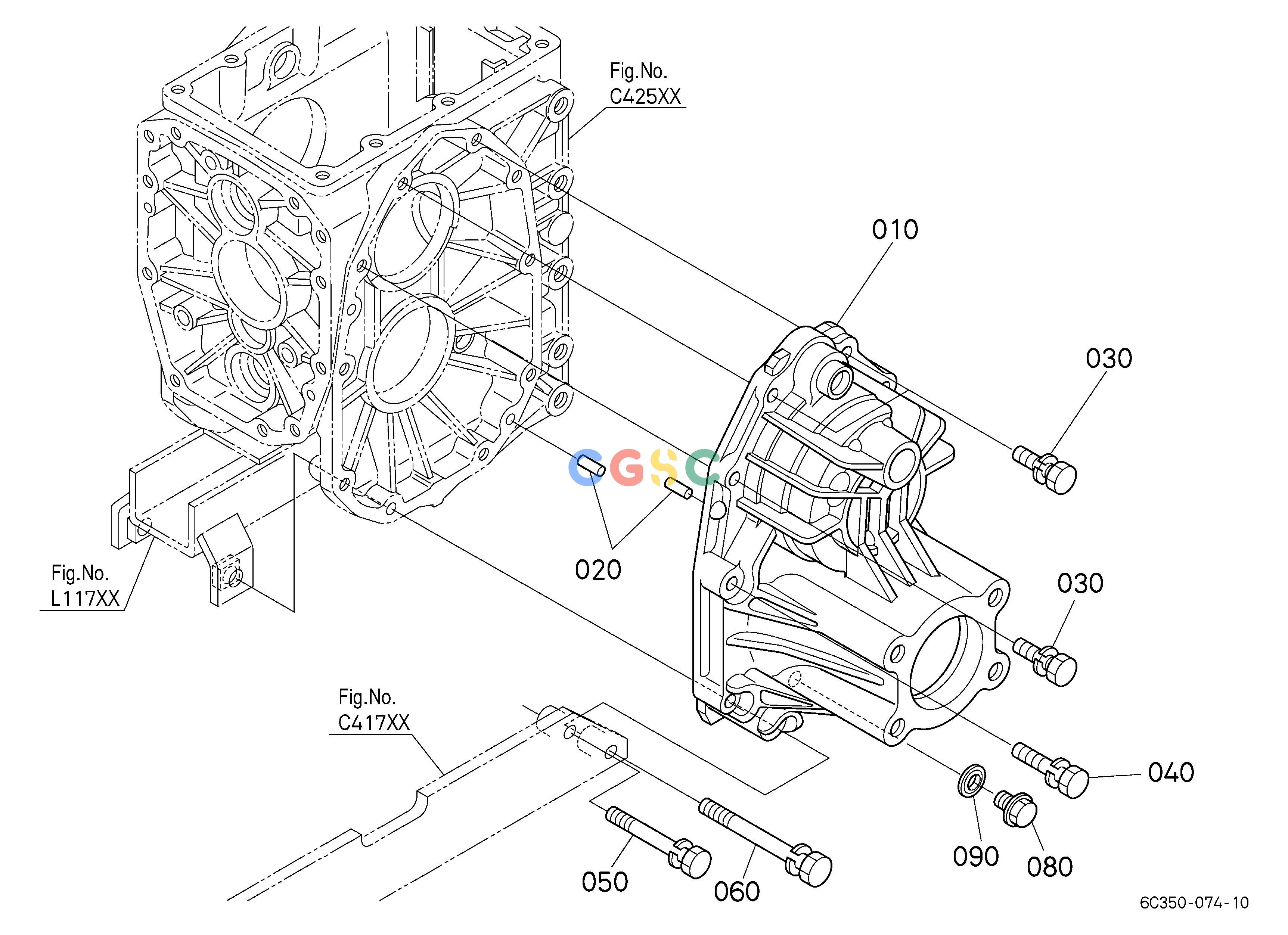

久保田零件查询C42802 REAR AXLE CASE LH ## S.No.51841 to 53981 [NOTE:ORDER BY Fig.No.C42803 REF.No.010,080 and 090.] TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K351112626
|
[1] |
CASE(AXLE)
|
5.1700(lbs); 2.350
|
| 010. |
6C26012610
|
[1] |
CASE(AXLE)
|
5.4560(lbs); 2.480
|
| 020. |
0501200614
|
[2] |
PIN,STRAIGHT
|
0.0088(lbs); 0.004
|
| 030. |
0112351035
|
[4] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 040. |
0112351050
|
[4] |
BOLT,SEMS
|
0.0770(lbs); 0.035
|
| 050. |
0112351070
|
[1] |
BOLT
|
0.1100(lbs); 0.050
|
| 060. |
0113351002
|
[1] |
BOLT,SEMS
|
0.1540(lbs); 0.070
|
| 080. |
0177451212
|
[1] |
BOLT,FLANGE
|
0.0616(lbs); 0.028
|
| 090. |
0471701200
|
[1] |
WASHER,SEAL
|
0.0044(lbs); 0.002
|
