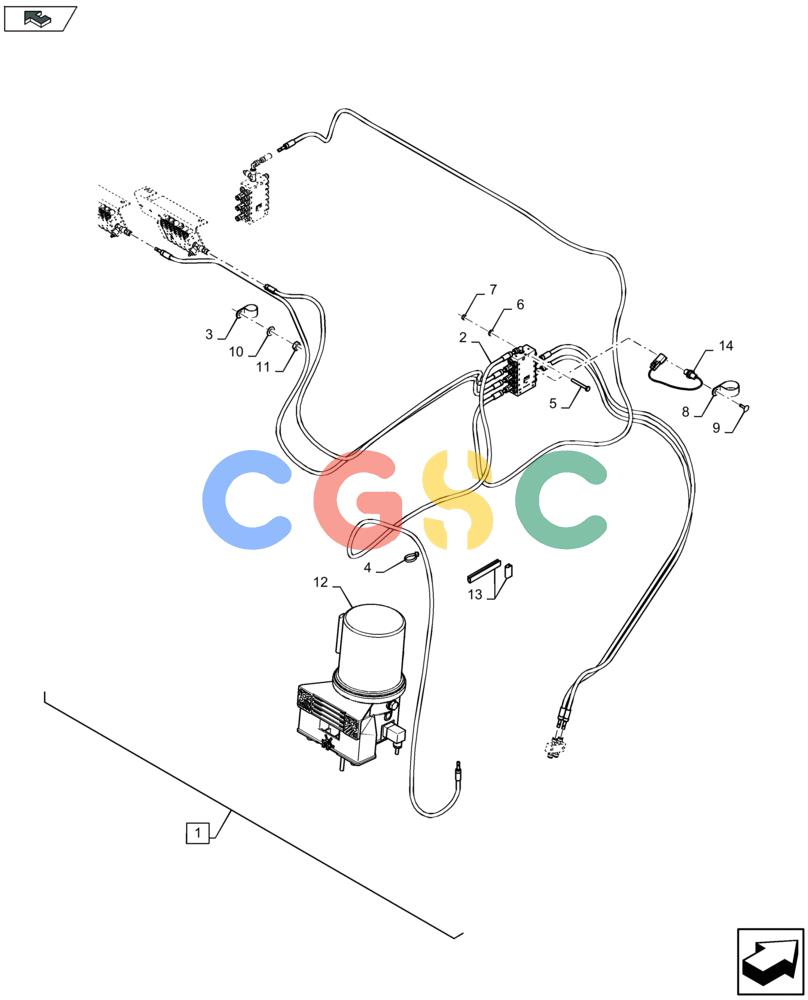

凯斯零件查询(LB424R) - BALER (9/12-) (88.071.002[01]) - DIA KIT: AUTOMATIC GREASING PUMP - LINCOLN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84379947
|
[1] |
DIA KIT, HARVESTER
|
ZED
Incl 2 - 14
|
| 2. |
84412376
|
[1] |
SERVICE KIT
|
ZED
|
| 3. |
9827902
|
[1] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
|
| 4. |
84449335
|
[10] |
CABLE TIE,346mm L
|
ZED
|
| 5. |
412364
|
[2] |
CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8
|
ZED
|
| 6. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 7. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 8. |
87024765
|
[2] |
CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
|
| 9. |
9512290
|
[2] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 10. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 11. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
84312795
|
[1] |
PUMP
|
ZED
|
| 13. |
291186
|
[1] |
PROTECTION STRIP,9.9mm W
|
NH
L= 0.13 M Superseded by part number: 47560081, 47560080
|
| 14. |
84511911
|
[1] |
SENSOR
|
ZED
|
