神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (00-005) - COUNTER-WEIGHT ASSY, P/N 24100P1116F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
568 次

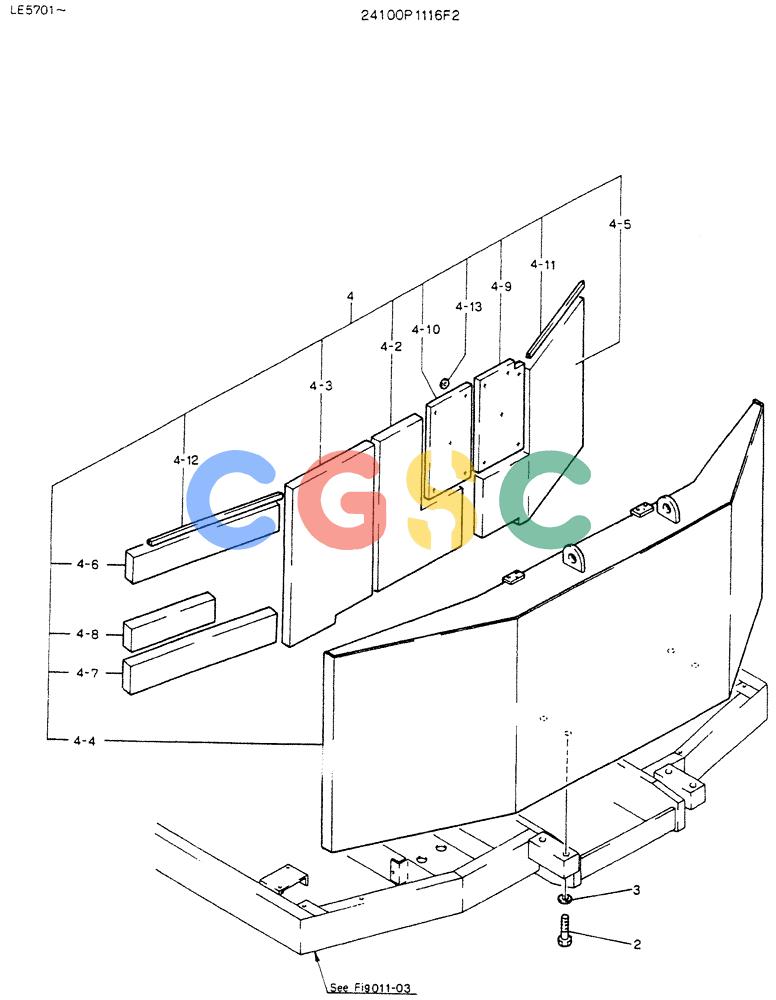

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1116F2 | [1] | COUNTER-WEIGHT ASSY | |
| 2. | 2420Z933D3 | [4] | SCREW | KOB |
| 3. | R16T0152D4 | [4] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 4. | 2422P670F2 | [1] | COUNTER-WEIGHT ASSY | |
| 4-2. | 2479T1164 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 4-3. | 2479T1165 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 4-4. | 2422J1776 | [1] | COUNTER-WEIGHT | |
| 4-5. | 2479T1163 | [1] | INSULATION, SOUND | |
| 4-6. | 2479T1166 | [1] | INSULATION, SOUND | |
| 4-7. | 2479T1167 | [1] | INSULATION, SOUND | |
| 4-8. | 2479T1168 | [1] | INSULATION, SOUND | |
| 4-9. | 2479T1169 | [1] | INSULATION, SOUND | |
| 4-10. | 2479T1170 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 4-11. | 2416Z490D4 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 4-12. | 2416Z490D9 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 4-13. | 2418T8864 | [11] | WASHER | KOB |
