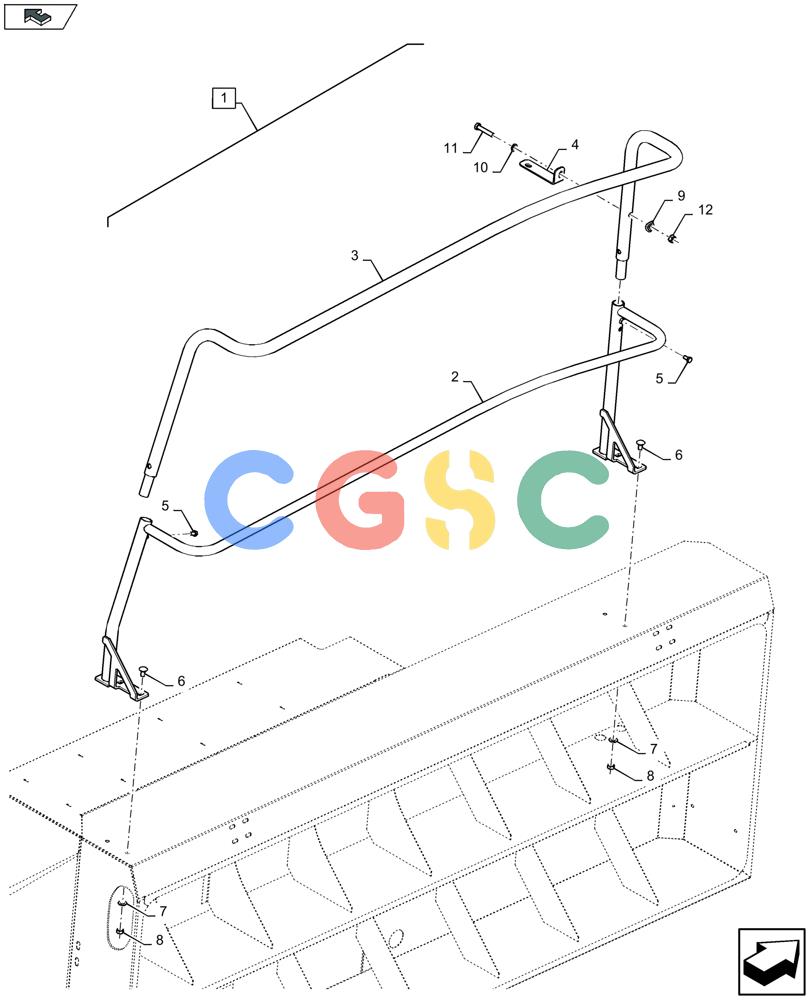

凯斯零件查询(LB424R) - BALER (9/12-) (88.090.003[01]) - DIA KIT: HANDRAIL RH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84358647
|
[1] |
DIA KIT, HARVESTER
|
ZED
Incl 2 - 12
|
| 2. |
84358691
|
[1] |
HANDRAIL
|
ZED
|
| 3. |
84542759
|
[1] |
HANDRAIL
|
ZED
|
| 4. |
84539603
|
[1] |
SUPPORT
|
ZED
|
| 5. |
120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 6. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 7. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 8. |
86500689
|
[4] |
NUT,M10 x 1.5, Cl 10
|
NH
|
| 9. |
379401
|
[1] |
WASHER,11mm ID x 30mm OD
|
ZED
|
| 10. |
86624176
|
[1] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
FOR
Superseded by part number: 14496621
|
| 11. |
412151
|
[1] |
BOLT,M10 x 1.5 x 61.58mm, Cl 8.8
|
NH
Superseded by part number: 73161469
|
| 12. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
