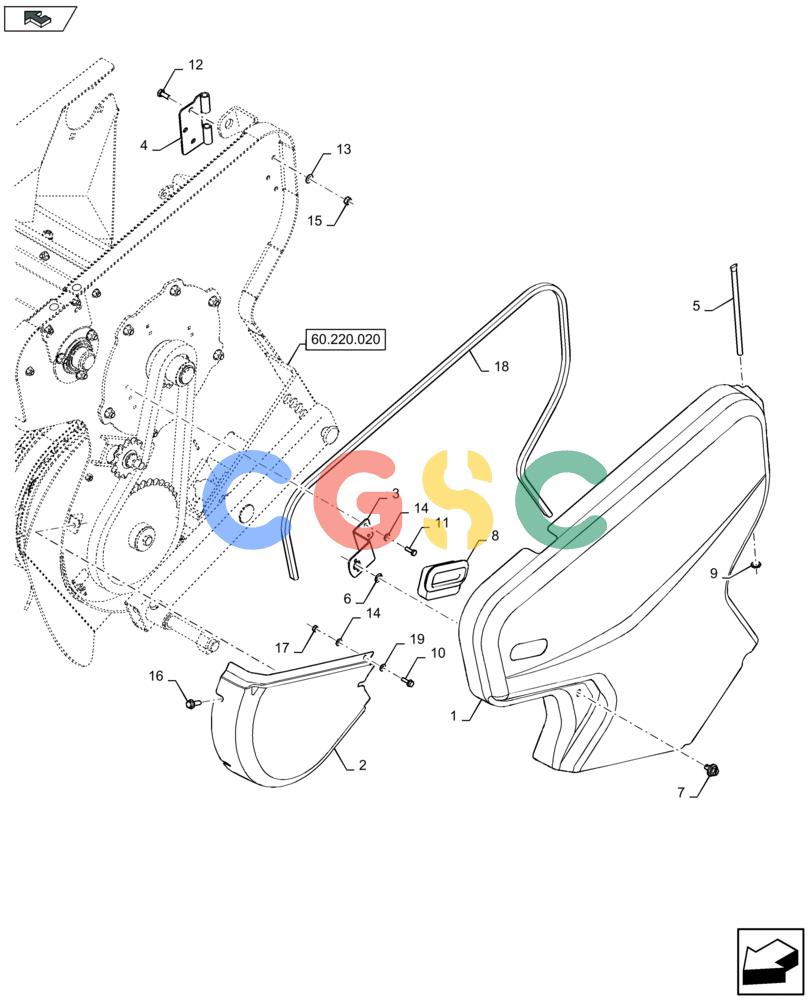

凯斯零件查询(LB424R) - BALER (9/12-) (90.102.030) - PICK-UP, SHIELDINGS, LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84361879
|
[1] |
DOOR
|
ZED
|
| 2. |
84361881
|
[1] |
SHIELD
|
ZED
|
| 3. |
84530672
|
[1] |
SUPPORT
|
ZED
|
| 4. |
84363472
|
[1] |
HINGE
|
ZED
|
| 5. |
84363841
|
[1] |
ROD,10mm OD x 225mm L
|
ZED
|
| 6. |
9514605
|
[1] |
LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk
|
ZED
|
| 7. |
9514603
|
[1] |
LOCK,1/4 Turn, 28.8mm OAL
|
CUR
|
| 7. |
9831581
|
[1] |
LOCK
|
ZED
|
| 8. |
3962571
|
[1] |
HANDLE
|
BEL
Superseded by part number: E7NN6N084AA
|
| 9. |
431021
|
[1] |
SPECIAL WASHER
|
ZED
, Serial Range: -C090
|
| 10. |
87675531
|
[1] |
FLANGE BOLT,M6 x 26.6mm, Cl 10.9
|
CAS
, Serial Range: -C075
|
| 10. |
86977786
|
[1] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
, Start Serial: D076
|
| 11. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 12. |
86507486
|
[3] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 14. |
322357
|
[3] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 15. |
9706690
|
[3] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 16. |
86511478
|
[3] |
BOLT,Hex Serr, M8 x 1.25 x 16mm
|
ZED
|
| 17. |
9706755
|
[1] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 18. |
291186
|
[1] |
PROTECTION STRIP,9.9mm W
|
NH
L=1.583M Superseded by part number: 47560081, 47560080
|
| 19. |
378243
|
[1] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
, Start Serial: D076 Superseded by part number: 63707, 63707, 86625263
|
