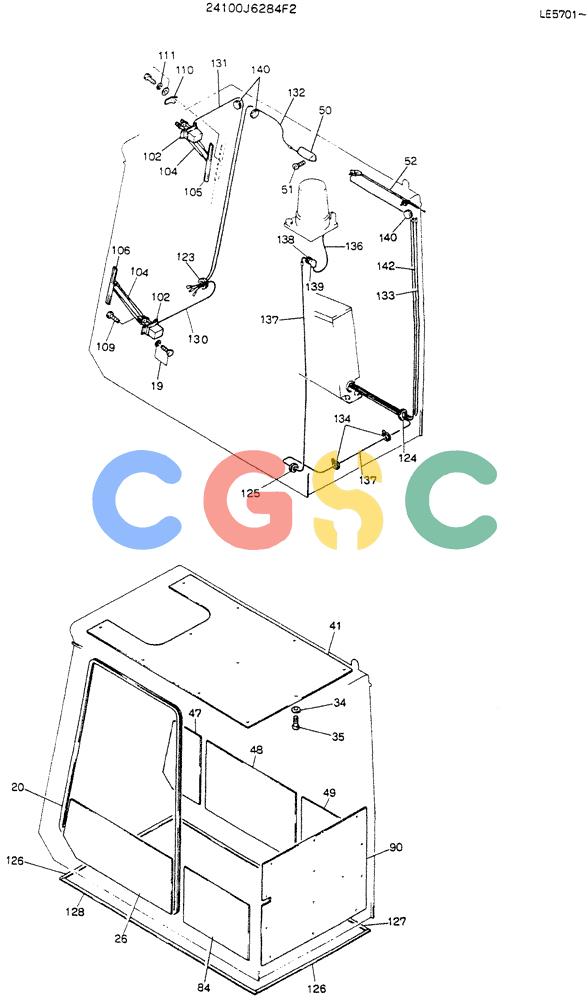

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-004[02]) - CAB ASSY, P/N 24100J6284F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6284F2 | [1] | CAB ASSY | |
| 2. | 2427U338D2 | [1] | CAB ASSY | |
| 4. | 2427U339D2 | [1] | DOOR ASSY | |
| 6. | 24100N2819F1 | [1] | WINDOW | KOB |
| 6-1. | 24100N2819S1 | [1] | FRAME ASSY | FRAME ASSY |
| 6-2. | 2427T850 | [1] | GLASS | KOB |
| 6-3. | 2427T848 | [1] | GLASS | KOB |
| 6-4. | 2427T851 | [1] | GLASS | KOB |
| 6-5. | 24100N2819S2 | [1] | LOCK | LOCK |
| 6-6. | 24100N2819S3 | [1] | LOCK | LOCK |
| 6-7. | 24100N2819S4 | [1] | GUIDE | KOB |
| 6-8. | 24100N2819S5 | [1] | WEATHERSTRIP | KOB |
| 6-9. | 24100N2819S6 | [1] | SEAL | KOB |
| 6-10. | 24100N2819S7 | [1] | RUBBER | |
| 6-11. | 24100N2819S8 | [1] | RUBBER SLEEVE | KOB |
| 6-12. | 24100N2819S9 | [1] | RUBBER | |
| 8. | 2408P502 | [1] | HOOK | KOBHOOK |
| 9. | 24100J6284S9 | [2] | CAPSCREW | |
| 10. | 2406R234 | [1] | HANDLE | KOB |
| 11. | 24100J6107S40 | [2] | SCREW | KOBMACHINE |
| 12. | 2414T2024 | [1] | COVER | KOB |
| 13. | ZS31C05016 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 14. | 2406R248 | [1] | HANDLE | KOBASSY |
| 15. | ZS41C05014 | [2] | SCREW,M5 x 14mm | KOBM05x0.8x14mm |
| 16. | 2406R221 | [1] | HANDLE | KOBINSIDE |
| 17. | 2414T2006 | [1] | COVER | KOB |
| 18. | 2421Z285 | [1] | LH DOOR LOCK | KOBASSY |
| 19. | 24100J6107S110 | [18] | SCREW | KOBSET |
| 20. | 2416Z220D8 | [1] | SOFT TRIM | KOBSEAL, RUBBER |
| 21. | 2414T2005 | [1] | GUARD | |
| 22. | 2420Z990 | [3] | RIVET | |
| 23. | 2416Z341D2 | [1] | RUBBER STRIP, WEATHER | RUBBER STRIP, WEATHER |
| 25. | 24100J6284S25 | [6] | CAPSCREW | CAPSCREW |
| 26. | 2427R656 | [1] | PAD | PAD |
| 30. | 2427Z552 | [1] | GLASS | |
| 31. | 2427Z557 | [4] | SUPPORT | |
| 32. | 24100J6284S32 | [8] | SETSCREW | |
| 34. | 2418Z712 | [11] | WASHER | KOB |
| 35. | 24100J6107S83 | [11] | BOLT MACHINE | BOLT MACHINE |
| 36. | 2416P8587 | [1] | SUPPORT | |
| 37. | 24100J6284S37 | [2] | CAPSCREW | |
| 38. | 24100J6284S38 | [3] | CAPSCREW | |
| 39. | 2427P1836 | [1] | WEATHERSTRIP | KOB |
| 40. | 24100J6284S40 | [4] | RUBBER | |
| 41. | 24100J658D2 | [1] | PAD | |
| 45. | 2427R626 | [1] | ASH TRAY | KOB |
| 46. | 24100J6107S104 | [3] | SCREW | KOBMACHINE |
| 47. | 2427Z556 | [1] | PAD | |
| 49. | 2427R661 | [1] | PAD | |
| 50. | 2456Z316 | [1] | LIGHT | KOBLIGHT, ROOM |
| 51. | 24100J6107S99 | [2] | SCREW | KOB |
| 52. | 2479U255 | [1] | ANTENNA | KOBANTENNA |
| 57. | 2427Z558 | [1] | GLASS | |
| 58. | 2416Z343D3 | [1] | STRIP, WEATHER | |
| 59. | 2427Z660D2 | [1] | PAD | |
| 64. | 24100J6284S64 | [1] | BRACKET | BRACKET |
| 65. | 2414P2613 | [1] | COVER | KOB |
| 66. | 24100J6284S66 | [3] | CAPSCREW | |
| 68. | ZP15K02012 | [1] | COTTER PIN | KOBPIN, SPLIT Superseded by part number: ZP15K02035 |
| 70. | 2406Z194 | [1] | GRIP | KOB |
| 71. | ZN16C05004 | [1] | NUT | KOBM05x0.8mm Superseded by part number: ZN18C05004 |
| 72. | 2427R663 | [1] | RAIL, HAND | |
| 73. | 24100J6107S70 | [2] | SCREW | KOBCAP |
| 74. | 2406R243 | [1] | RAIL, HAND ASSY | RAIL, HAND ASSY |
| 75. | 24100J6284S75 | [4] | SCREW | KOB |
| 76. | 2408T302 | [1] | HOOK | |
| 78. | 2427Z510 | [2] | STOP | KOB |
| 81. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 82. | 2427Z559 | [1] | GLASS | |
| 83. | 2416Z472D14 | [1] | RUBBER | |
| 84. | 2427R662D2 | [1] | PAD | |
| 85. | ZK15K06032 | [1] | TUBE, NYLON | |
| 86. | 2527T854 | [1] | ROD | |
| 88. | 2427R657F1 | [1] | GLASS, WINDOW | GLASS, WINDOW |
| 88-1. | 2427R657S1 | [1] | SASH | |
| 88-2. | 2427Z555 | [2] | GLASS | KOB |
| 88-3. | 2427R657S3 | [1] | CHANNEL | CHANNEL |
| 88-4. | 2427R657S4 | [1] | LOCK | KOB Superseded by part number: 24100R164S4 |
| 88-5. | 2427R657S5 | [1] | LOCK | LOCK |
| 88-6. | 2427R657S6 | [1] | SPACER | KOB |
| 88-7. | 2427R657S7 | [1] | STRIKER PLATE | KOB |
| 88-8. | 2427R657S8 | [1] | STRIKER PLATE | KOBSTRIKER |
| 88-9. | 2427R657S9 | [1] | SEAL | |
| 88-10. | 2427R657S10 | [1] | WEATHERSTRIP | KOB |
| 88-11. | 2427R657S11 | [1] | SEAL | |
| 88-12. | 2427R657S12 | [1] | PLATE | |
| 89. | 2416Z472D13 | [1] | STRIP, WEATHER | |
| 90. | 2427R659 | [1] | PAD | |
| 100. | 24100P1061F1 | [1] | WAD | KOB |
| 100-1. | 24100P1061S1 | [1] | FRAME | KOBFRAME |
| 100-2. | 2427T845 | [1] | GLASS | KOB |
| 100-3. | 2427T846 | [1] | GLASS | KOB |
| 100-4. | 24100P1061S2 | [1] | LOCK | KOBASSY |
| 100-5. | 24100P1061S3 | [1] | LOCK | KOBASSY |
| 100-6. | 24100P1061S4 | [1] | SEAL | KOB |
| 100-7. | 24100P1061S5 | [1] | GROMMET | KOBCHANNEL |
| 100-8. | 24100P1061S6 | [1] | SEAL | KOBSTRIP, WEATHER |
| 100-9. | 24100P1061S7 | [1] | RUBBER | |
| 100-10. | 24100P1061S8 | [1] | RUBBER SLEEVE | KOB |
| 101. | 2416Z341D4 | [1] | RUBBER | KOBSTRIP, WEATHER |
| 102. | 2488Z155 | [2] | SPARE PART | HITMOTOR, WIPER Superseded by part number: 2456R173D20 |
| 104. | R79P0022D3 | [2] | WIPER ARM | KOBARM, WIPER |
| 105. | 2479R718 | [1] | WIPER BLADE | KOB |
| 106. | 2479R719 | [1] | WIPER BLADE | KOB |
| 109. | ZS31C04016 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 16mm | KOBM04x0.7x16mm |
| 110. | 2414T2007 | [1] | COVER | KOBBRACKET |
| 111. | 24100J6284S111 | [2] | CAPSCREW | |
| 112. | 2416P7231 | [1] | STAY | KOBSTAY |
| 113. | ZW16X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 114. | ZW26X16000 | [1] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 115. | ZS18C16045 | [1] | SCREW,Hex, M16 x 45mm | KOBM16x2.0x45mm |
| 123. | 24100J6284S123 | [1] | BUSHING | |
| 124. | 24100J6284S124 | [1] | BUSHING | |
| 125. | 24100J6284S125 | [1] | BUSHING | |
| 126. | 2416Z469D2 | [2] | SEAL, RUBBER | SEAL, RUBBER |
| 128. | 24100J6284S128 | [2] | SEAL, RUBBER | |
| 130. | 2479Z894D1 | [1] | HARNESS | HARNESS |
| 131. | 2479Z894D2 | [1] | WIRE HARNESS | KOB |
| 132. | 2479Z988 | [1] | HARNESS | HARNESS |
| 133. | 2479Z893D2 | [1] | HARNESS | HARNESS |
| 134. | 2432Z309D1 | [2] | CLAMP | KOB |
| 136. | 2479Z888 | [1] | HARNESS | |
| 137. | 2479Z995 | [1] | HARNESS | |
| 138. | 2420Z1032 | [1] | GROMMET | KOBGROMMET |
| 139. | 2420Z1031 | [1] | GROMMET | KOBGROMMET |
| 140. | 24100J6284S140 | [3] | GROMMET | |
| 142. | 2479Z893D3 | [1] | HARNESS | HARNESS |
| 143. | 2420Z1030 | [2] | KEY | KOB Superseded by part number: YN50S01010P1 |
