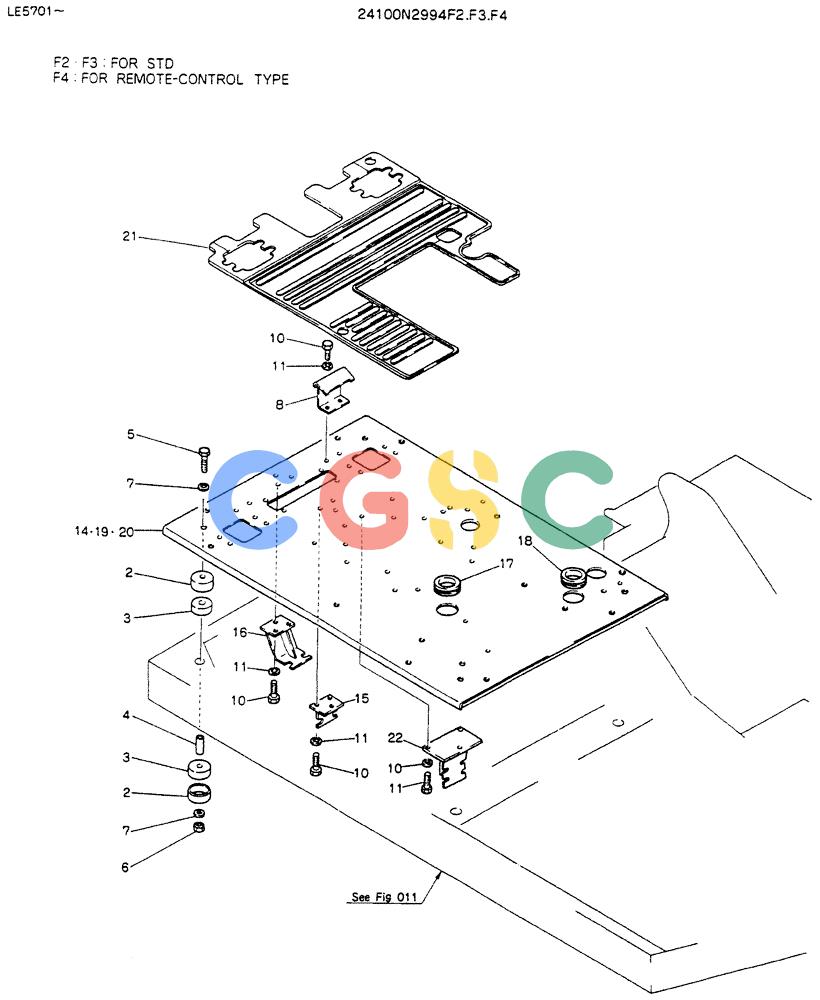

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-006) - PLATE ASSY, FLOOR, P/N 24100N2994F2, F3, F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
973 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2994F2 | [1] | PLATE ASSY, FLOOR, Serial Range: LE-5701-LE-5704 | |
| . . | 24100N2994F3 | [1] | PLATE ASSY, FLOOR, Start Serial: LE-5704 | |
| 2. | 2414T2673 | [12] | COVER | KOB |
| 3. | 2416Z253D2 | [12] | RUBBER SLEEVE | KOB |
| 4. | 2418T9226D5 | [6] | SPACER | KOB |
| 5. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 7. | R16T0152D2 | [12] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 8. | 2422T547 | [2] | STEP | |
| 10. | ZS18C10025 | [10] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm, Serial Range: LE-5701-LE-5703 |
| . . | ZS18C10025 | [16] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm, Start Serial: LE-5704 |
| 11. | ZW26X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, Serial Range: LE-5701-LE-5703 |
| . . | ZW26X10000 | [16] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, Start Serial: LE-5704 |
| 14. | 2422N876 | [1] | PLATE, FLOOR, Serial Range: LE-5701-LE-5703 | |
| 15. | 2416T13186 | [1] | BRACKET | |
| 16. | 2416P8731 | [1] | BRACKET | |
| 17. | 2420Z1189 | [1] | GROMMET | KOB |
| 18. | 2420Z1195 | [1] | GROMMET | |
| 19. | 2422N875 | [1] | PLATE,FLOOR, Start Serial: LE-5704 | |
| 21. | 2427U348D1 | [1] | FLOOR MAT | KOBPLATE |
| 22. | 2416P8720 | [2] | BRACKET, Start Serial: LE-5704 | |
| . . | 24100N2994F4 | [1] | PLATE ASSY, FLOOR | |
| 20. | 2422N865 | [1] | PLATE, FLOOR | |
