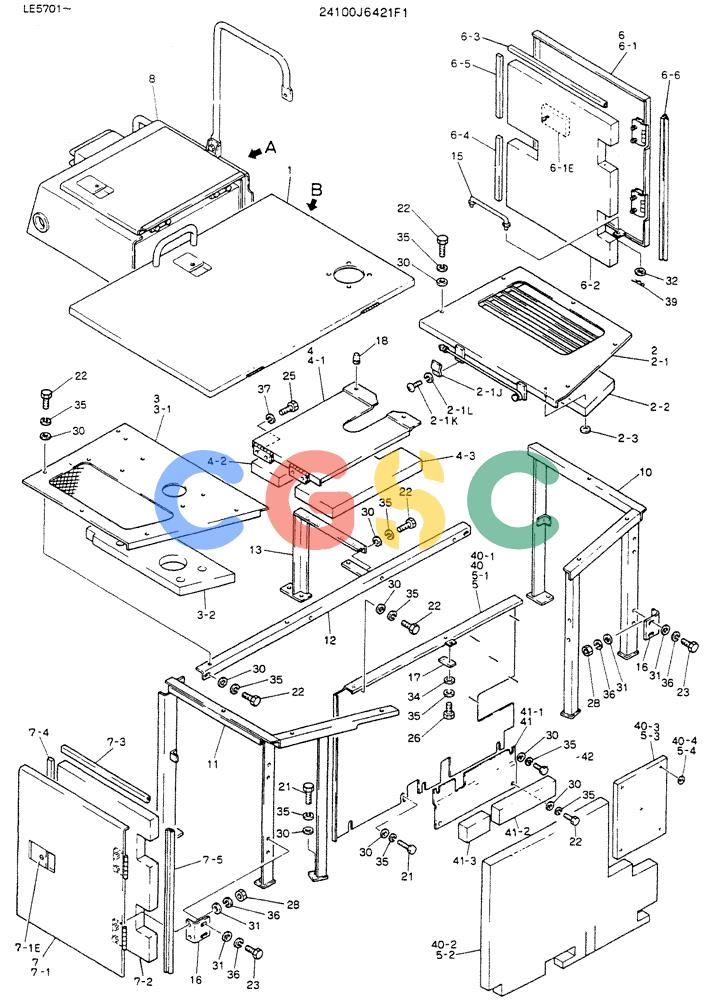

| . . | 24100J6421F1 | [1] | GUARD ASSY | |
| 1. | 2414P4019F1 | [1] | COVER ASSY COVER ASSY | COVER ASSY COVER ASSY |
| 1-1. | 2414N1963 | [1] | COVER | |
| 1-1G. | 2427R476F1 | [1] | LOCK | KOBLOCK Superseded by part number: 2421R175F2 |
| 1-2. | 2416Z500 | [1] | RUBBER, CUSHION | |
| 1-3. | 2416Z499D1 | [1] | RUBBER, CUSHION | |
| 1-4. | 2416Z499D2 | [2] | RUBBER, CUSHION | |
| 1-5. | 24791129 | [1] | INSULATION, SOUND | |
| 1-6. | 2479T1130 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 1-7. | 2479T1131 | [1] | INSULATION, SOUND | |
| 1-8. | 2479T1132 | [1] | INSULATION, SOUND | |
| 1-9. | 2418T8864 | [17] | WASHER | KOB |
| 2. | 2414T2770F1 | [1] | COVER ASSY | COVER ASSY |
| 2-1. | 2414P4021 | [1] | COVER | |
| 2-1J. | B16T0530 | [1] | CLIP | CLIP |
| 2-1K. | ZS31C06008 | [2] | MACHINE SCREW M06x1.0x08mm | MACHINE SCREW M06x1.0x08mm |
| 2-1L. | ZW26K06000 | [2] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 2-2. | 2479T1134 | [1] | INSULATION, SOUND | |
| 2-3. | 2418T8864 | [8] | WASHER | KOB |
| 3. | 2414T2815F1 | [1] | COVER ASSY | COVER ASSY |
| 3-1. | 2414P4093 | [1] | COVER | |
| 3-2. | 2479T1198 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 4. | 2414T2820F1 | [1] | COVER ASSY | |
| 4-1. | 2416P8588 | [1] | COVER | |
| 4-2. | 2479T1135 | [1] | INSULATION, SOUND | |
| 4-3. | 2479T1136 | [1] | INSULATION, SOUND | |
| 5. | 2414T2816F1 | [1] | COVER ASSY, Serial Range: LE-5701-LE-5892 | |
| 5-1. | 2414N1988 | [1] | COVER | |
| 5-2. | 2479T1199 | [1] | INSULATION, SOUND | |
| 5-3. | 2479T1138 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 5-4. | 2418T8864 | [5] | WASHER | KOB |
| 6. | 2414T2772F1 | [1] | COVER ASSY | COVER ASSY |
| 6-1. | 2414P4022 | [1] | COVER | |
| 6-1E. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 6-2. | 2479T1139 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 6-3. | 2416Z490D8 | [1] | RUBBER, CUSHION | |
| 6-4. | 2416Z436D6 | [1] | RUBBER, CUSHION | |
| 6-5. | 2416Z436D7 | [1] | RUBBER, CUSHION | |
| 6-6. | 2416Z504D1 | [1] | RUBBER, CUSHION | |
| 7. | 2414T2773F1 | [1] | COVER ASSY | COVER ASSY |
| 7-1. | 2414P4023 | [1] | COVER | |
| 7-1E. | 2427R476F2 | [1] | LOCK | KOBLOCK Superseded by part number: 2421R175F1 |
| 7-2. | 2479T1140 | [1] | INSULATION, SOUND | |
| 7-3. | 2416Z490D7 | [1] | RUBBER, CUSHION | |
| 7-4. | 2416Z436D2 | [1] | RUBBER, CUSHION | |
| 7-5. | 2416Z504D1 | [1] | RUBBER, CUSHION | |
| 8. | 24100P1633 | [1] | COVER, BATTERY ASSY | COVER, BATTERY ASSY |
| 8-1. | 2421N161 | [1] | BOX CAPSCREW | BOX CAPSCREW |
| 8-2. | 2414P3997 | [1] | COVER COVER | COVER COVER |
| 8-2B. | 2427R476F1 | [1] | LOCK | KOBLOCK Superseded by part number: 2421R175F2 |
| 8-3. | 2416Z440D3 | [1] | CUSHION | KOB |
| 8-4. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 8-5. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 8-6. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9. | 2414P3893 | [1] | COVER | KOB |
| 10. | 2416N3310 | [1] | BRACKET | |
| 11. | 2416N3309 | [1] | BRACKET | |
| 12. | 2416P8736 | [1] | BRACKET | |
| 13. | 2416P8726 | [1] | BRACKET | |
| 14. | 2416T12935 | [1] | RIGID TUBE | KOB |
| 15. | 2416T6289D2 | [2] | STAY | KOBSTAY |
| 16. | 2416T13261 | [4] | BRACKET | KOB |
| 17. | 2418T17520 | [1] | PLATE | |
| 18. | 2416T8283 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 19. | 2420T4256 | [1] | GROMMET | |
| 20. | ZS18C12050 | [1] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 21. | ZS18C12030 | [8] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm, Serial Range: LE-5701-LE-5892 |
| . . | ZS18C12030 | [9] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm, Start Serial: LE-5893 |
| 22. | ZS18C12025 | [26] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm, Serial Range: LE-5701-LE-5892 |
| . . | ZS18C12025 | [25] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm, Start Serial: LE-5893 |
| 23. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 24. | ZS18C10018 | [4] | SCREW,Hex, M10 x 18mm | KOBM10x1.50x18mm |
| 25. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 26. | ZS18C06012 | [2] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 27. | ZN17C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 28. | ZN17C10008 | [8] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 30. | 2418T10357 | [33] | WASHER | KOBID 13 x OD 30 x Th 3.2mm, Serial Range: LE-5701-LE-5892 Superseded by part number: 2418T12345 |
| . . | 2418T10357 | [35] | WASHER | KOBID 13 x OD 30 x Th 3.2mm, Start Serial: LE-5893 Superseded by part number: 2418T12345 |
| 31. | 2418T12346 | [16] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 32. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 33. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 34. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 35. | ZW26X12000 | [31] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Serial Range: LE-5701-LE-5892 |
| . . | ZW26X12000 | [33] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Start Serial: LE-5893 |
| 36. | ZW26X10000 | [20] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 37. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 38. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 39. | 2419R9D3 | [2] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 40. | 2414T2846F1 | [1] | COVER ASSY, Start Serial: LE-5893 | COVER ASSY, Start Serial: LE-5893 |
| 40-1. | 2414N3895 | [1] | COVER | |
| 40-2. | 2479T1234 | [1] | INSULATION, SOUND | |
| 40-3. | 2479T1138 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 40-4. | 2418T8864 | [5] | WASHER | KOB |
| 41. | 2414T2847F1 | [1] | COVER ASSY, Start Serial: LE-5893 | COVER ASSY, Start Serial: LE-5893 |
| 41-1. | 2414T2848 | [1] | COVER | |
| 41-2. | 2479T1235D1 | [1] | INSULATION, SOUND | |
| 41-3. | 2479T1235D2 | [1] | INSULATION, SOUND | |
| 42. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm, Start Serial: LE-5893 |
