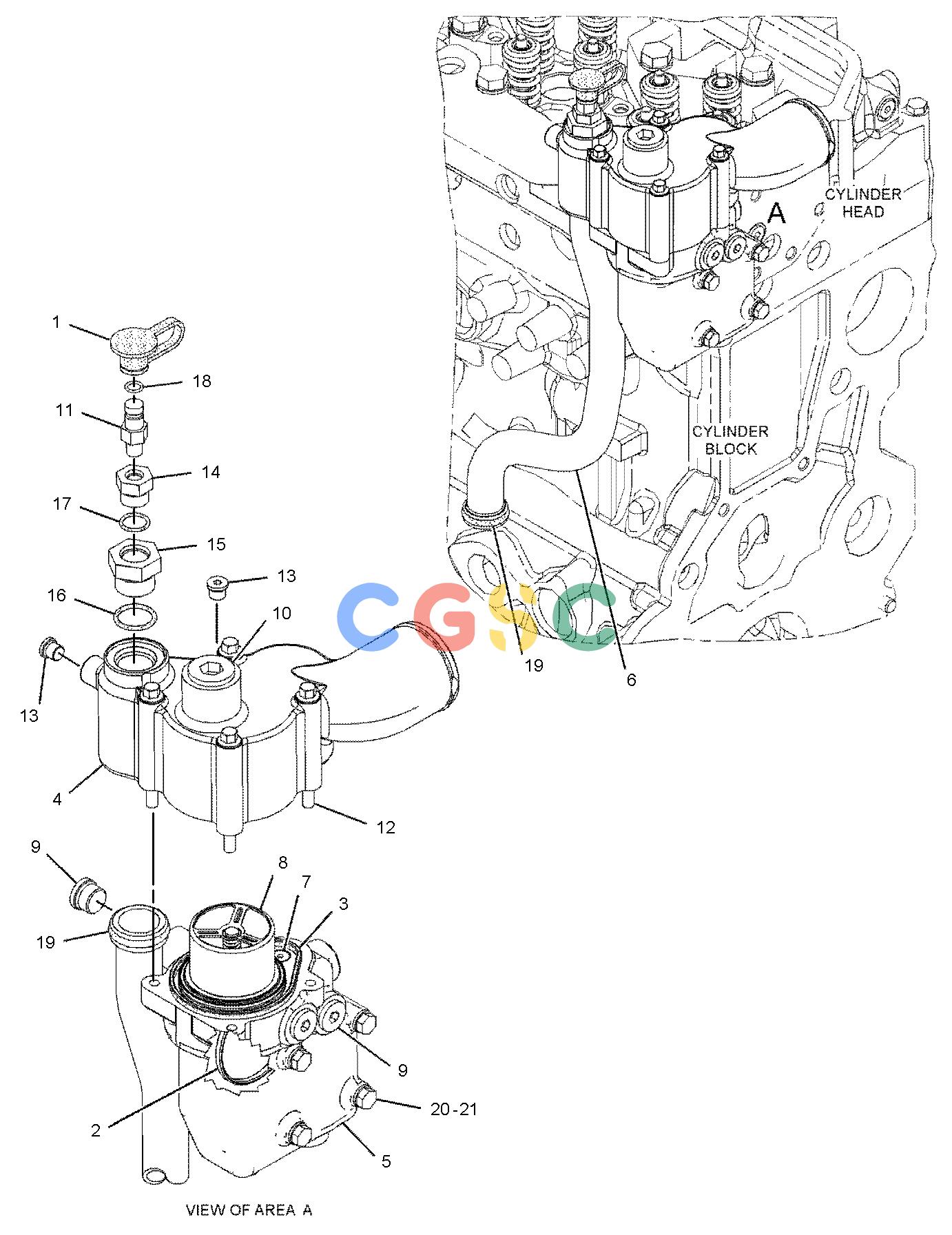

卡特零件查询（730） 231-9440: LINES GP-WATER
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 157-0670C | [1] | CAP-DUST | |
| 2. | 224-6361 | [1] | SEAL | |
| 3. | 227-5075 | [1] | SEAL(TEMPERATURE REGULATOR HOUSING) | |
| 4. | 238-6732 | [1] | HOUSING AS-REGULATOR | |
| | 3S-9643 | [1] | SEAL-LIP TYPE(WATER TEMPERATURE REGULATOR) | |
| 5. | 238-6721 | [1] | BASE | |
| 6. | 238-6728 | [1] | TUBE-BYPASS | |
| 7. | 239-8135 | [1] | VALVE AS-VENT(TEMPERATURE REGULATOR) | |
| | 9X-7380 | [1] | SEAL-O-RING | |
| 8. | 248-5513 | [1] | REGULATOR-TEMPERATURE(92-DEG C)(WATER) | |
| 9. | 353-5126 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-6609 | [1] | SEAL-O-RING | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| 10. | 353-5140 | [1] | PLUG AS | |
| | 6V-5063 | [1] | SEAL-O-RING | |
| | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 11. | 154-9023C | [1] | VALVE-SAMPLING(COOLANT) | |
| 12. | 230-2603M | [4] | BOLT(M8X1.25X90-MM) | |
| 13. | 304-8008 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 14. | 3P-1932C | [1] | ADAPTER | |
| 15. | 6V-1722C | [1] | ADAPTER | |
| 16. | 6V-5063 | [1] | SEAL-O-RING | |
| 17. | 6V-6609C | [1] | SEAL-O-RING | |
| 18. | 6V-9027C | [1] | SEAL-O-RING | |
| 19. | 7L-6580 | [2] | SEAL-O-RING | |
| 20. | 8T-0292M | [4] | BOLT(M8X1.25X90-MM) | |
| 21. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
