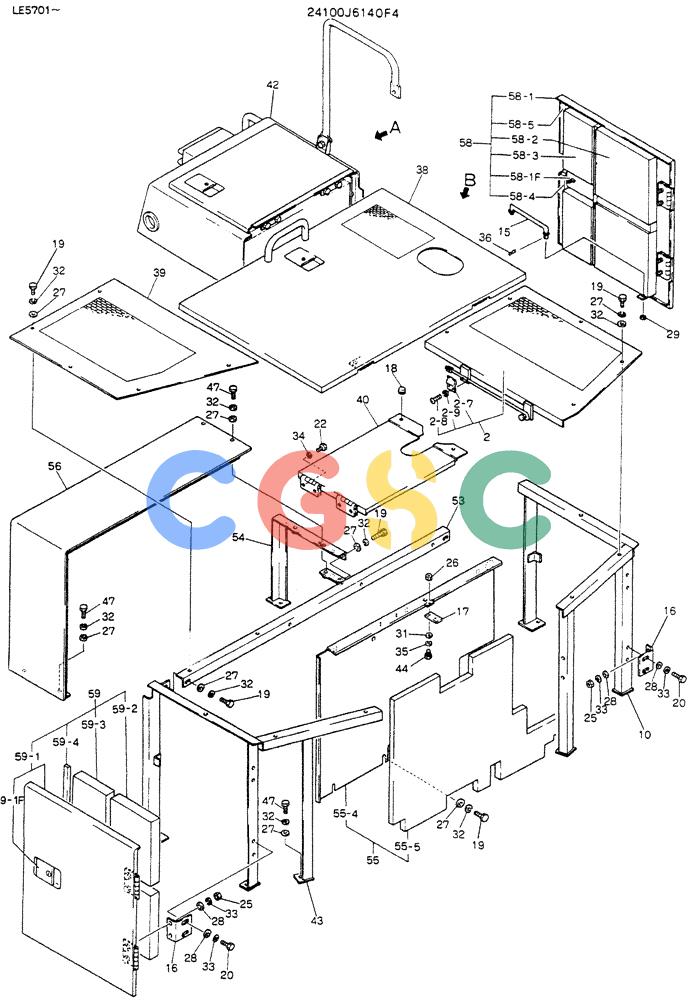

| . . | 24100J6140F4 | [1] | GUARD ASSY | |
| 2. | 2414P3925 | [1] | COVER | |
| 2-7. | B16T0530 | [1] | CLIP | CLIP |
| 2-8. | ZS31C06008 | [2] | MACHINE SCREW M06x1.0x08mm | MACHINE SCREW M06x1.0x08mm |
| 2-9. | ZW26K06000 | [2] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 10. | 2416P8596 | [1] | BRACKET | |
| 14. | 2416T12935 | [1] | RIGID TUBE | KOB |
| 15. | 2416T6289D2 | [2] | STAY | KOBSTAY |
| 16. | 2416T13007 | [4] | BRACKET | KOB |
| 17. | 2418T17520 | [1] | PLATE | |
| 18. | 2416T8283 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 19. | ZS18C12025 | [26] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 20. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 21. | ZS18C10018 | [4] | SCREW,Hex, M10 x 18mm | KOBM10x1.50x18mm |
| 22. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | ZN17C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 25. | ZN17C10008 | [8] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 27. | 2418T10357 | [36] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 28. | 2418T12346 | [16] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 29. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 30. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 31. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 32. | ZW26X12000 | [34] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 33. | ZW26X10000 | [20] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 34. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 35. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 36. | 2419R9D3 | [2] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 37. | ZS18C12050 | [1] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 38. | 2414T2756F1 | [1] | COVER ASSY,BATTERY | |
| 38-1F. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 38-2. | 2416Z500 | [1] | RUBBER,CUSHION, Serial Range: LE5701--LE6249- | |
| . . | 2416Z552 | [1] | RUBBER,CUSHION, Start Serial: LE6250- | |
| 38-3. | 2416Z499D1 | [1] | RUBBER,CUSHION, Serial Range: LE5701--LE6249- | |
| . . | 2416Z553D1 | [1] | RUBBER,CUSHION, Start Serial: LE6250- | |
| 38-4. | 2416Z499D2 | [2] | RUBBER.CUSHION, Serial Range: LE5701--LE6249- | |
| . . | 2416Z552D2 | [2] | RUBBER,CUSHION, Start Serial: LE6250- | |
| 38-5. | 2479T1129 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 38-6. | 2479T1172 | [1] | INSULATION,SOUND | |
| 39. | 2414T2757 | [1] | COVER | |
| 40. | 2416P8588 | [1] | COVER, Serial Range: LE5701--LE6249- | |
| . . | 2414P6061 | [1] | COVER, Start Serial: LE6250- | COVER, Start Serial: LE6250- |
| 42. | 24100P1633 | [1] | COVER, BATTERY ASSY | COVER, BATTERY ASSY |
| 42-1. | 2421N161 | [1] | BOX | BOX |
| 42-2. | 2414P3997 | [1] | COVER | COVER |
| 42-2B. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 42-3. | 2416Z440D3 | [1] | CUSHION | KOB |
| 42-4. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 42-5. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 42-6. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 43. | 2416P8666 | [1] | BRACKET | |
| 44. | ZS18C06012 | [2] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 45. | 2420T4256 | [1] | GROMHET | |
| 46. | 2414P3893 | [1] | COVER | KOB |
| 47. | ZS18C12030 | [11] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 53. | 2416P8763 | [1] | BRACKET | |
| 54. | 2416P8764 | [1] | BRACKET | |
| 55. | 2414T2783F3 | [1] | COVER ASSY | |
| 55-4. | 2414P4104 | [1] | COVER | |
| 55-5. | 2479T1222 | [1] | INSULATION,SOUND | |
| 56. | 2414N1991 | [1] | COVER | |
| 58. | 2414T2854F1 | [1] | COVER ASSY | |
| 58-1. | 2414P4127 | [1] | COVER | |
| 58-1F. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 58-2. | 2479T1238 | [2] | INSULATION,SOUND | |
| 58-3. | 2479T1043 | [2] | INSULATION,SOUND | |
| 58-4. | 2416Z485D4 | [1] | RUBBER,CUSHION | |
| 58-5. | 2416Z485D5 | [1] | RUBBER,CUSHION | |
| 59. | 2414T2853 | [1] | COVER ASSY | |
| 59-1. | 2414P4126 | [1] | COVER | |
| 59-1F. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 59-2. | 2479T1237 | [2] | INSULATION,SOUND | |
| 59-3. | 2479T1043 | [2] | INSULATION,SOUND | |
| 59-4. | 2416Z485D1 | [1] | CUSHION | KOB |
