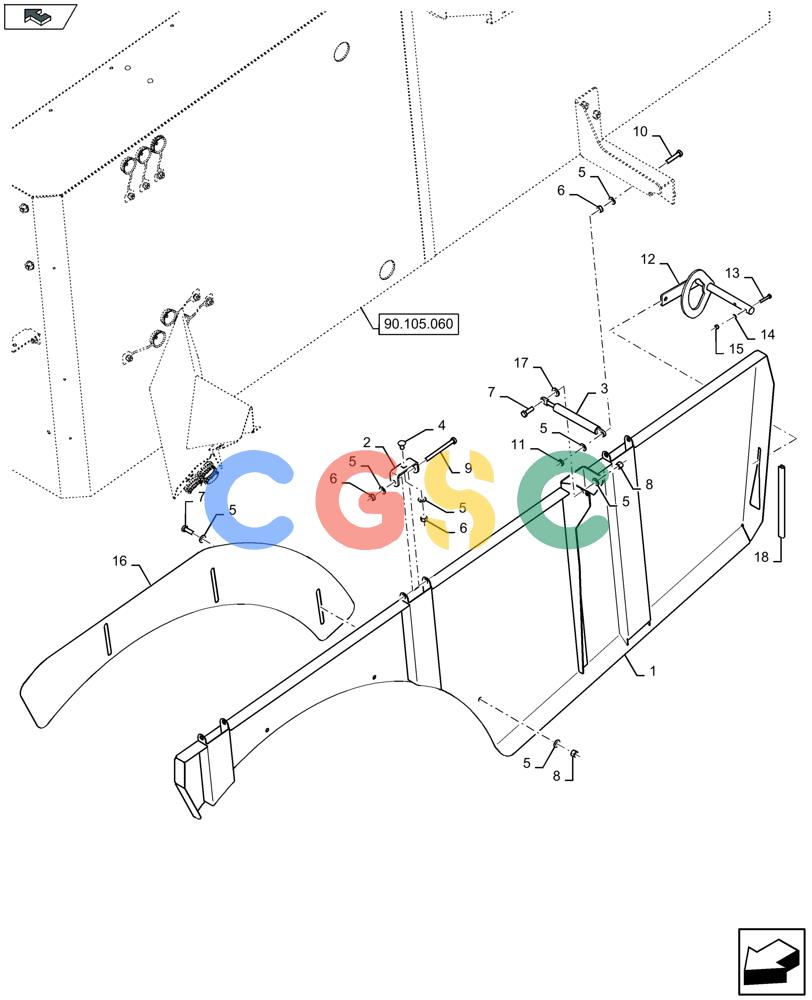

| 1. |
47392736
|
[1] |
PLATE
|
ZED
, Serial Range: -C144
|
| 1. |
47910431
|
[1] |
DOOR
|
ZED
, Start Serial: D145
|
| 1. |
47444157
|
[1] |
DOOR
|
ZED
, Serial Range: -C144
|
| 2. |
47426051
|
[3] |
PLATE
|
ZED
|
| 3. |
84434897
|
[1] |
GAS STRUT,285.5mm Extended, 185.5mm Compressed
|
ZED
|
| 4. |
86619060
|
[3] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 5. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 6. |
9706690
|
[7] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 7. |
43127
|
[1] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 8. |
393393
|
[1] |
NUT
|
BHB
, Serial Range: -C121
|
| 8. |
412250
|
[1] |
NUT,M8 x 1.25, Cl 8
|
WIN
, Start Serial: D122 Superseded by part number: 86528579
|
| 9. |
86508571
|
[3] |
BOLT,Hex, M8 x 90mm, Cl 8.8
|
NH
|
| 10. |
120106
|
[1] |
BOLT,M8 x 1.25 x 45.45mm, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 11. |
16102311
|
[1] |
THIN NUT,Thin, M8 x 1.25, Cl 04
|
TTF
Superseded by part number: 103889
|
| 12. |
47406882
|
[1] |
HANDLE
|
ZED
, Serial Range: -C144
|
| 12. |
47910445
|
[1] |
HANDLE
|
ZED
, Start Serial: D145
|
| 13. |
86508566
|
[2] |
BOLT,Hex, M5 x 30mm, Cl 8.8
|
WIN
|
| 14. |
9824326
|
[2] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
|
| 15. |
86639241
|
[2] |
NUT,Prev Torque, M5 x 0.8, Cl 8
|
FAR
|
| 16. |
47426055
|
[1] |
PLATE
|
ZED
, Serial Range: -C144
|
| 16. |
47910443
|
[1] |
PLATE
|
ZED
, Start Serial: D145
|
| 17. |
87015284
|
[1] |
WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk
|
WIC
|
| 18. |
291186
|
[1] |
PROTECTION STRIP,9.9mm W
|
NH
L= 0.2M, Start Serial: D145 Superseded by part number: 47560081, 47560080
|
