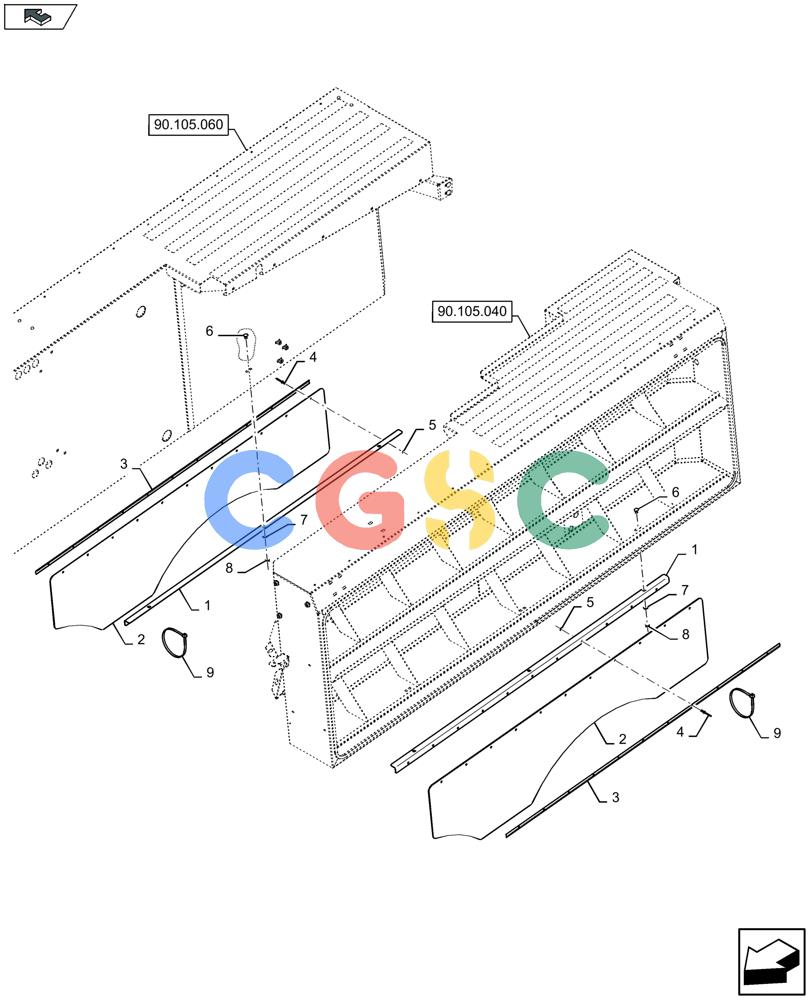

凯斯零件查询(LB424R) - BALER (9/12-) (90.105.150) - LOWER SHIELDS, TANDEM AXLE, AXLE SPACER 25 AND 50MM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
562 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47364612
|
[2] |
PLATE
|
ZED
, Serial Range: -C071 Superseded by part number: 47426050
|
| 1. |
47426048
|
[2] |
PLATE
|
ZED
, Serial Range: -F072136 Superseded by part number: 47426050
|
| 1. |
47426050
|
[1] |
PLATE
|
ZED
, Start Serial: D137
|
| 1. |
84545426
|
[2] |
PLATE
|
ZED
, Serial Range: -C071 Superseded by part number: 47426050
|
| 2. |
47364616
|
[2] |
FLAP,477.1mm W x 1607.7mm L
|
ZED
|
| 2. |
84528509
|
[2] |
FLAP,578.3mm W x 1607.7mm L
|
ZED
|
| 3. |
84545421
|
[2] |
MOUNTING PLATE
|
ZED
|
| 4. |
445395
|
[22] |
RIVET,Pop, 4.8mm OD x 18.1mm L
|
IH
|
| 5. |
12639701
|
[22] |
WASHER,6.15mm ID x 11mm OD x 1mm Thk
|
BHB
, Serial Range: -C136 Superseded by part number: 17094724
|
| 5. |
9824326
|
[22] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
, Start Serial: D137
|
| 6. |
86619060
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 7. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 8. |
9706690
|
[6] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 9. |
86566990
|
[12] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
, Start Serial: D137
|
