神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-018) - COVER ASSY, UNDER (FOR NORTH EUROPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
722 次

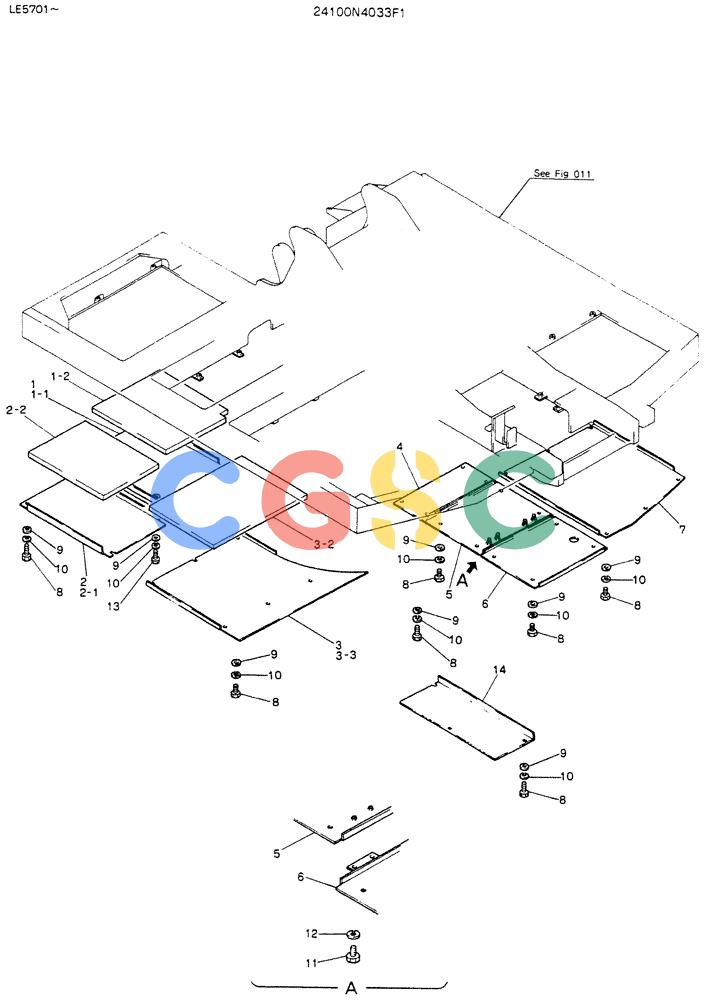

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4033F1 | [1] | COVER ASSY.UNDER | |
| 1. | 2414T2829F1 | [1] | COVER ASSY | |
| 1-1. | 2414T2828 | [1] | COVER | |
| 1-2. | 2479T1219 | [1] | INSULATION, SOUND | |
| 2. | 2414T2830F1 | [1] | COVER ASSY | |
| 2-1. | 2414T2827 | [1] | COVER | |
| 2-2. | 2479T1218 | [1] | INSULATION, SOUND | |
| 3. | 2414T2800F2 | [1] | COVER ASSY | |
| 3-2. | 2479T1150 | [1] | INSULATION,SOUND | |
| 3-3. | 2414T2831 | [1] | COVER | |
| 4. | 2418T2843 | [1] | COVER ASSY | |
| 5. | 2414T2835 | [1] | COVER ASSY | |
| 6. | 2414T2834 | [1] | COVER ASSY | |
| 7. | 2414T2826 | [1] | COVER ASSY | |
| 8. | ZS18C12030 | [30] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 9. | 2418T10357 | [32] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 10. | ZW26X12000 | [32] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 11. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 12. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 14. | 241412837 | [1] | COVER | |
