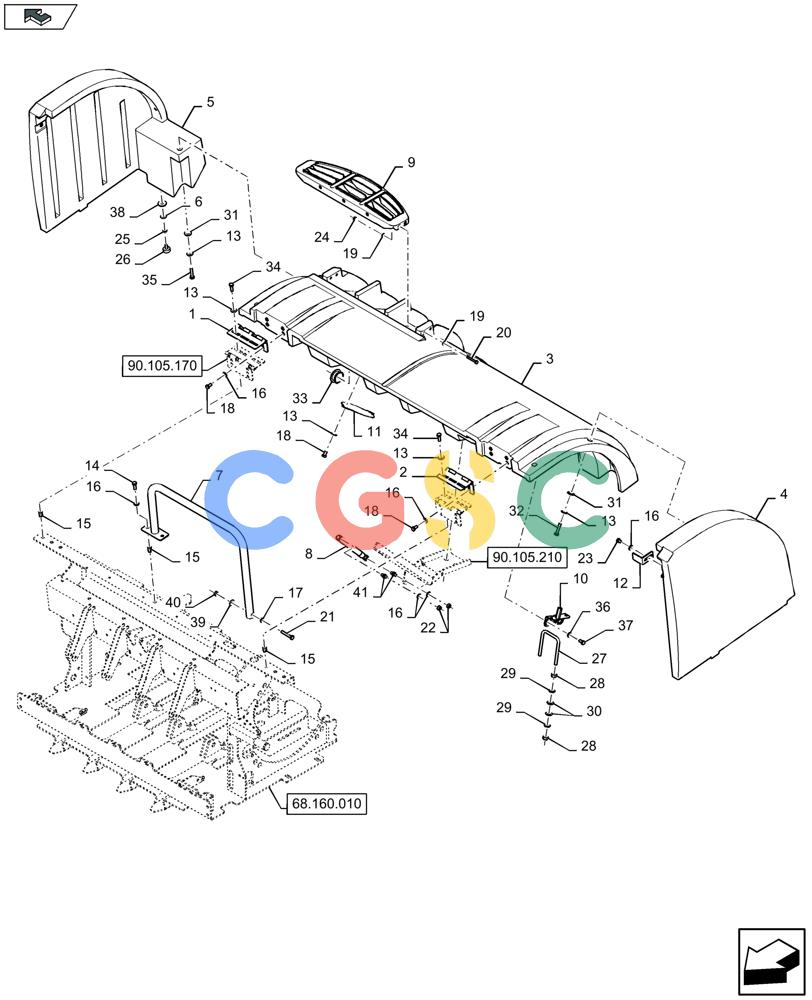

| 1. |
84382682
|
[1] |
HINGE
|
ZED
|
| 2. |
84293873
|
[1] |
HINGE
|
ZED
|
| 3. |
84300805
|
[1] |
SHIELD
|
ZED
|
| 3. |
84293892
|
[1] |
SHIELD
|
ZED
|
| 4. |
84293899
|
[1] |
SHIELD
|
ZED
|
| 4. |
84300796
|
[1] |
SHIELD
|
ZED
|
| 5. |
84300798
|
[1] |
SHIELD
|
ZED
|
| 5. |
84293902
|
[1] |
SHIELD
|
ZED
|
| 6. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
, Start Serial: D137
|
| 7. |
84412337
|
[1] |
HANDRAIL
|
ZED
|
| 7. |
84284763
|
[1] |
HANDRAIL
|
ZED
, Serial Range: -C161
|
| 8. |
84078857
|
[1] |
GAS STRUT
|
ZED
, Serial Range: -C161
|
| 8. |
48029160
|
[1] |
GAS STRUT
|
ZED
, Start Serial: D162
|
| 9. |
84521429
|
[1] |
STEP
|
ZED
|
| 10. |
87659452
|
[1] |
LOCK
|
ZED
, Serial Range: -C087
|
| 11. |
84599753
|
[2] |
PLATE
|
ZED
|
| 12. |
84603880
|
[1] |
SUPPORT
|
ZED
|
| 13. |
412650
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk
|
ZED
|
| 14. |
43127
|
[2] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 15. |
87556072
|
[8] |
NUT,Flng, 11.8mm OD x 19.8mm L
|
ZED
|
| 17. |
86624184
|
[1] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
, Serial Range: -C136
|
| 17. |
333962
|
[1] |
CLAMP
|
ZED
, Start Serial: D137
|
| 18. |
120103
|
[12] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 19. |
86588450
|
[8] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
, Serial Range: -C084
|
| 19. |
140040
|
[8] |
WASHER,6.6mm ID x 22mm OD x 2mm Thk
|
ZED
, Start Serial: D085
|
| 20. |
84068386
|
[4] |
BOLT,Hex, M6 x 45mm, Cl 10.9
|
ZED
|
| 21. |
87015731
|
[1] |
BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd
|
ZED
|
| 22. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 23. |
336199
|
[1] |
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 16043024
|
| 24. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 25. |
16102311
|
[2] |
THIN NUT,Thin, M8 x 1.25, Cl 04
|
TTF
Superseded by part number: 103889
|
| 26. |
84000555
|
[2] |
INSULATOR,Bumper
|
ZED
, Serial Range: -C084
|
| 26. |
47478476
|
[2] |
STOP
|
ZED
, Start Serial: D085
|
| 27. |
84434067
|
[1] |
U-BOLT
|
ZED
, Serial Range: -C087
|
| 28. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
, Serial Range: -C087
|
| 29. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
, Serial Range: -C087
|
| 30. |
86625253
|
[4] |
WASHER,11mm ID x 24mm OD x 2mm Thk
|
FAR
, Serial Range: -C087
|
| 31. |
12647004
|
[1] |
WASHER,8.15mm ID x 25mm OD x 2.5mm Thk
|
IMO
|
| 32. |
43129
|
[6] |
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 33. |
9513759
|
[4] |
PLUG
|
ZED
|
| 34. |
43128
|
[6] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
, Start Serial: D085
|
| 38. |
87033737
|
[2] |
WASHER,9mm ID x 28mm OD x 3mm Thk
|
BRR
, Start Serial: D088
|
| 40. |
412250
|
[1] |
NUT,M8 x 1.25, Cl 8
|
WIN
, Start Serial: D137 Superseded by part number: 86528579
|
| 41. |
87603835
|
[2] |
BALL STUD,10mm D, M8 x 13mm
|
IMO
, Start Serial: D162
|
