卡特零件查询（730） 305-8496: GUARD GP-PLATFORM
广数供应链运营团队, 15 02月, 2025，浏览：
241 次

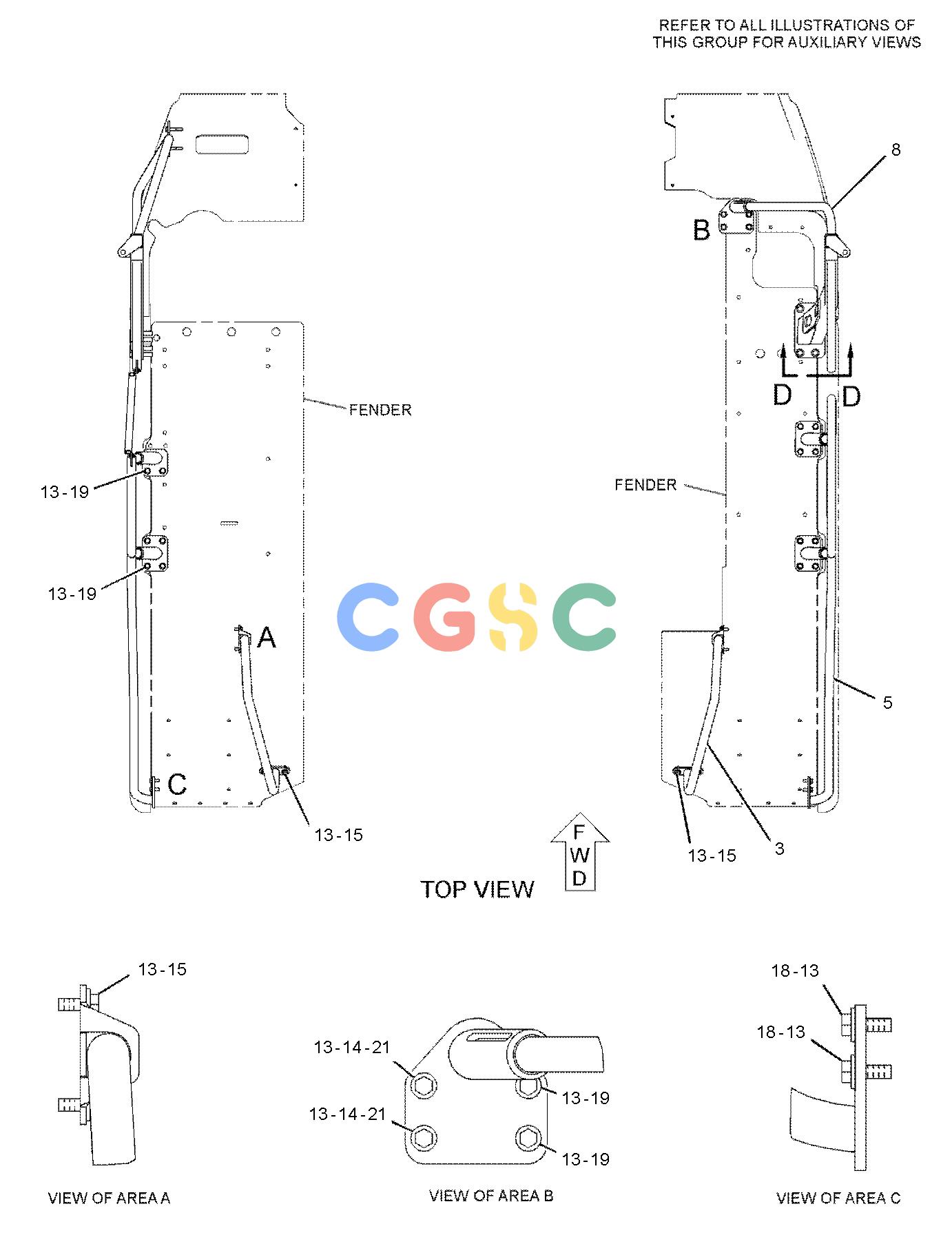

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7I-5783 | [1] | CHAIN | |
| 2. | 5P-0765E | | HOSE(33-CM) | |
| 3. | 242-6976 | [1] | HANDRAIL AS(RH) | |
| 4. | 242-6978 | [1] | HANDRAIL AS(LH) | |
| 5. | 305-8497 | [1] | GUARD AS(RH) | |
| 6. | 305-8506 | [1] | GUARD AS(LH) | |
| 7. | 305-8512 | [1] | HANDRAIL AS(FRONT, LH) | |
| 8. | 305-8514 | [1] | HANDRAIL AS(FRONT, RH) | |
| 9. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 10. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 11. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 12. | 7X-2555M | [4] | BOLT(M16X2X80-MM) | |
| 13. | 7X-7729 | [36] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 15. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 16. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 17. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 18. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 19. | 8T-4196M | [16] | BOLT(M10X1.5X35-MM) | |
| 20. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 21. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 22. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 23. | 8T-6868M | [4] | BOLT(M12X1.75X80-MM) | |
| 24. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 25. | 7X-2621M | [3] | BOLT(M10X1.5X12-MM) | |
| 26. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| | | | |
| | 323-9875F | [1] | HANDRAIL AS(FRONT, LH) | |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
