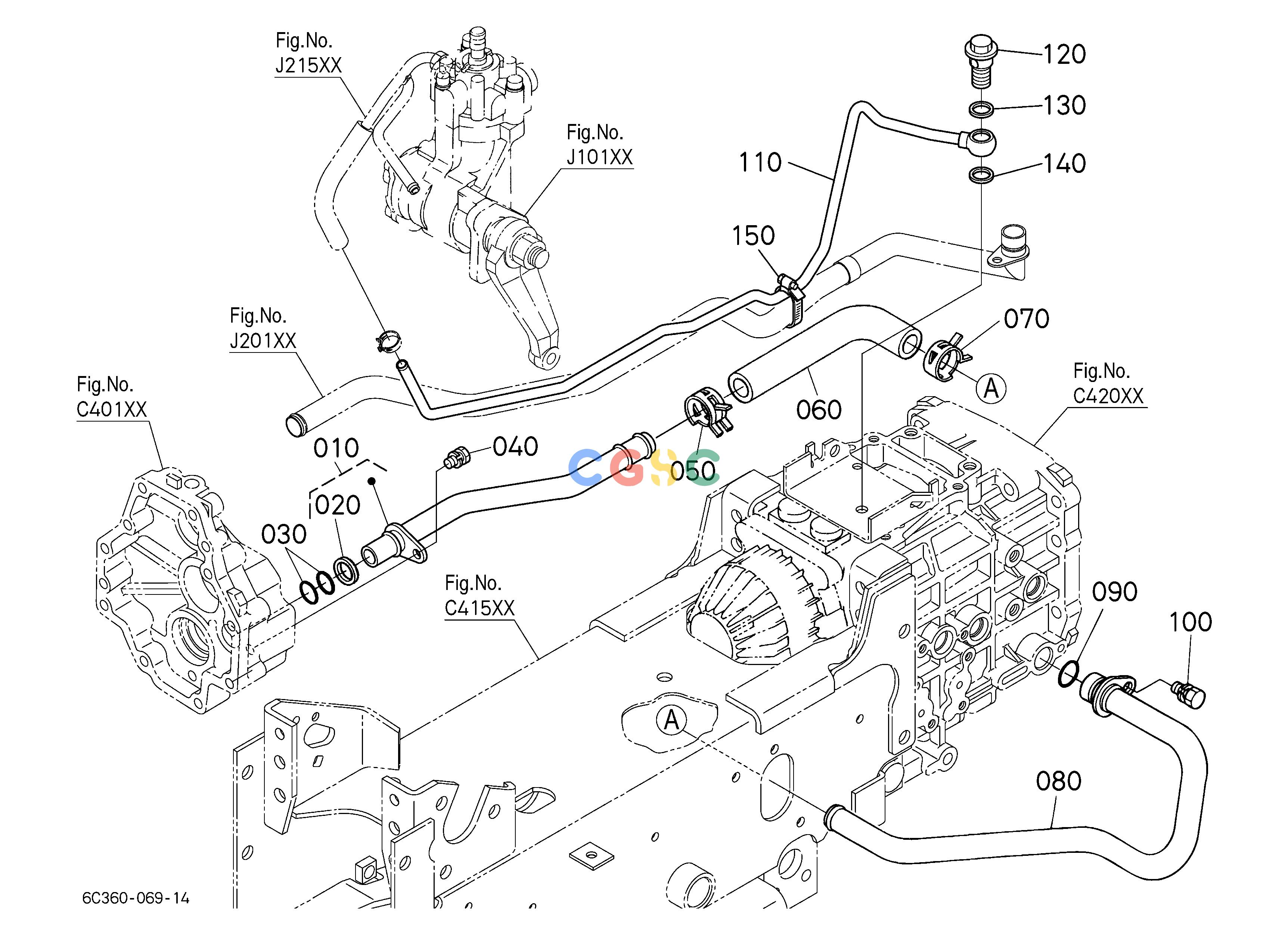

久保田零件查询J24500 HYDRAULIC OIL LINE (F/M) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1059 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C15013150
|
[1] |
PIPE
|
0.2860(lbs); 0.130
|
| 020. |
6C04013160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
0481606170
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 040. |
0113351020
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
0931888230
|
[1] |
CLAMP,HOSE
|
0.0176(lbs); 0.008
|
| 060. |
6C07013190
|
[1] |
HOSE,HYDRAULIC
|
0.1540(lbs); 0.070
|
| 070. |
0931888230
|
[1] |
CLAMP,HOSE
|
0.0176(lbs); 0.008
|
| 080. |
6C07013163
|
[1] |
PIPE
|
0.5940(lbs); 0.270
|
| 090. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 100. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 110. |
6C15013172
|
[1] |
PIPE
|
0.5500(lbs); 0.250
|
| 120. |
6C07039290
|
[1] |
BOLT,JOINT
|
0.1100(lbs); 0.050
|
| 130. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 140. |
1410253620
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 150. |
6795536230
|
[1] |
CLAMP
|
0.0506(lbs); 0.023
|
