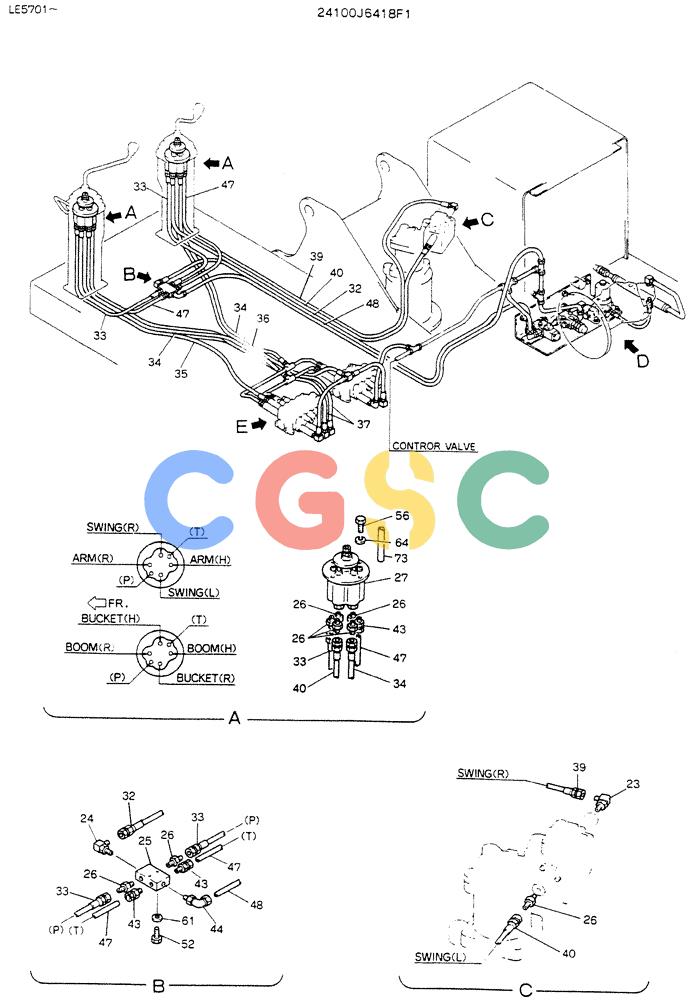

| . . | 24100J6418F1 | [1] | REMOTE-CONTROL ASSY | |
| 1. | ZA23B22000 | [1] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 2. | 2418T17352 | [1] | TUBE | |
| 3. | R18P0168D29 | [1] | FLEXIBLE HOSE | KOB |
| 4. | ZC15X03300 | [4] | CLIP | KOB |
| 5. | 2418T17353 | [1] | TUBE | |
| 6. | ZA33F22012 | [1] | ELBOW | KOB |
| 7. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 8. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) (PF3/8) |
| 9. | 2414P4075 | [1] | BRACKET | |
| 10. | 2446U230F1 | [1] | FILTER ASSY | KOB |
| 11. | 2420T4494 | [1] | PLUG | KOB |
| 12. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 13. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 14. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 15. | ZA33F10006 | [1] | ELBOW | KOB |
| 16. | ZD12P01400 | [3] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 17. | 2418T17355D1 | [2] | TUBE | |
| 18. | ZA23F10006 | [2] | HYD CONNECTOR | KOB |
| 19. | 2436R680F2 | [1] | VALVE PRESSURE RELIE | KOB |
| 20. | ZA23F10004 | [5] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 21. | ZD12P01100 | [6] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 22. | 2436R688F1 | [1] | SOLENOID VALVE | KOB |
| 23. | ZH32X04000 | [6] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 24. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| 25. | 2410T323 | [1] | BLOCK | KOB |
| 26. | ZH22X04000 | [14] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 27. | 2436U1169F2 | [2] | VALVE,PILOT | |
| 28. | 2418T17549 | [1] | TUBE | |
| 29. | 2418T17548 | [1] | TUBE | |
| 30. | ZH52F04000 | [1] | TEE | HIT |
| 31. | 2420R537D030 | [1] | HOSE,9.53mm ID x 300mm L | KOB |
| 32. | 2420R349D260 | [1] | HOSE | KOB2600mm Long (102-23/64 in) Superseded by part number: HX21E04260DX |
| 33. | 2420R349D13 | [2] | HOSE | HOSE |
| 34. | 2420R349D22 | [2] | HOSE ASSY | HOSE ASSY |
| 35. | 2420R349D170 | [1] | FLEXIBLE HOSE | KOB1700mm Long (66-59/64 in) Superseded by part number: HX21E04170DX |
| 36. | 2420R349D7 | [1] | HOSE | KOBHOSE Superseded by part number: 2420R349D200 |
| 37. | 2420R349D9 | [2] | HOSE ASSY | HOSE ASSY |
| 38. | 2420R349D025 | [2] | HOSE | KOBFLEXIBLE HOSE Superseded by part number: HX21E04025DX, 77254021 |
| 39. | 2420R349D10 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D350 |
| 40. | 2420R349D12 | [1] | HOSE | KOB Superseded by part number: HX21E04280DX |
| 41. | ZH31M08004 | [2] | ELBOW | KOB |
| 42. | ZH51K08000 | [3] | TEE | KOB |
| 43. | ZH21M08004 | [4] | HYD CONNECTOR | KOB |
| 44. | ZH31M08006 | [2] | ELBOW | KOB |
| 45. | ZH51M08006 | [1] | TEE | KOB |
| 46. | ZX15K08040 | [1] | PLASTIC-RUBBER TUBE | KOB |
| 47. | ZX15K08090 | [2] | FLEXIBLE HOSE | KOBTUBE.NYLON |
| 48. | ZX15K08260 | [1] | TUBE | KOB |
| 49. | ZX15K08026 | [1] | TUBE, NYLON | TUBE, NYLON |
| 50. | ZX15K08023 | [1] | TUBE,NYLON | |
| 51. | ZS13C10025 | [6] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 52. | ZS13C08035 | [2] | SCREW | KOBM08x1.25x35mm Superseded by part number: ZS18C08035 |
| 53. | ZS13C10035 | [3] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 54. | ZS13C08060 | [2] | CAPSCREW M08x1.25x60mm | CAPSCREW M08x1.25x60mm |
| 55. | ZS13C06060 | [2] | SCREW | KOBBOLT M06x1.0x60mm Superseded by part number: ZS18C06060 |
| 56. | ZS13C06012 | [8] | SCREW | KOBM06x1.0x12mm |
| 57. | ZN12C10008 | [3] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 58. | ZN12C08007 | [2] | NUT | KOBM08x1.25mm Superseded by part number: 77278252, ZN18C08007 |
| 59. | ZN12C06005 | [2] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 60. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 61. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 64. | ZW22X06000 | [10] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 67. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 68. | ZX15K08005 | [2] | TUBE | KOB |
| 73. | 2418Z560D4 | [1] | HOSE,LE5839- | |
