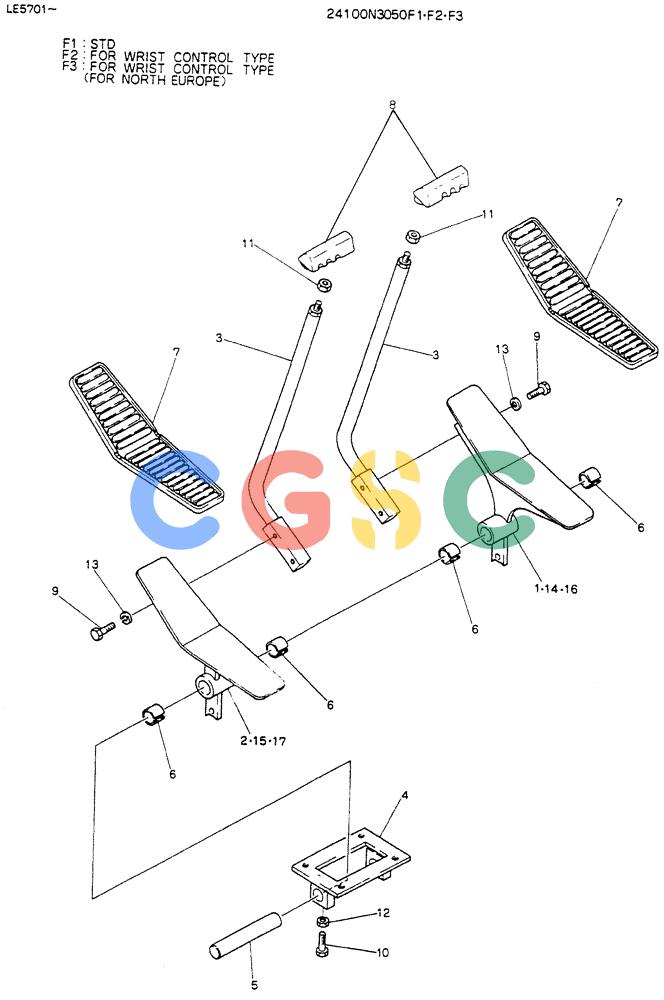

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (02-009[01]) - REMOTE CONTROL ASSY (MULTI FOR FC MODE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
511 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N30S0F1 | [1] | LEVER ASSY,CONTROL, Serial Range: LE5701--LE5970 | |
| 1. | 2406P2604D1 | [1] | PEDAL | |
| 2. | 2406P2604D2 | [1] | PEDAL | |
| 3. | 2406P2548 | [2] | LEVER CONTROL | LEVER CONTROL |
| 4. | 2416T13243 | [1] | BRACKET | |
| 5. | 2419T3305D2 | [1] | PIN | KOB |
| 6. | 2405R61D1 | [4] | BUSHING | KOB Superseded by part number: 2405U104D022020 |
| 7. | 2427R474 | [2] | COVER | KOB |
| 8. | 2406R238 | [2] | GRIP | KOB Superseded by part number: 2406R253 |
| 9. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 10. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm, Serial Range: LE5701--LE5814 |
| . . | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm, Start Serial: LE5815- |
| 11. | 2420T4479 | [2] | NUT | KOB3/8"-14UNF |
| 12. | ZN17C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 13. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | 24100N3050F2 | [1] | LEVER ASSY,CONTROL | |
| 10. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 14. | 2406P3890D1 | [1] | PEDAL | |
| 15. | 2406P3890D2 | [1] | PEDAL | |
