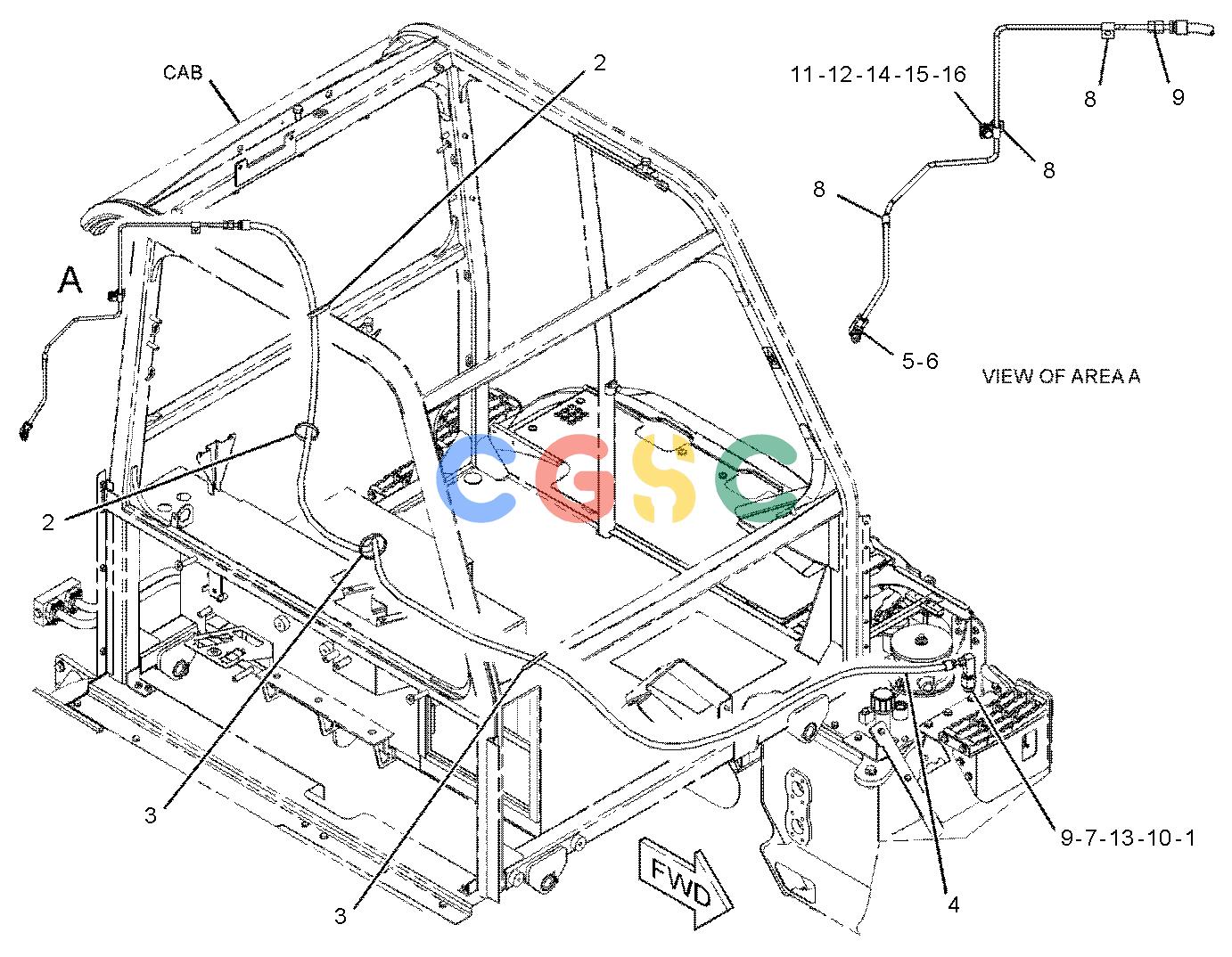

卡特零件查询（730） 355-2780: LINES GP-DRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
167 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6E-3184 | [1] | PLUG | |
| 2. | 6U-0455 | [2] | STRAP | |
| 3. | 6U-0456 | [2] | STRAP | |
| 4. | 167-1232I | [1] | HOSE AS | |
| 5. | 344-3294 | [1] | TUBE AS | |
| 6. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 7. | 3J-1907 | [1] | SEAL-O-RING | |
| 8. | 5P-9297 | [3] | CLIP(LOOP) | |
| 9. | 6V-8397 | [2] | SEAL-O-RING | |
| 10. | 7M-8485 | [1] | SEAL-O-RING | |
| 11. | 8T-1885 | [1] | CLIP(SLOT) | |
| 12. | 8T-1886 | [1] | CLIP(TAB) | |
| 13. | 8T-1905 | [1] | ELBOW | |
| 14. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 16. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
