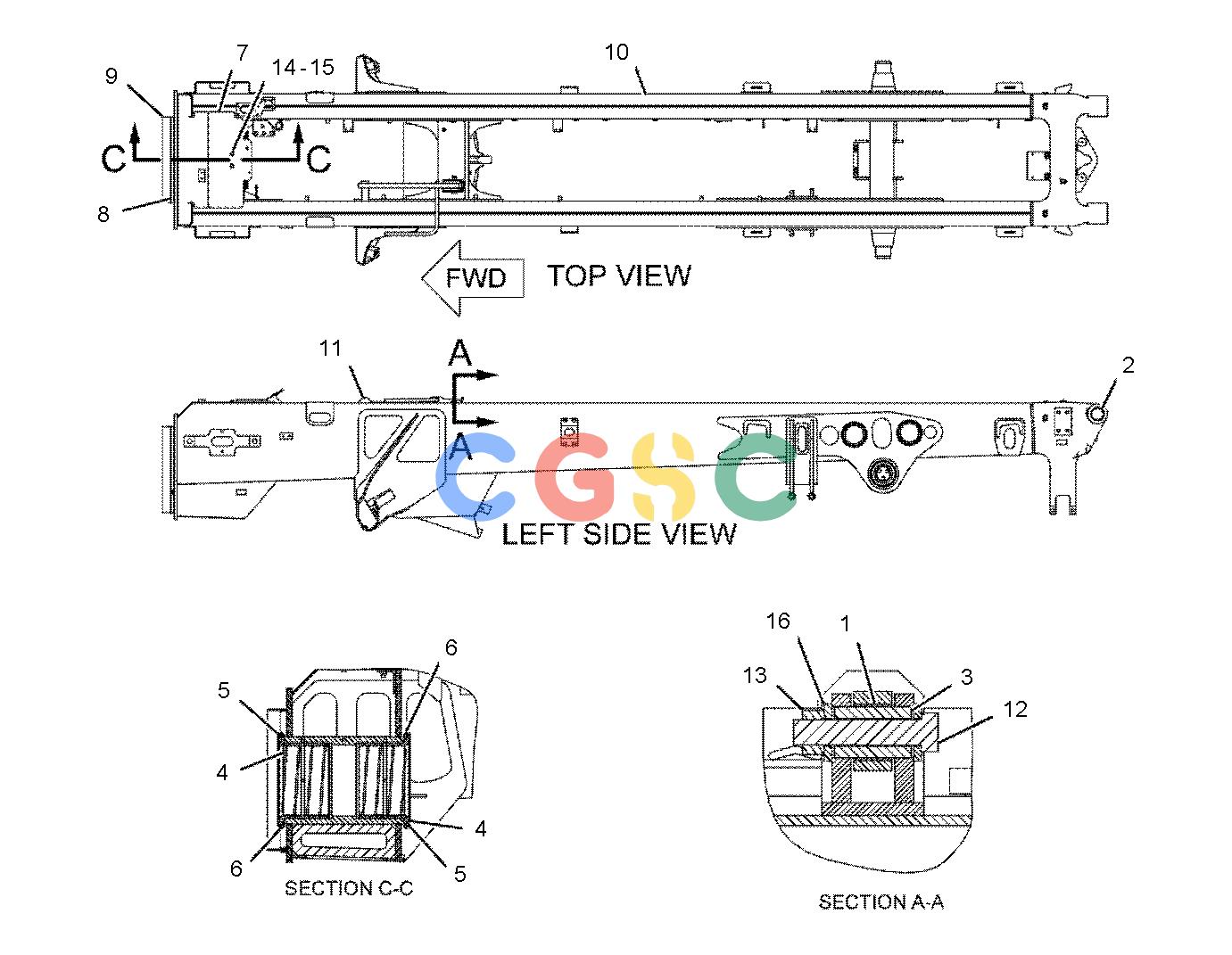

卡特零件查询（730） 207-4727: FRAME GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
917 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 113-2476 | [1] | BUSHING | |
| 2. | 142-0050 | [2] | BUSHING | |
| 3. | 148-0103 | [1] | PIN | |
| 4. | 159-5728 | [2] | BUSHING | |
| 5. | 171-4465 | [2] | SEAL | |
| 6. | 173-2479 | [2] | RING-RETAINING | |
| 7. | 176-9710 | [1] | COVER AS | |
| 8. | 189-2908 | [1] | CLAMP AS-BAND | |
| 9. | 189-2909 | [1] | DEFLECTOR | |
| 10. | 207-4728 | [1] | FRAME AS | |
| 11. | 206-6153 | [1] | PLATE AS | |
| 12. | 7X-2565M | [1] | BOLT(M20X2.5X100-MM) | |
| 13. | 8T-4131M | [1] | NUT(M20X2.5-THD) | |
| 14. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 15. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-5439 | [2] | WASHER-HARD(21.5X45X6-MM THK) | |
| | M | | METRIC PART |
